System Specifications

SERVICE SPECIFICATIONS: 1GR-FE ENGINE MECHANICAL: SERVICE DATA

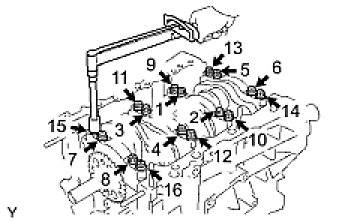

MAIN BEARING CAP





Torque: 61 Nm (622 kgf-cm, 45 ft-lbf)

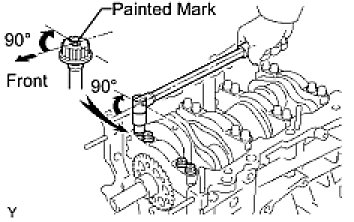

Retighten the bearing cap bolts 90° in the sequence as shown.
Check that the painted mark is now at a 90° angle to the front.

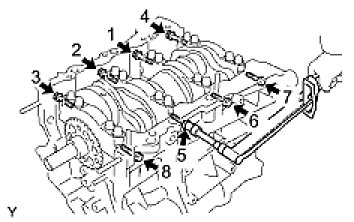

Install the 8 main bearing cap bolts. Using several steps, tighten the bolts uniformly in the sequence as shown in the illustration.

Torque: 26 Nm (262 kgf-cm, 19 ft-lbf)

CRANKSHAFT PULLEY
Torque: 250 Nm (2,549 kgf-cm, 184 ft-lbf)
