TIMING CHAIN OR BELT COVER
Install the timing chain cover with the 15 bolts and 2 nuts. Tighten the bolts and nuts uniformly in several steps.
Torque: 23 Nm (235 kgf-cm, 17 ft-lbf)

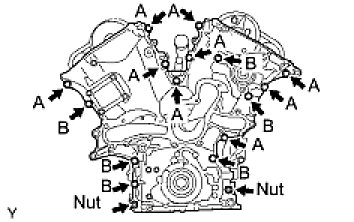

HINT: Each bolt length is as follows:
A: 25 mm (0.98 in.)
B: 55 mm (2.17 in.)
NO. 1 CHAIN TENSIONER
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)
NO. 2 CHAIN TENSIONER
Torque: 19 Nm (194 kgf-cm, 14 ft-lbf)
NO. 3 CHAIN TENSIONER
Torque: 19 Nm (194 kgf-cm, 14 ft-lbf)
CRANKSHAFT PULLEY
Torque: 250 Nm (2,549 kgf-cm, 184 ft-lbf)
