Flex Plate

DRIVE PLATE & RING GEAR SUB-ASSEMBLY

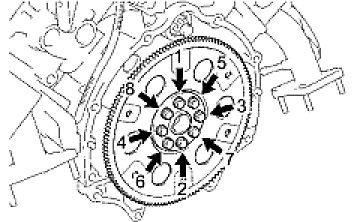

Install and uniformly tighten the 8 mounting bolts in several steps, in the order shown in the illustration.

Torque: 30 Nm (301 kgf-cm, 22 ft-lbf)

If any one of the mounting bolts does not meet the torque specification, replace the mounting bolt.





Mark the mounting bolt with paint (Procedure "A").

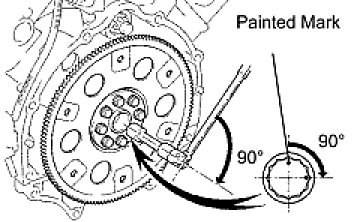

Retighten the mounting bolts by 90° in the order shown.
Check that the painted mark is now at a 90° angle to the mark placed in procedure "A".
