Removal

CRUISE CONTROL MAIN SWITCH: REMOVAL

CRUISE CONTROL MAIN SWITCH: REMOVAL

1. DISCONNECT BATTERY NEGATIVE TERMINAL
HINT: Service Precautions.

2. REMOVE STEERING WHEEL COVER LOWER NO. 2
3. REMOVE STEERING WHEEL COVER LOWER NO. 3
4. REMOVE STEERING PAD Removal

5. REMOVE CRUISE CONTROL MAIN SWITCH

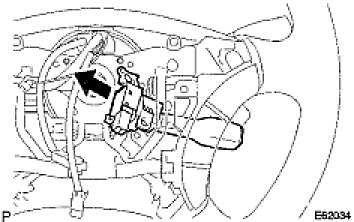

(a) Disconnect the connector.

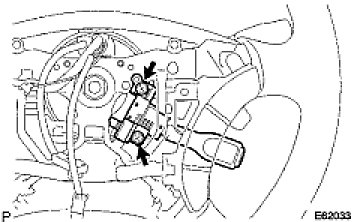

(b) Remove the 2 screws and cruise control main switch.
