Service Data
SERVICE SPECIFICATIONS: VF4BM TRANSFER: SERVICE DATA
SERVICE SPECIFICATIONS: VF4BM TRANSFER: SERVICE DATA

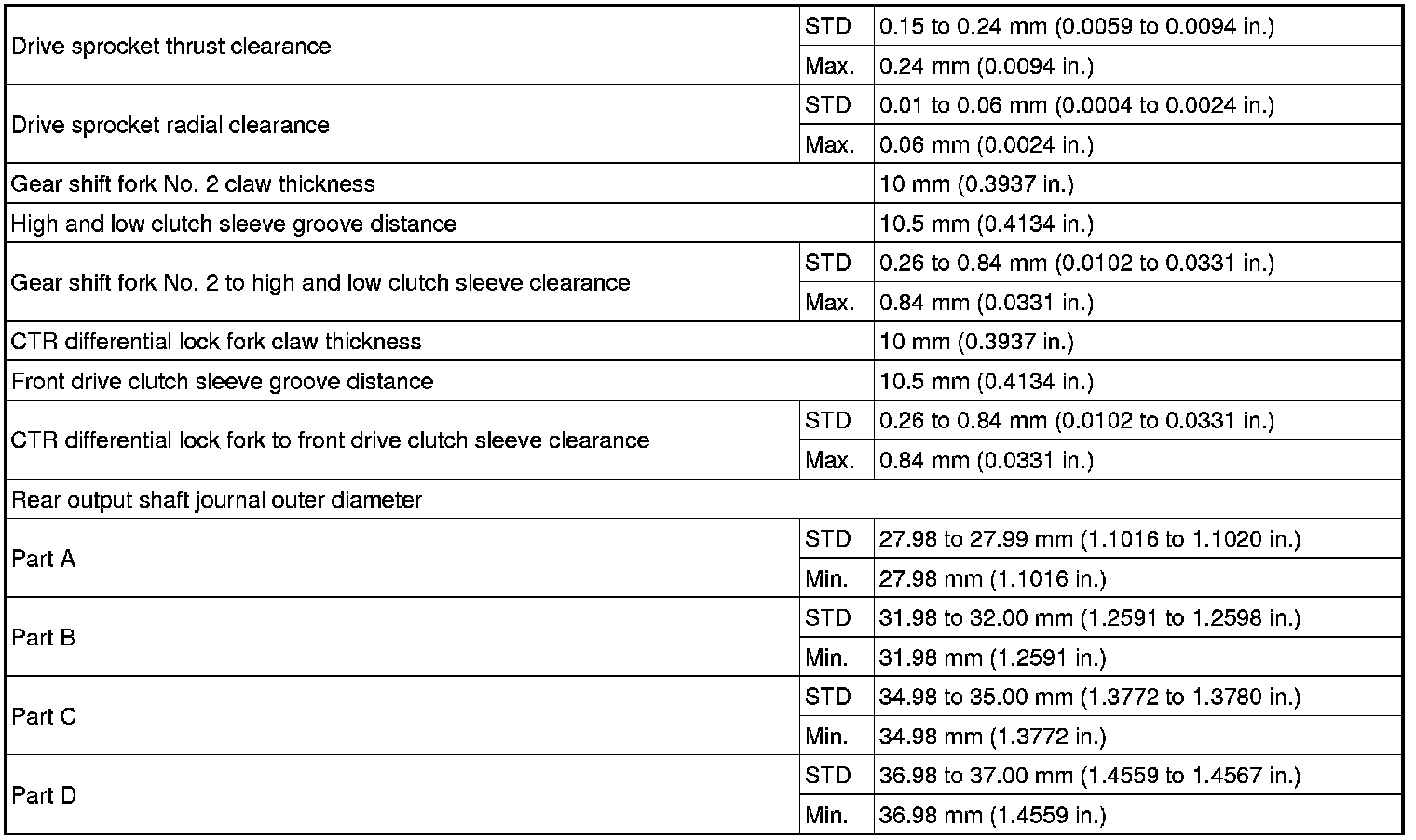

Output shaft rear

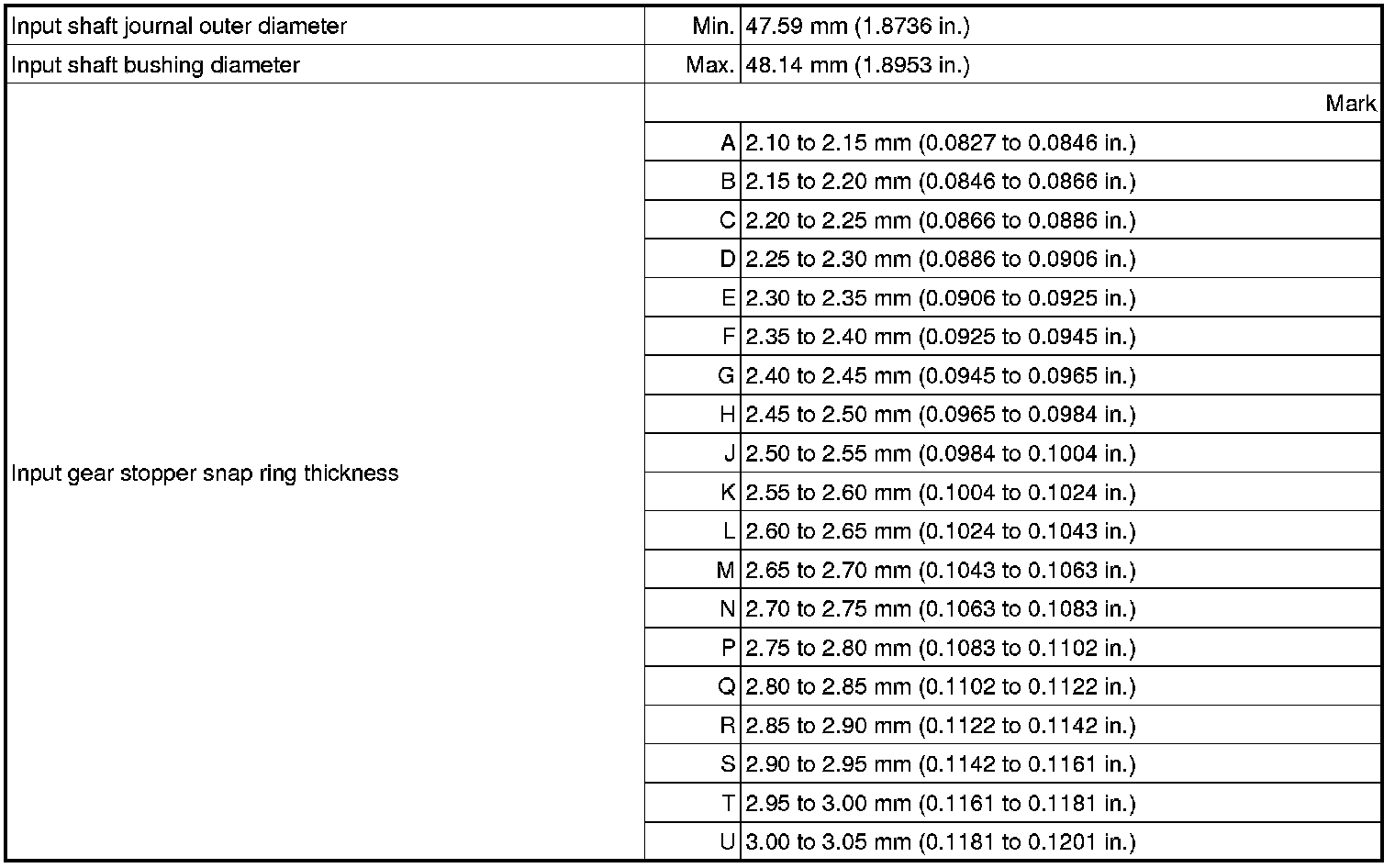

Input shaft
Planetary gear
SERVICE SPECIFICATIONS: VF4BM TRANSFER: SERVICE DATA
SERVICE SPECIFICATIONS: VF4BM TRANSFER: SERVICE DATA
Output shaft rear
Input shaft
Planetary gear
