Components

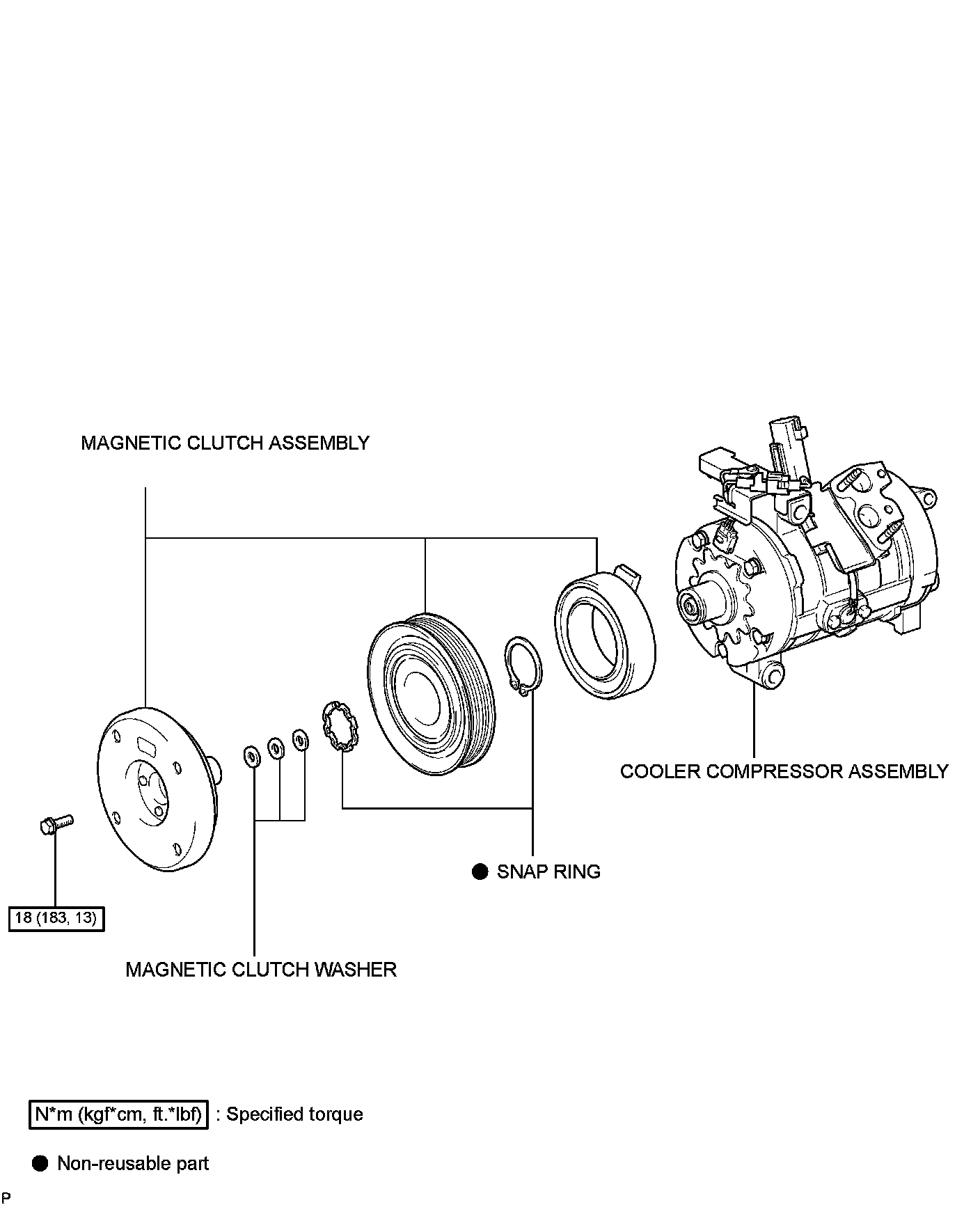

AIR CONDITIONING: COMPRESSOR AND MAGNETIC CLUTCH (for 2UZ-FE): COMPONENTS

AIR CONDITIONING: COMPRESSOR AND MAGNETIC CLUTCH
