Home >> Toyota >> 2008 >> 4 Runner 4WD V8-4.7L (2UZ-FE) >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Locations

Transmission Control Systems: Locations

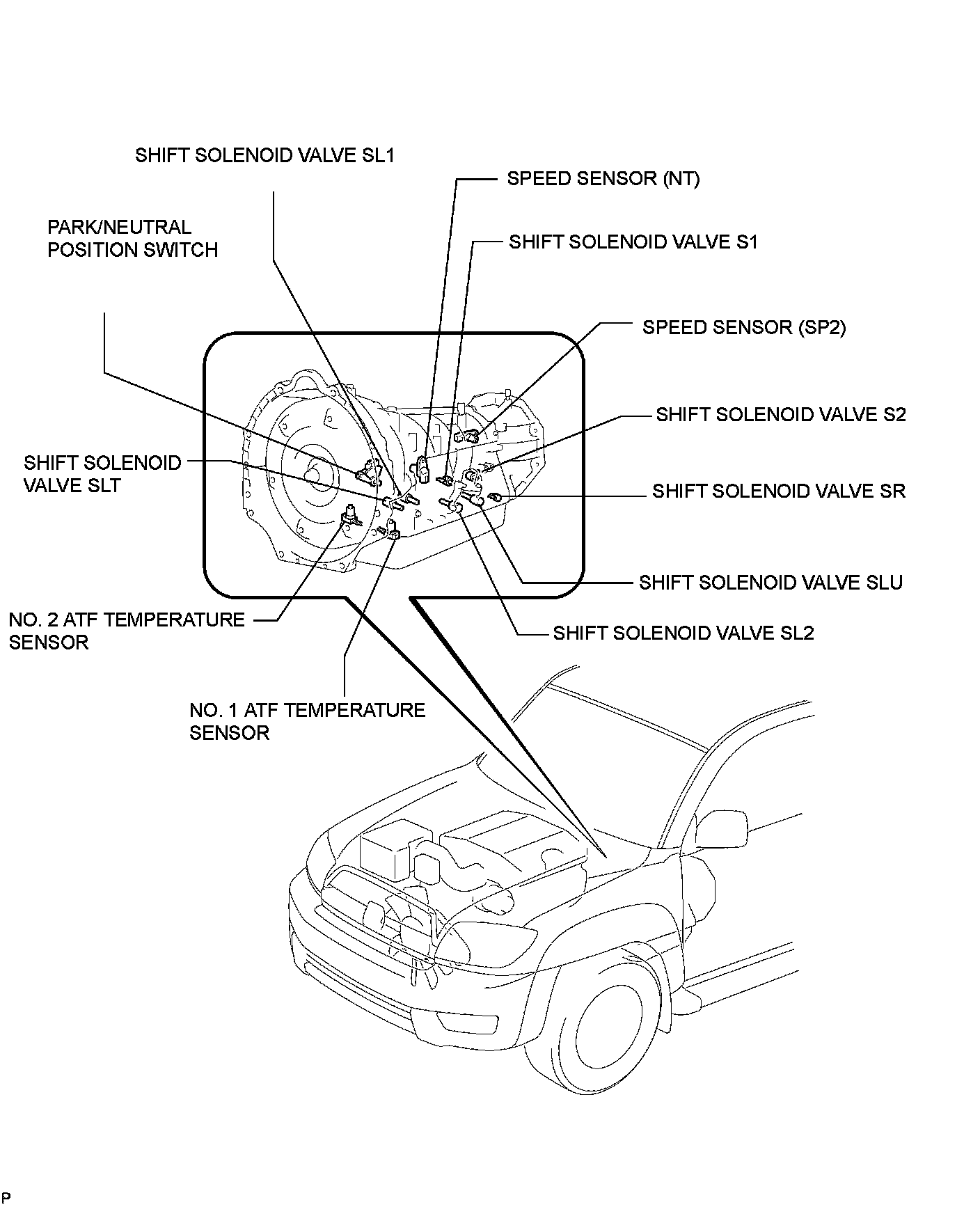

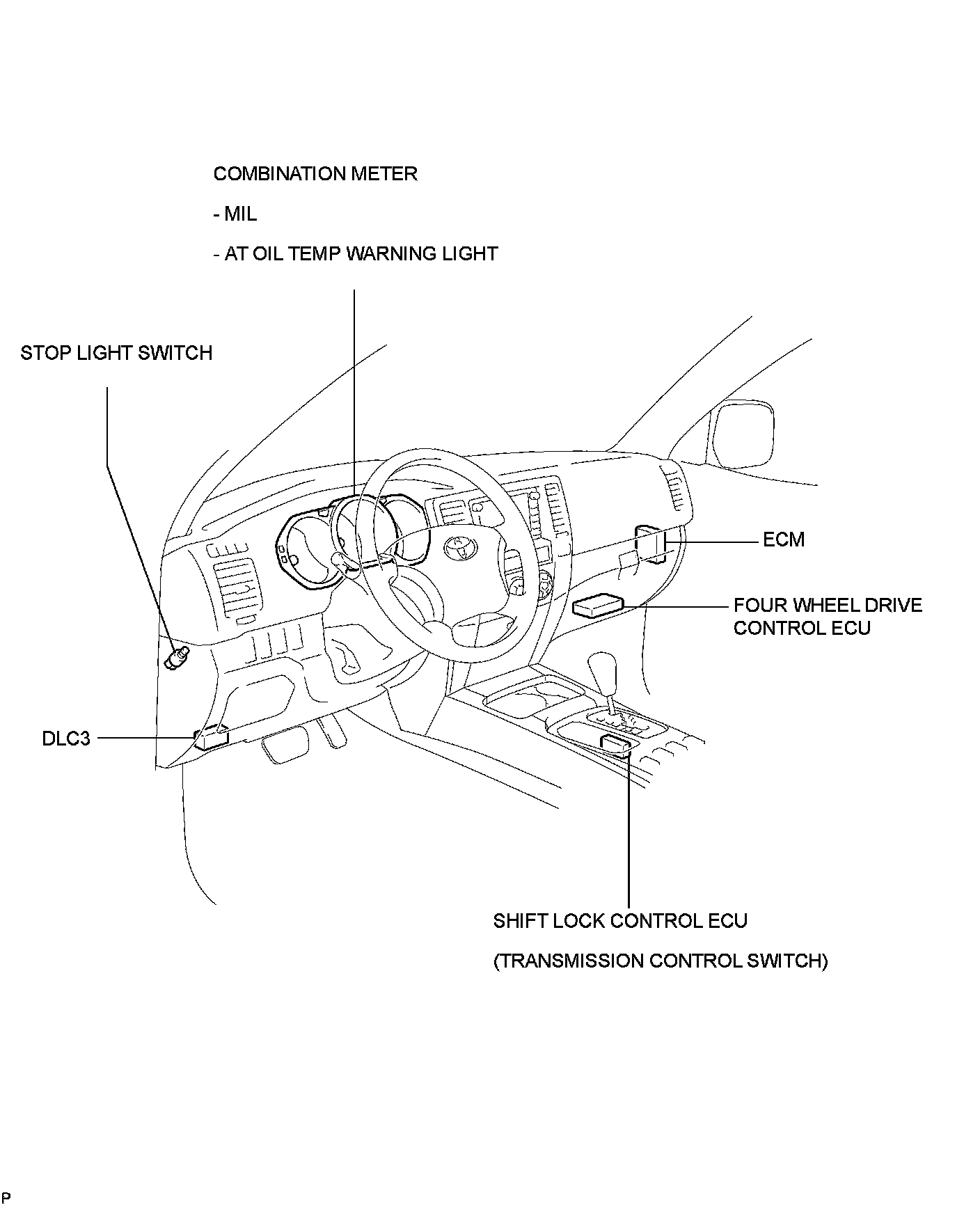

A750F AUTOMATIC TRANSMISSION SYSTEM (for 2UZ-FE): PARTS LOCATION
