Service Data









SERVICE SPECIFICATIONS: DIFFERENTIAL: SERVICE DATA

SERVICE SPECIFICATIONS: DIFFERENTIAL: SERVICE DATA

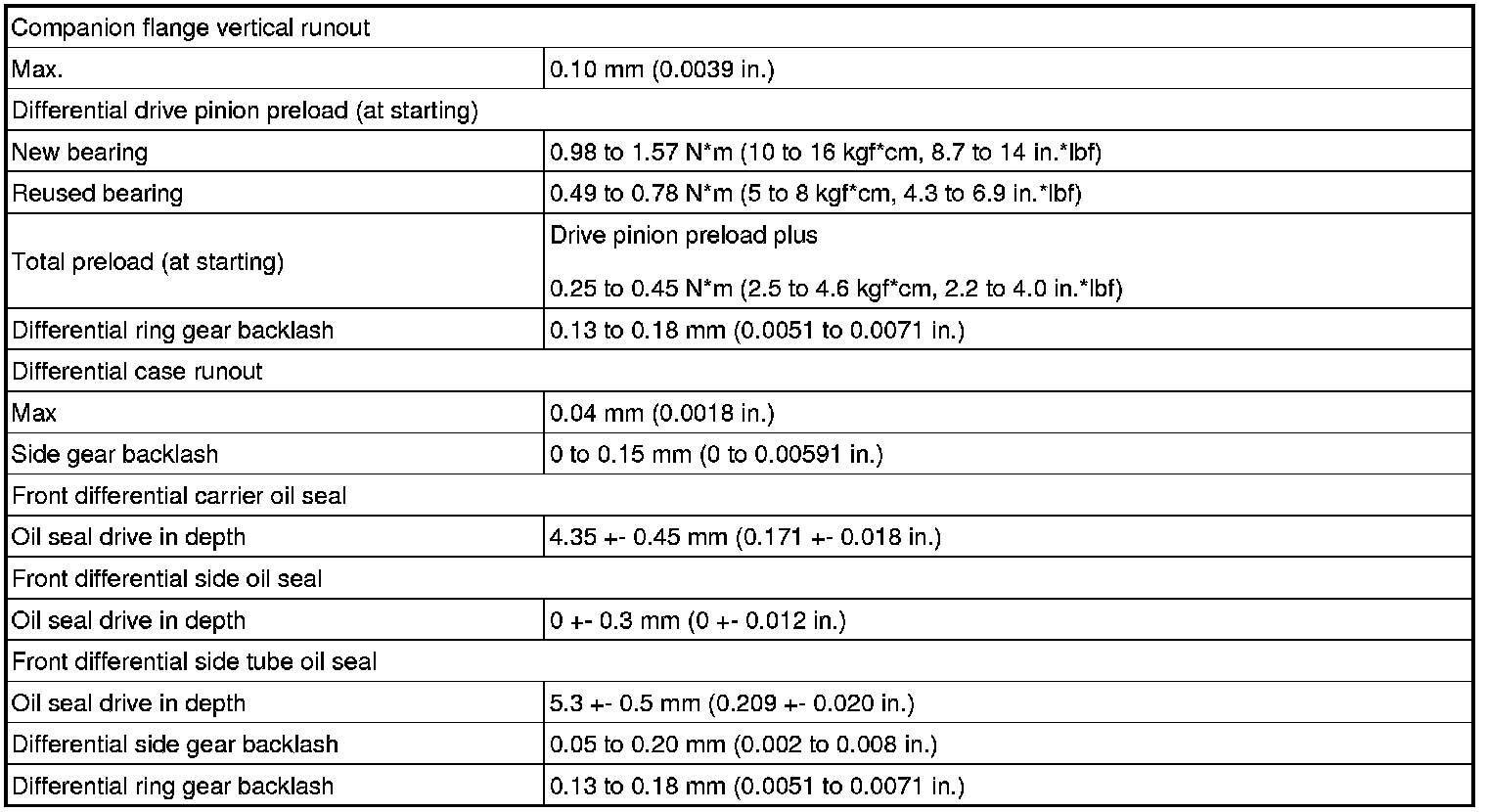

Differential carrier assembly front (1GR-FE (4WD))

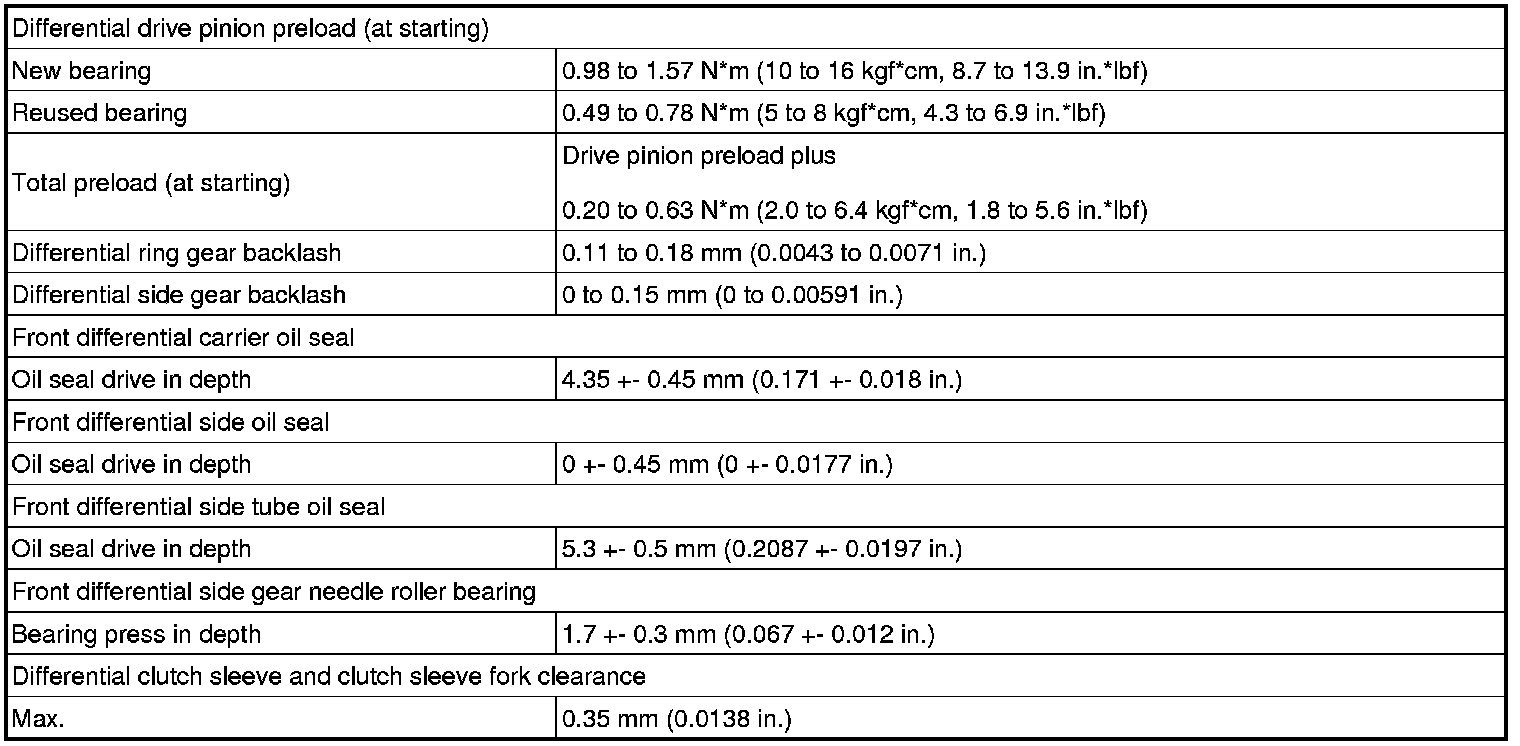

Differential carrier assembly front (2UZ-FE (4WD))

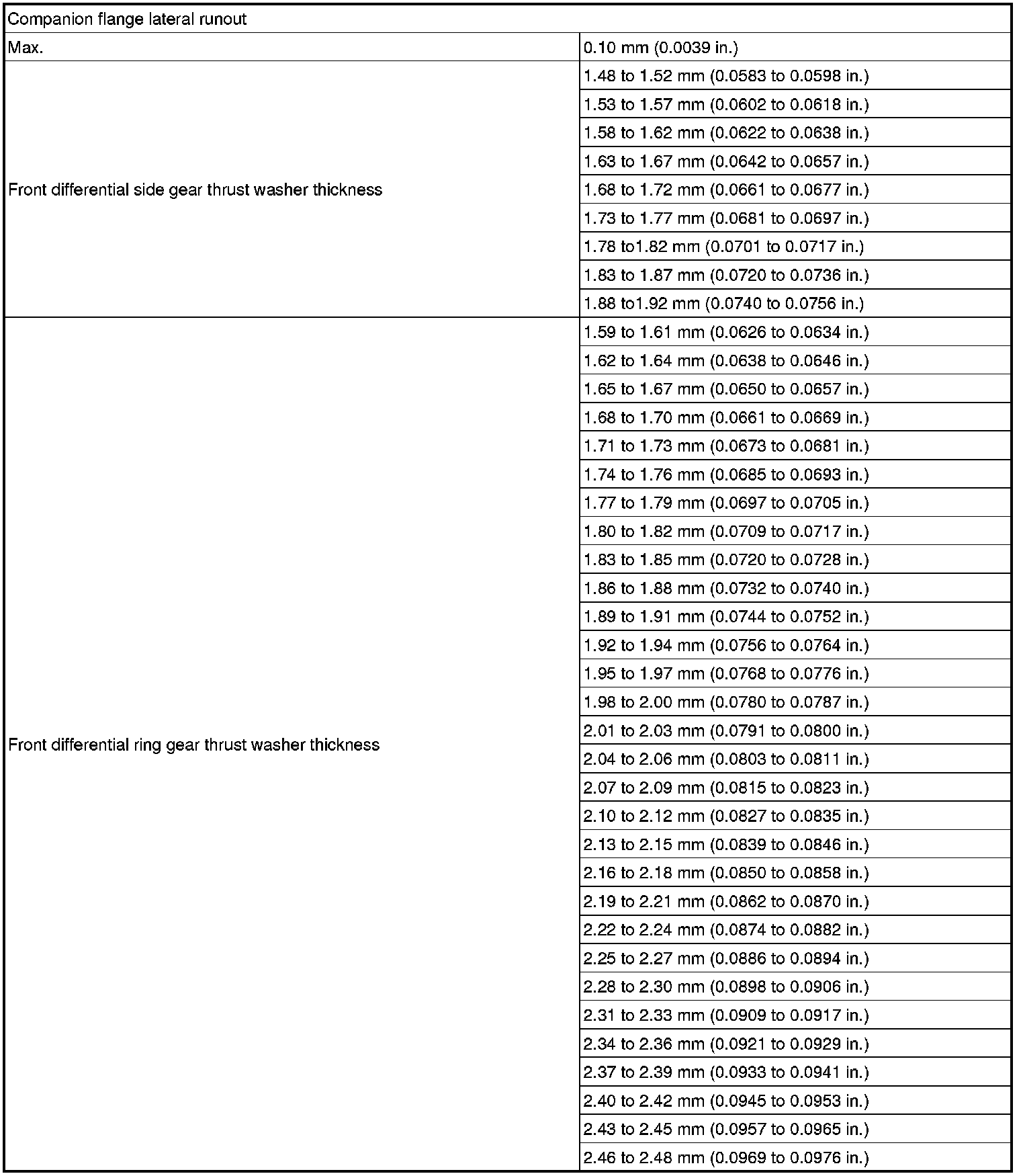

Differential carrier assembly front (4WD)

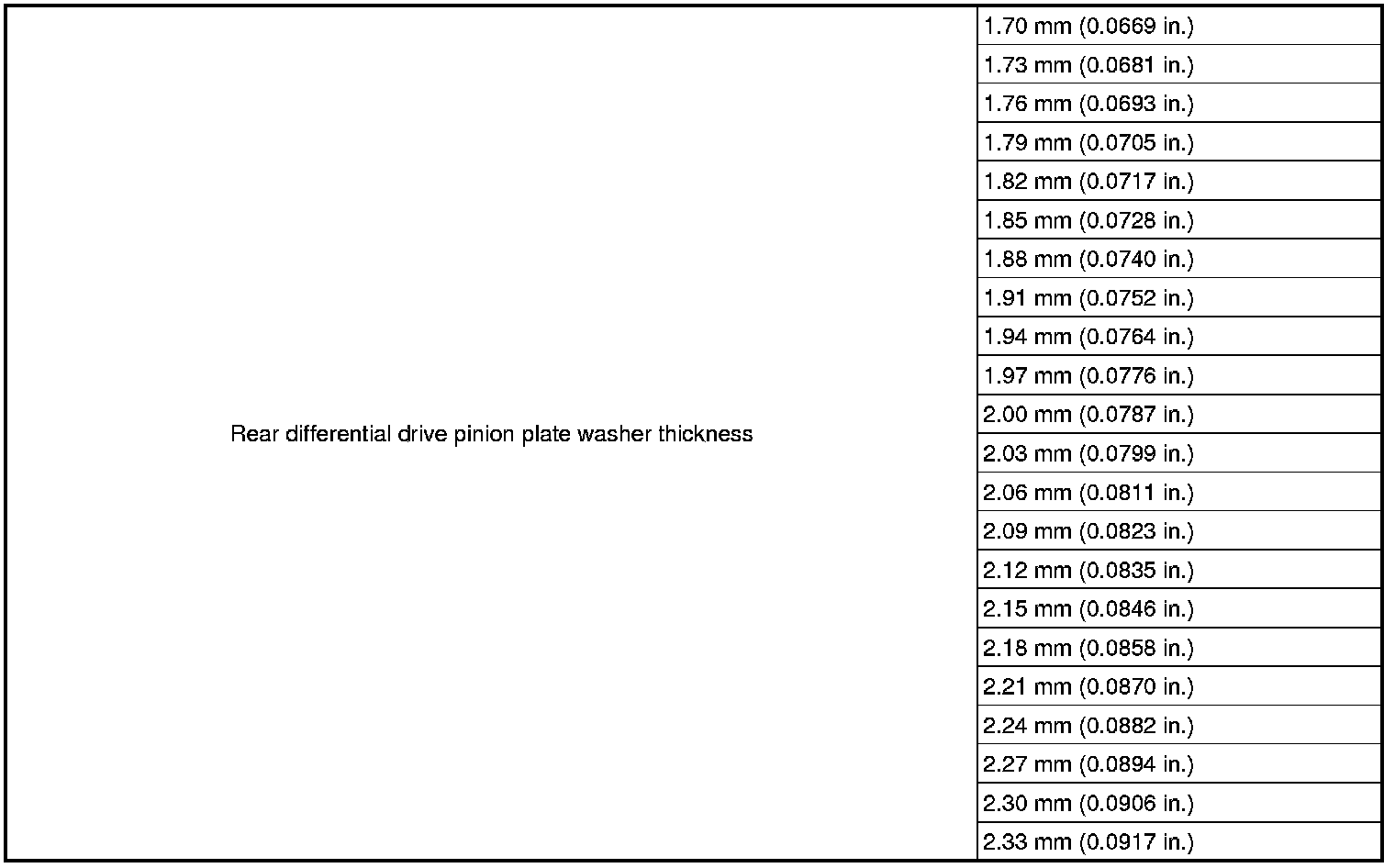

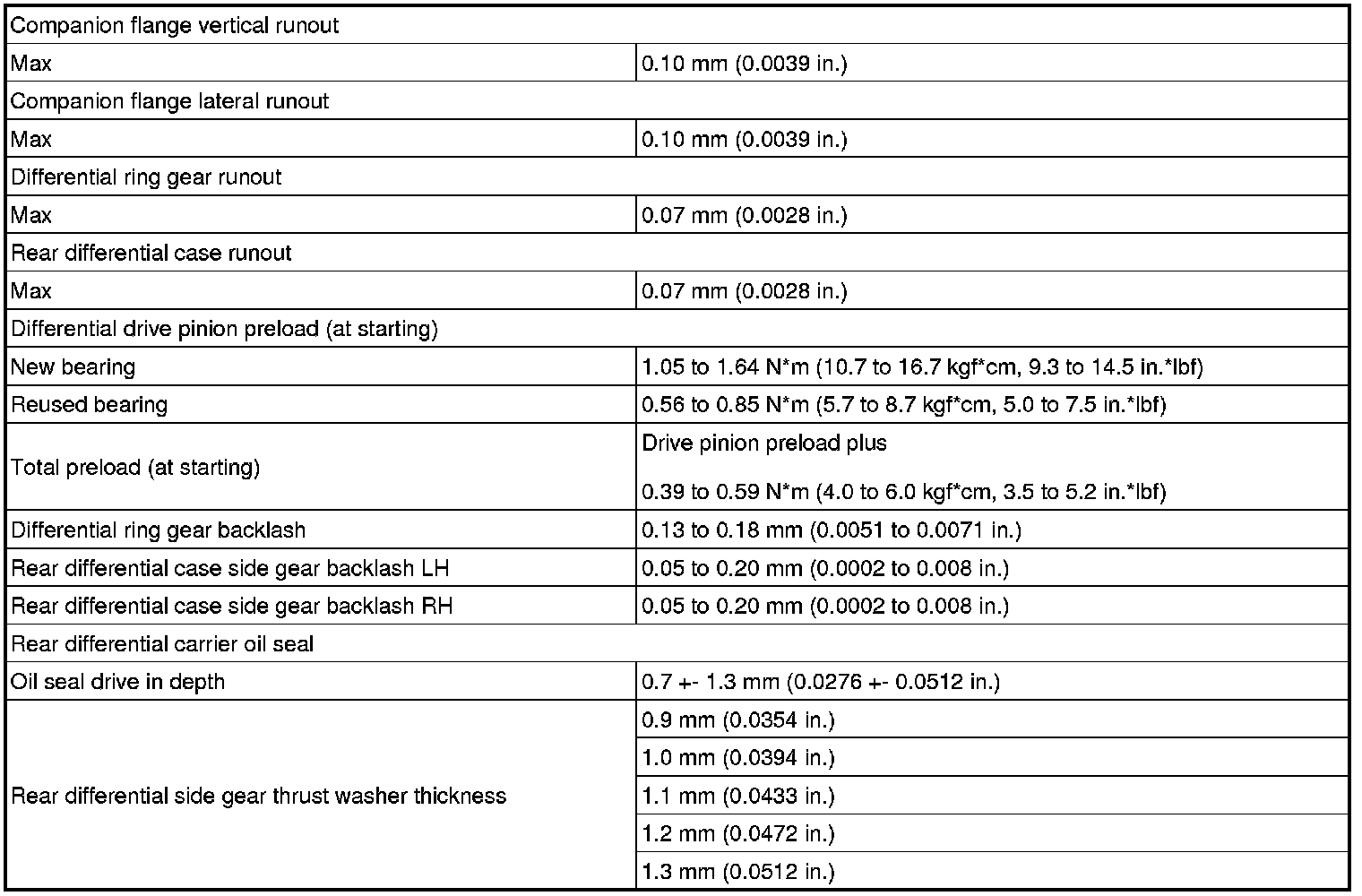

Differential carrier assembly rear

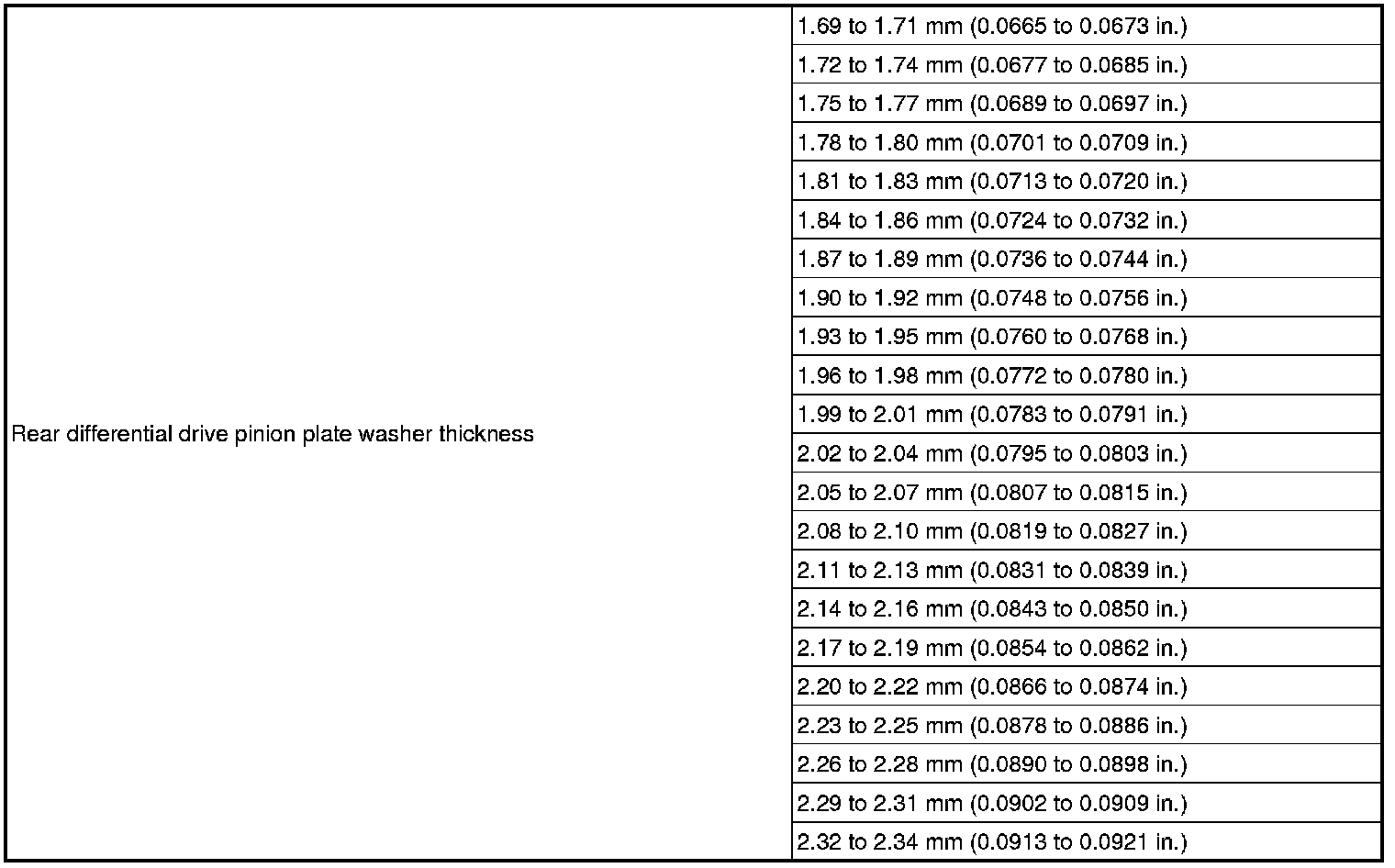

Differential carrier assembly rear
