System Specifications

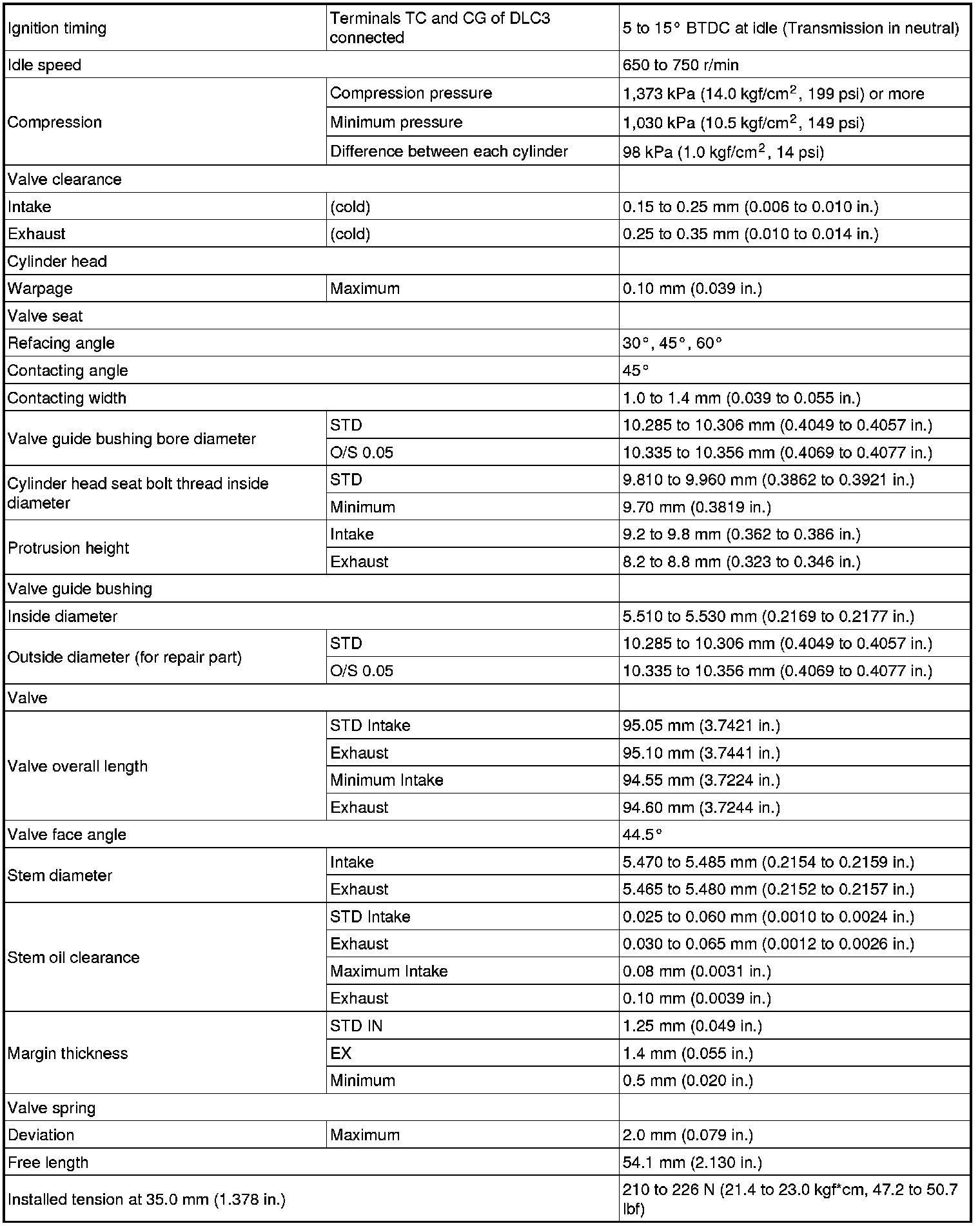

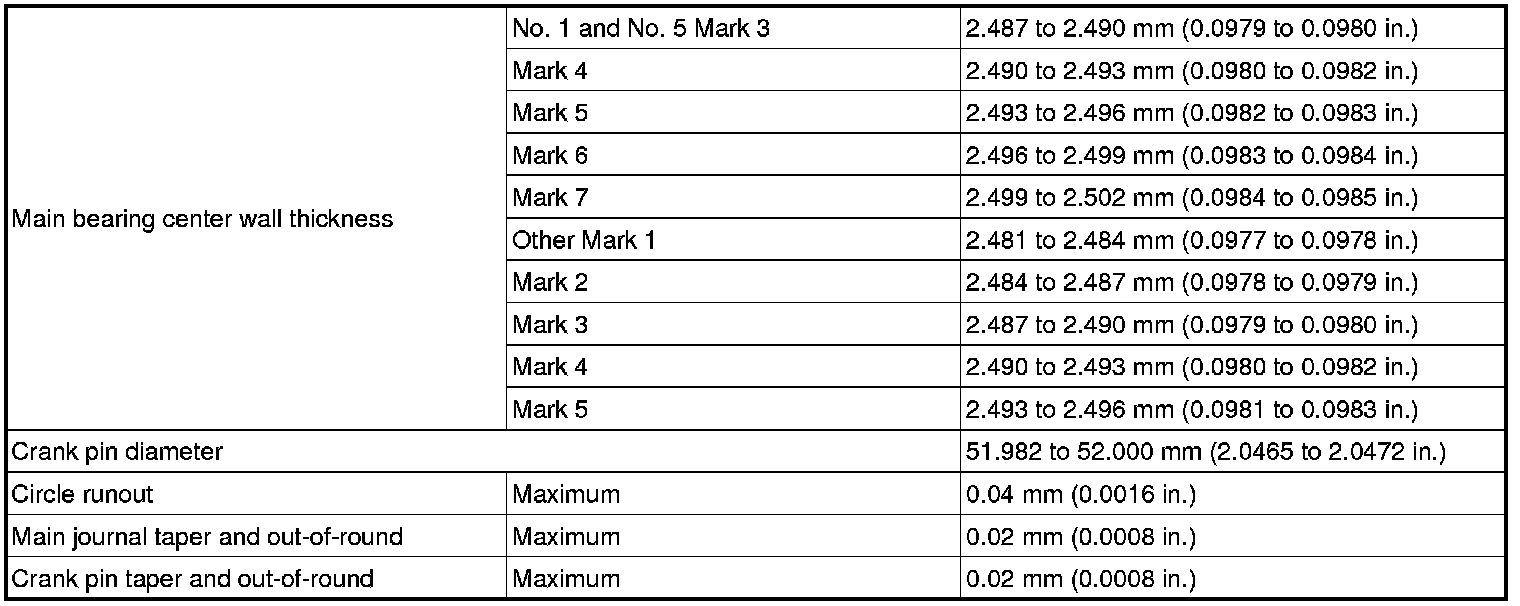

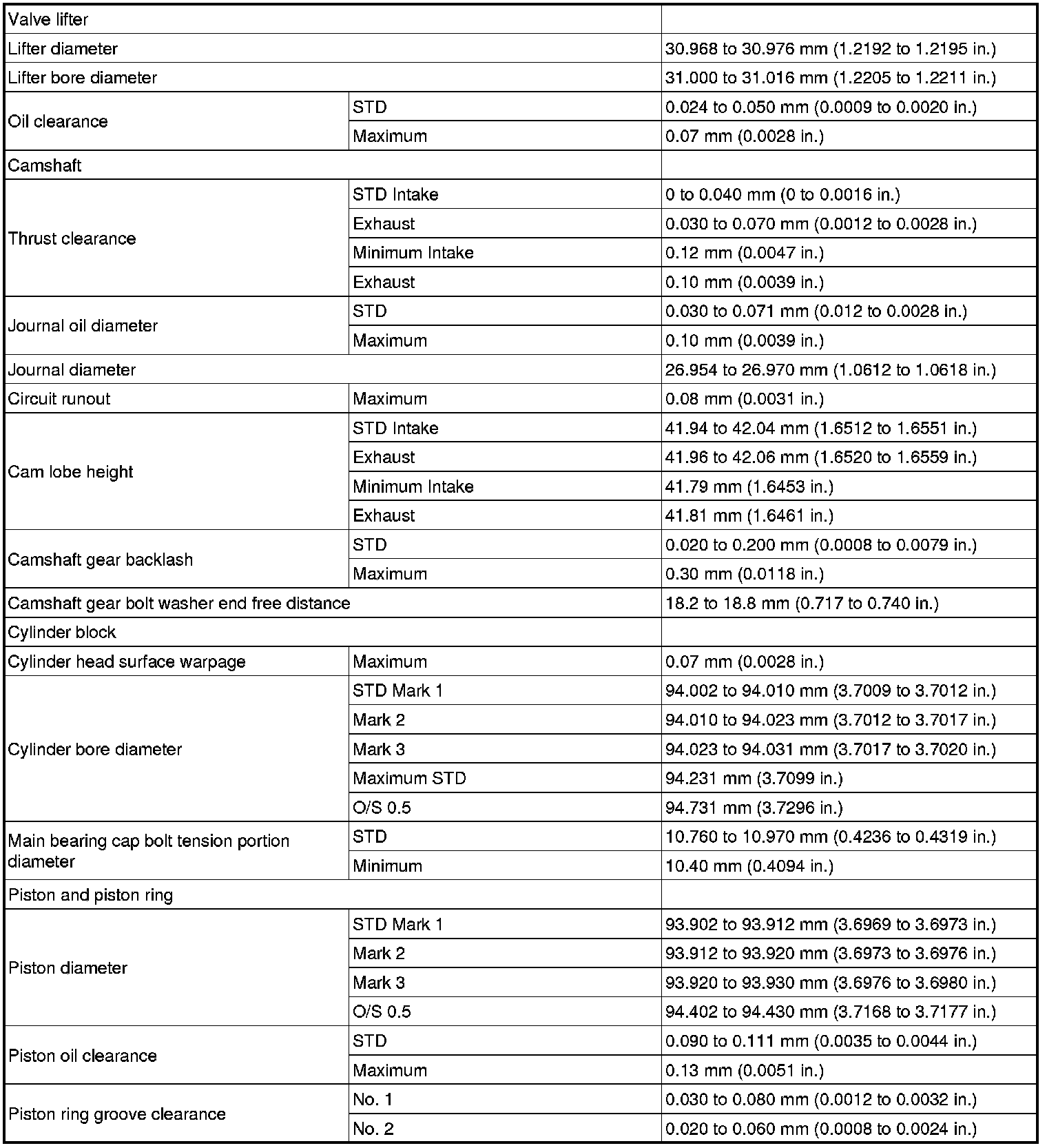

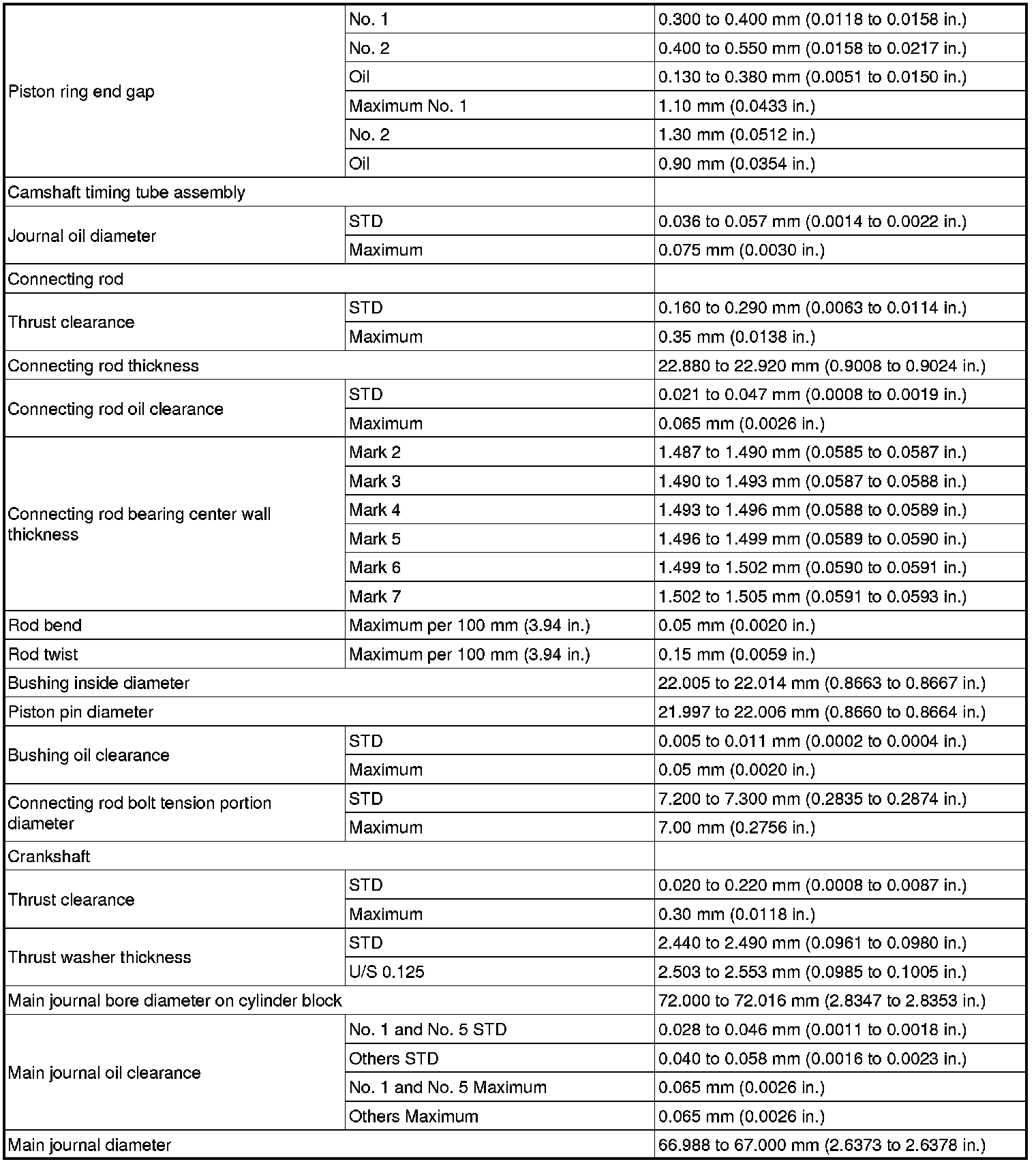

SERVICE SPECIFICATIONS: 2UZ-FE ENGINE MECHANICAL: SERVICE DATA


















MAIN BEARING CAP





Torque: 27 Nm (275 kgf-cm, 20 ft-lbf)

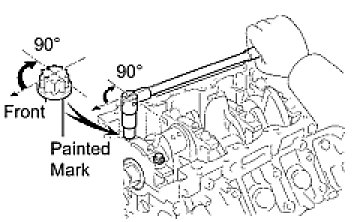

Mark the front of the crankshaft bearing cap bolts with paint.
Retighten the crankshaft bearing cap bolts by 90° in the order shown.
Check that the painted mark is now at a 90° angle to the front.

CRANKSHAFT DAMPER SUB-ASSEMBLY

Torque: 245 Nm (2,498 kgf-cm, 181 ft-lbf)
