AUDIO / VISUAL: NETWORK GATEWAY ECU: REMOVAL

REMOVAL

1. TABLE OF BOLT, SCREW AND NUT Removal

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
Wait for 90 seconds after disconnecting the cable to prevent the airbag working.
3. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY (w/ Front Passenger Airbag)
HINT: Refer to the procedures up to the removal of the instrument panel safety pad sub-assembly (w/ front passenger airbag)
Removal.

4. REMOVE NETWORK GATEWAY ECU






(a) Disconnect the connector.
(b) Disengage the 2 claw and remove the ECU aggregation cover No. 1.

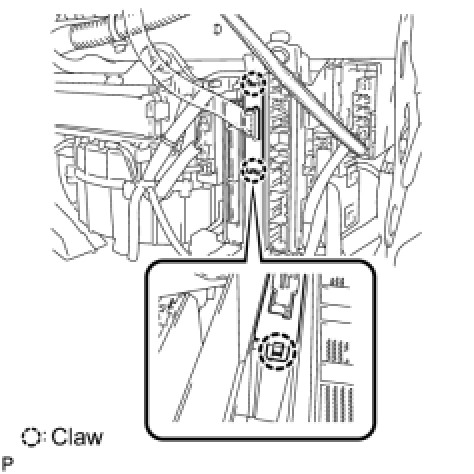

(c) Remove the network gateway ECU assembly as shown in the illustration.
