Memory Positioning Switch: Testing and Inspection
SEAT: SEAT MEMORY SWITCH (w/ Memory): INSPECTIONINSPECTION 1.

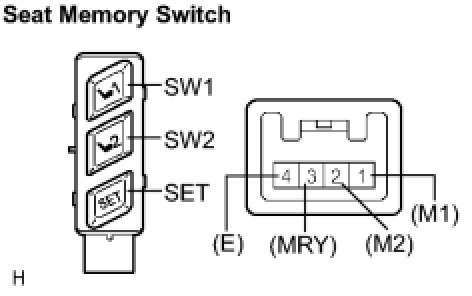

INSPECT SEAT MEMORY SWITCH
(a)

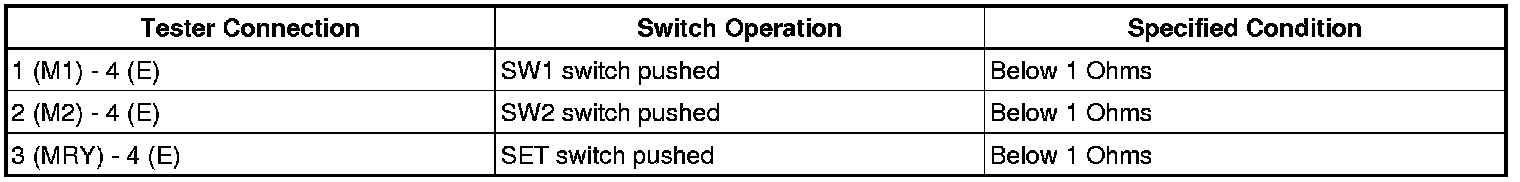

Measure the resistance between the terminals when each switch is operated.
Resistance: If the result is not as specified, replace the switch.
