Removal

CRUISE CONTROL MAIN SWITCH: REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait for 90 seconds after disconnecting the cable to prevent the airbag working
Service Precautions.

2. REMOVE STEERING WHEEL NO. 3 COVER LOWER Removal

3. REMOVE STEERING WHEEL NO. 2 COVER LOWER Removal

4. REMOVE STEERING PAD Removal

5. REMOVE CRUISE CONTROL MAIN SWITCH

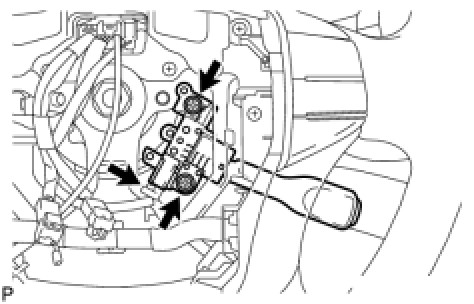

(a) Disconnect the connector.
(b) Remove the 2 screws.

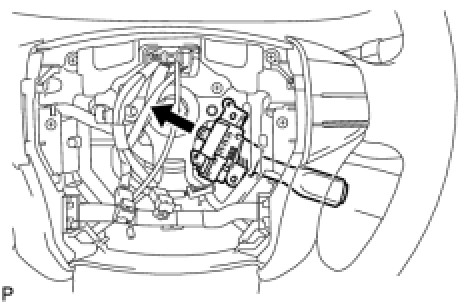

(c) Pull out the cruise control main switch assembly in the direction shown by the arrow in the illustration.
