Removal

CRUISE CONTROL: LASER SENSOR: REMOVAL

REMOVAL

1. REMOVE COOL AIR INTAKE DUCT SEAL Removal

2. REMOVE RADIATOR GRILLE SUB-ASSEMBLY Removal

3. REMOVE FRONT BUMPER ASSEMBLY (w/o Fog Light) Removal

4. REMOVE FRONT BUMPER ASSEMBLY (w/ Fog Light) Removal

5. REMOVE FRONT BUMPER ENERGY ABSORBER Removal

6. REMOVE FRONT BUMPER REINFORCEMENT Removal

7. REMOVE LASER SENSOR
(a) Disconnect the connector.

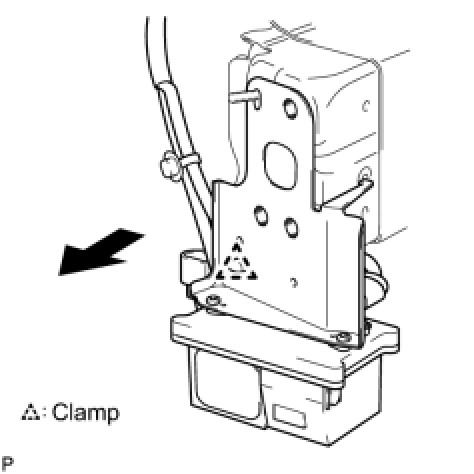

(b) Disengage the clamp, then remove the laser sensor.
