Dynamic Laser Cruise Control System
Dynamic Laser Cruise Control System

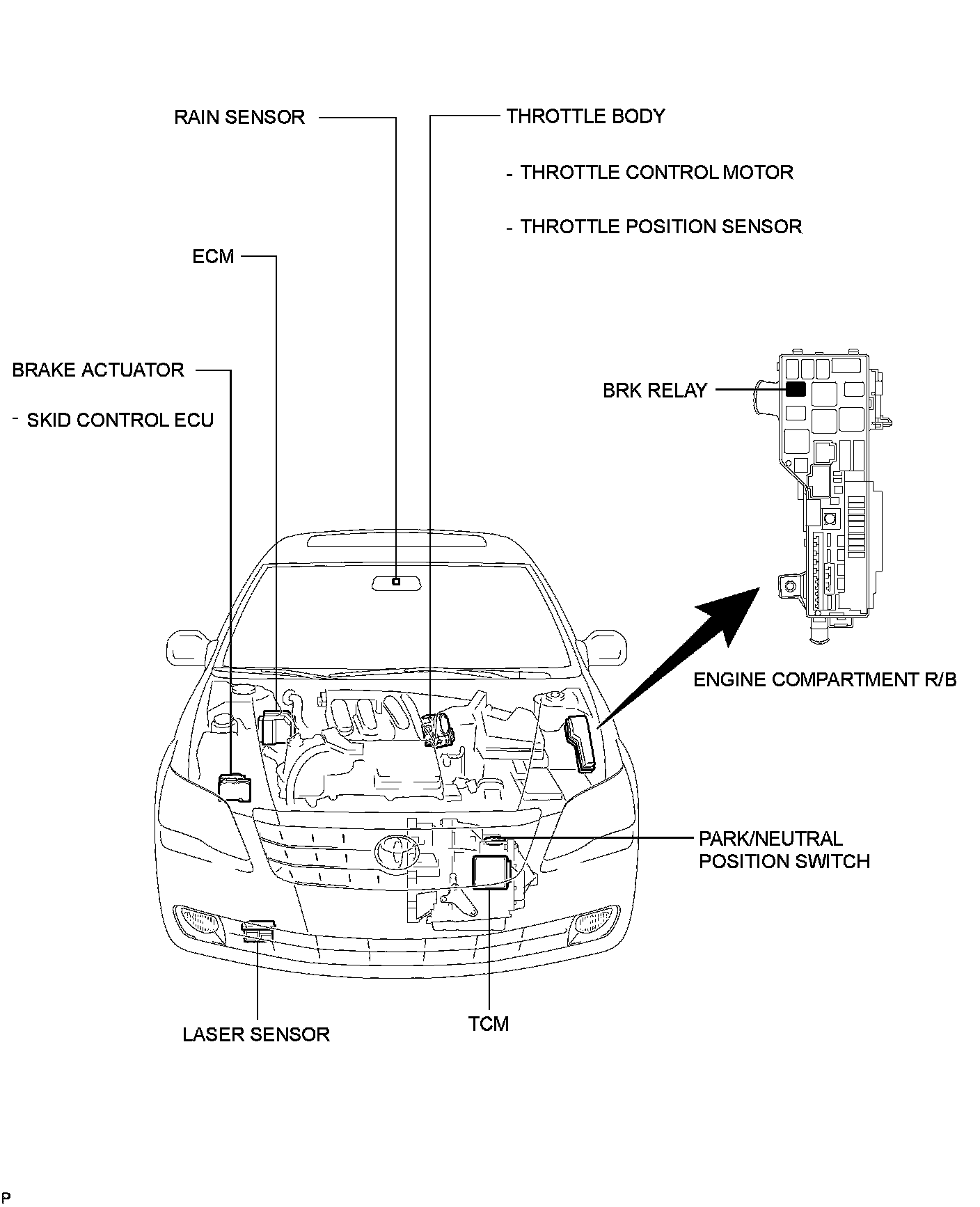

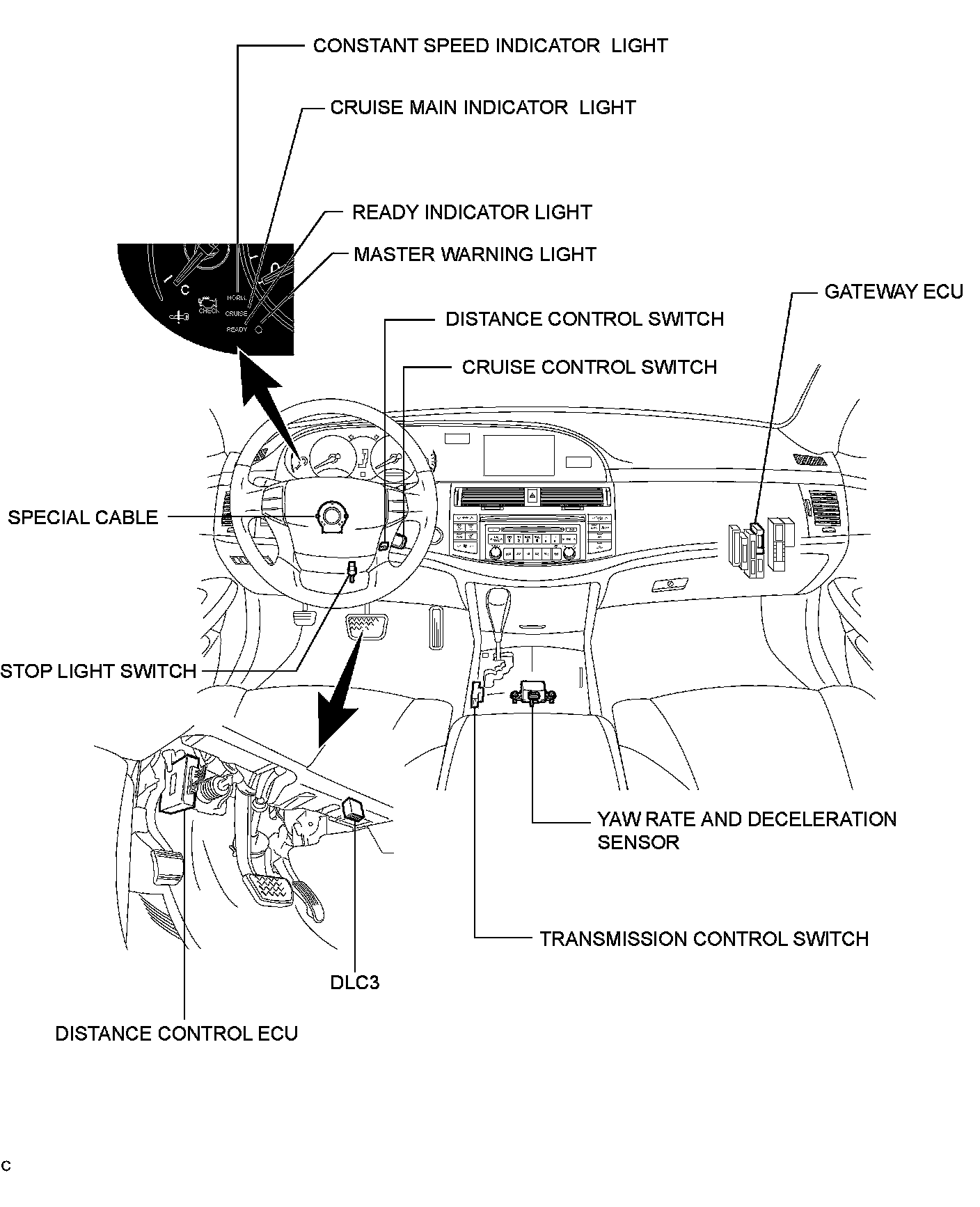

CRUISE CONTROL: DYNAMIC LASER CRUISE CONTROL SYSTEM: PARTS LOCATION
PARTS LOCATION
ILLUSTRATION
