System Diagram

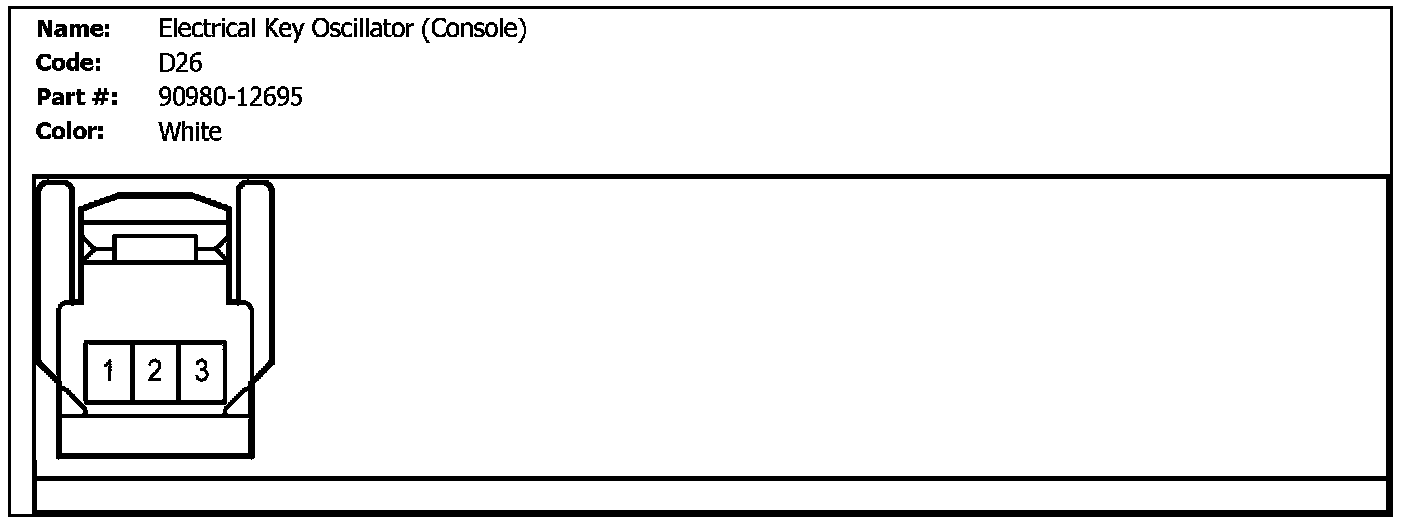

D26 (Electrical Key Oscillator (Console)):

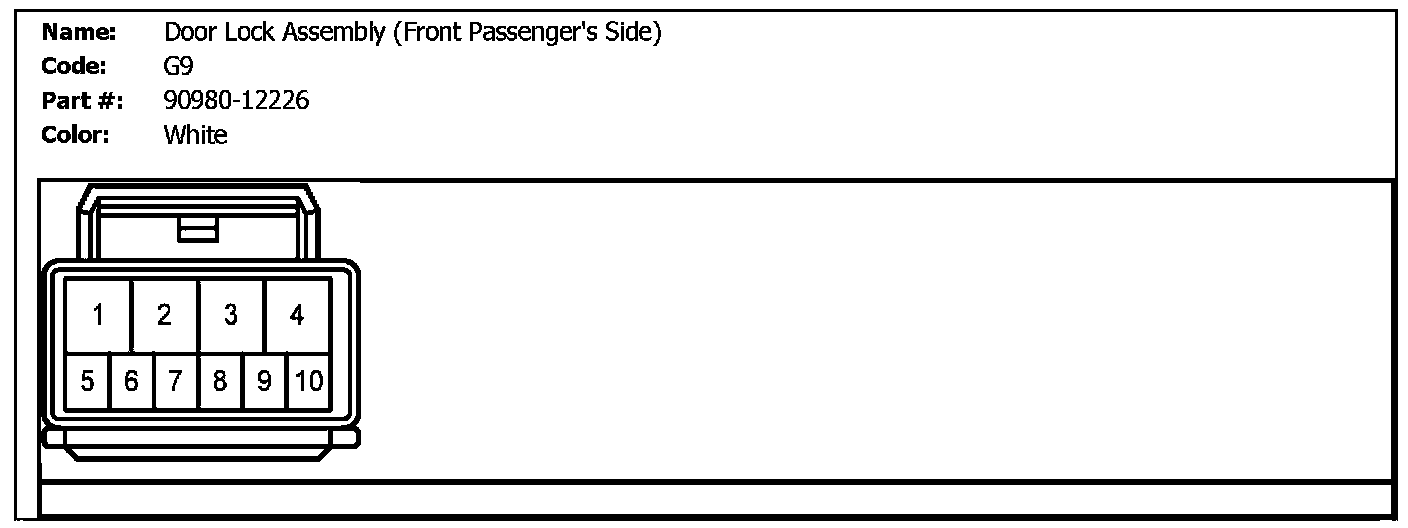

G9 (Door Lock Assembly (Front Passenger's Side)):

H9 (Door Lock Assembly (Driver's Side)):

I5 (Door Lock Assembly (Rear RH)):

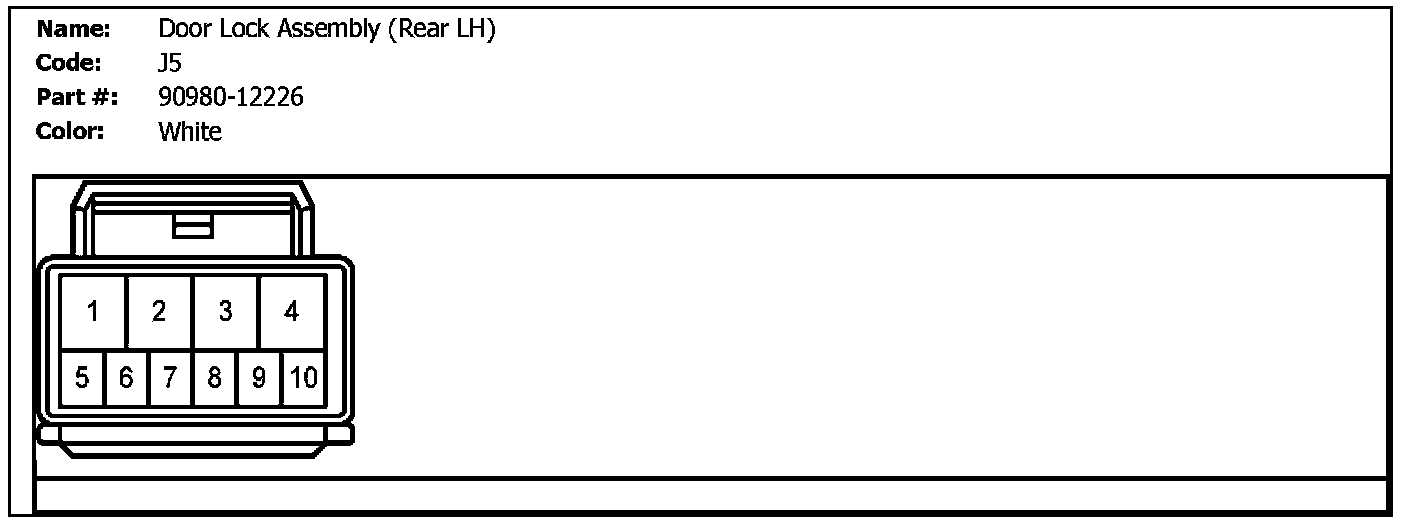

J5 (Door Lock Assembly (Rear LH)):

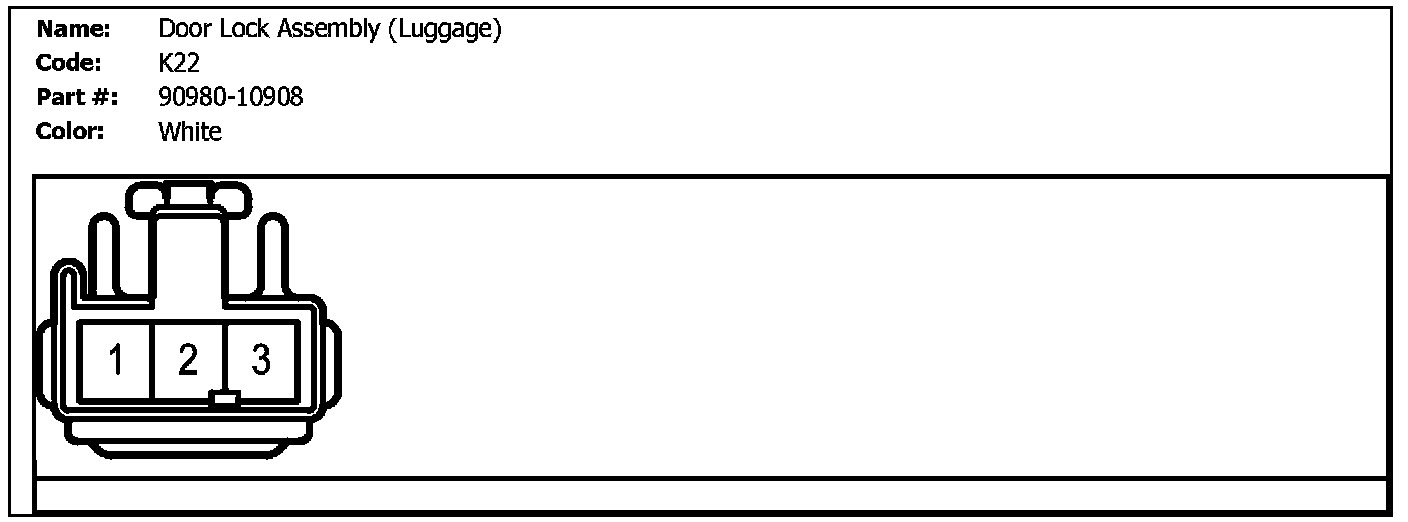

K22 (Door Lock Assembly (Luggage)):

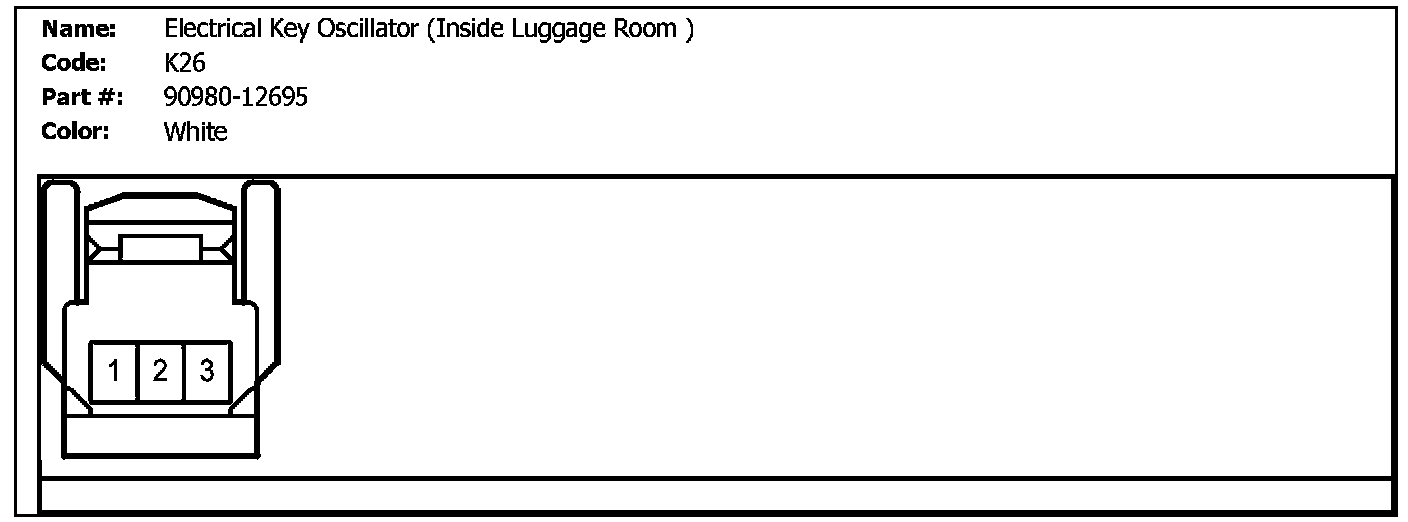

K26 (Electrical Key Oscillator (Inside Luggage Room)):

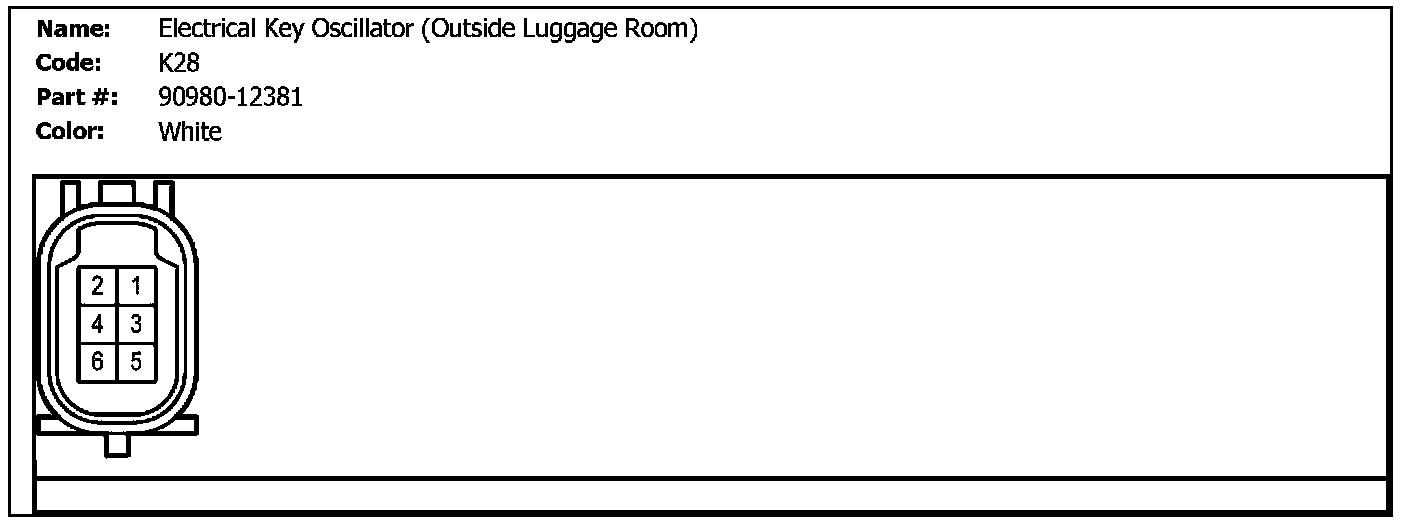

K28 (Electrical Key Oscillator (Outside Luggage Room)):

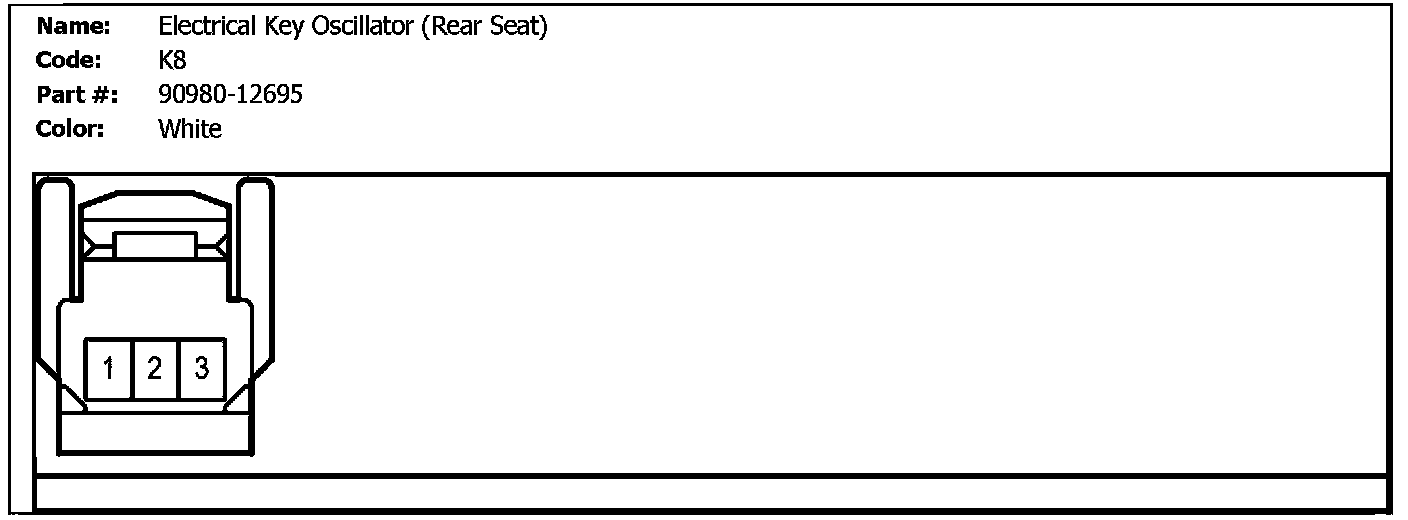

K8 (Electrical Key Oscillator (Rear Seat)):

L21 (Electrical Key Antenna):

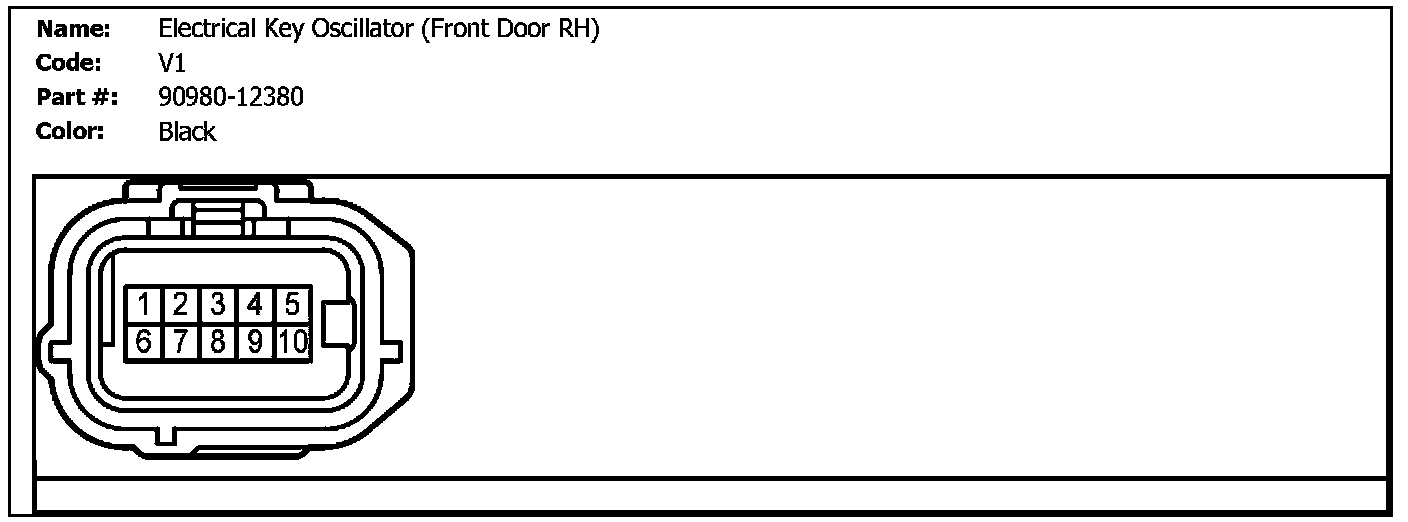

V1 (Electrical Key Oscillator (Front Door RH)):

W1 (Electrical Key Oscillator (Front Door LH)):

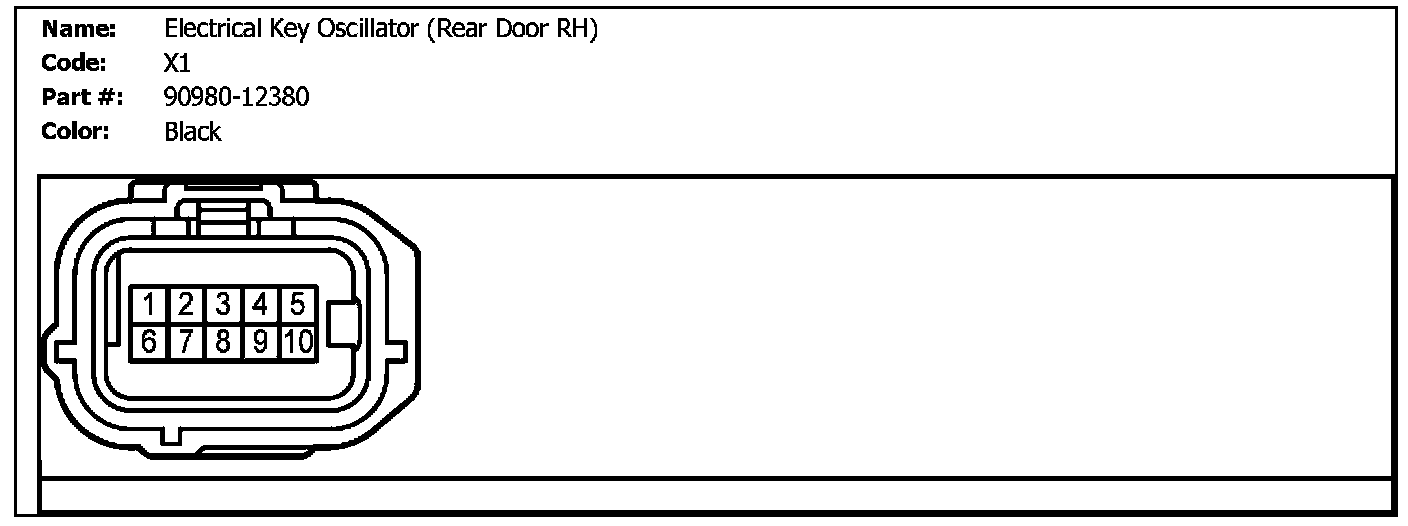

X1 (Electrical Key Oscillator (Rear Door RH)):

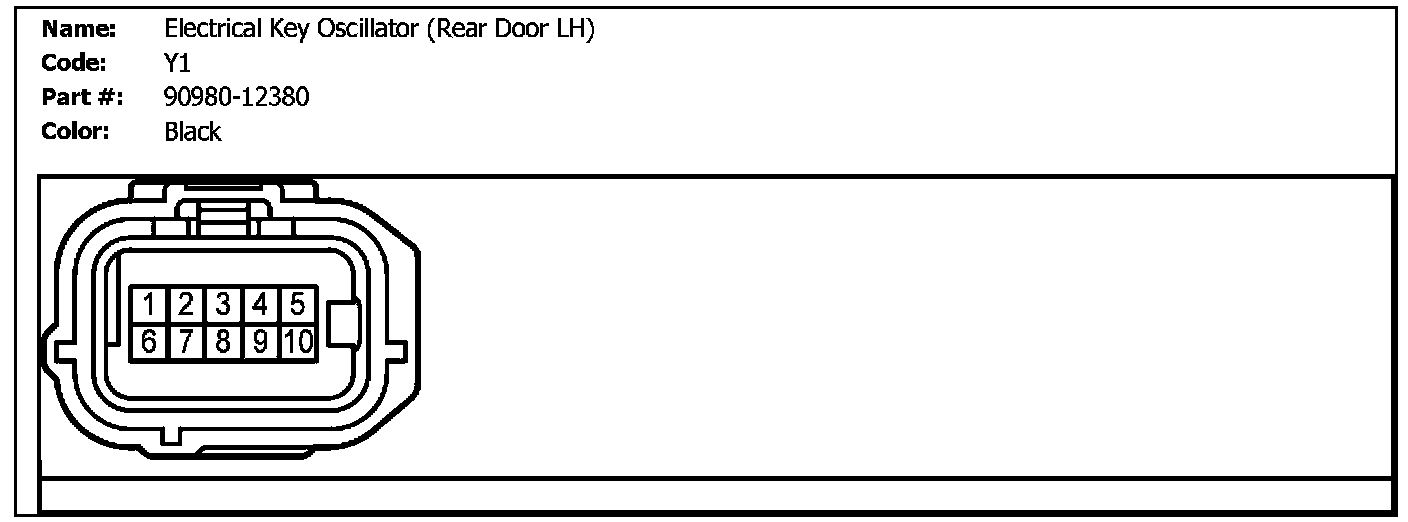

Y1 (Electrical Key Oscillator (Rear Door LH)):
