Wiper Switch
Wiper Switch

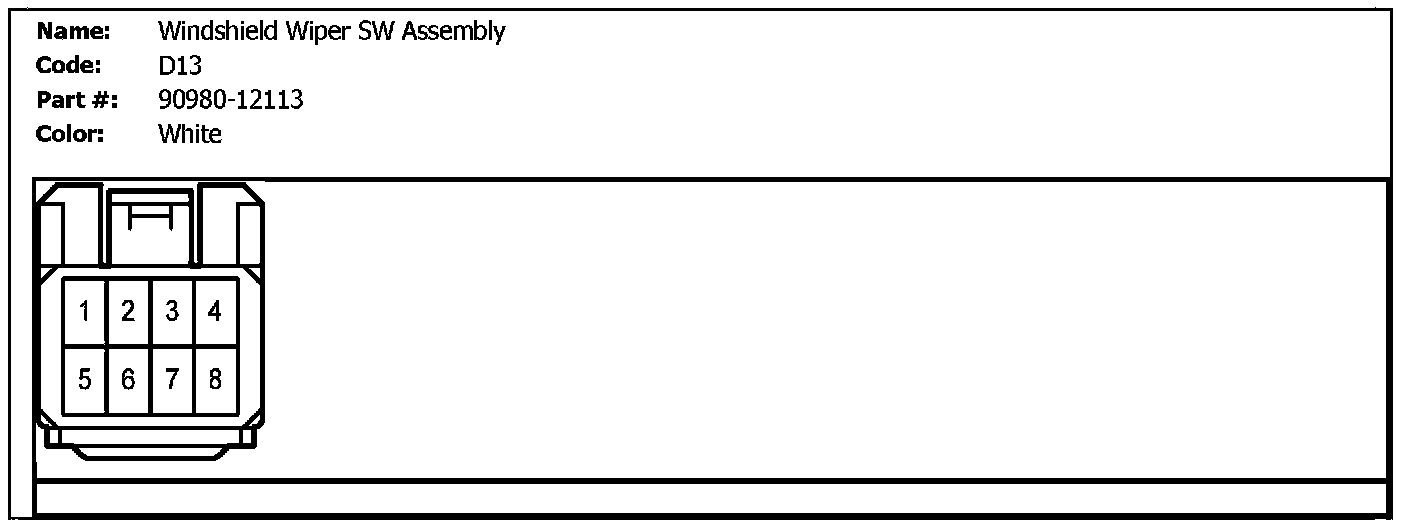

D13 (Windshield Wiper SW Assembly):

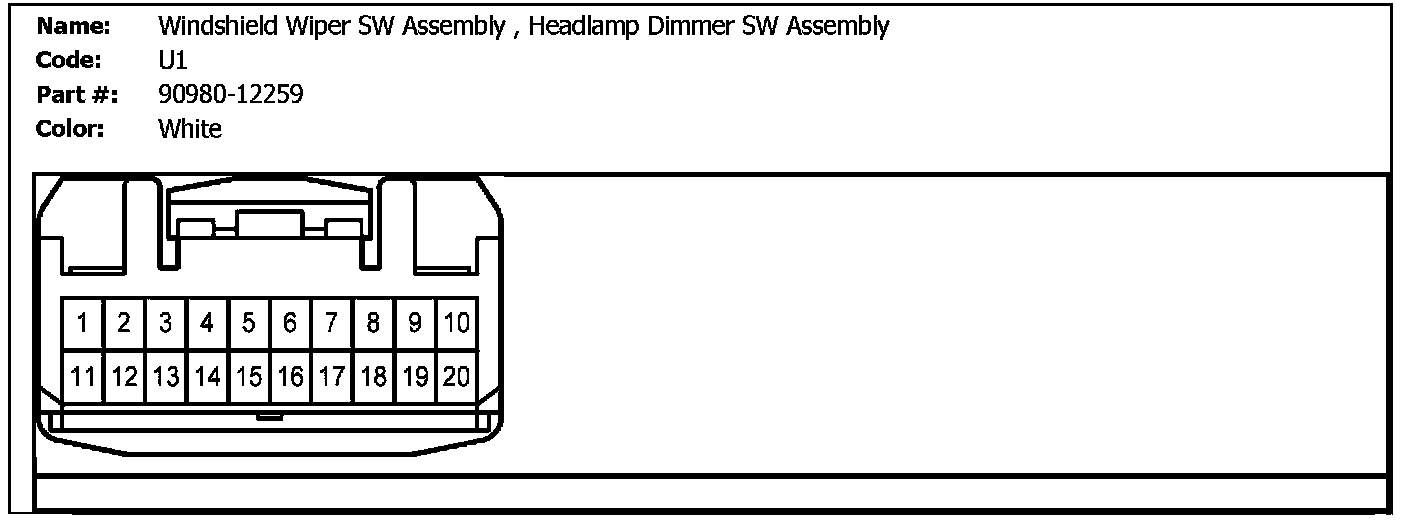

U1 (Windshield Wiper SW Assembly, Headlamp Dimmer SW Assembly):
