Disassembly
AIR CONDITIONING: AIR CONDITIONING PANEL: DISASSEMBLYDISASSEMBLY 1.
REMOVE AIR CONDITIONING
CONTROL ASSEMBLY (a)

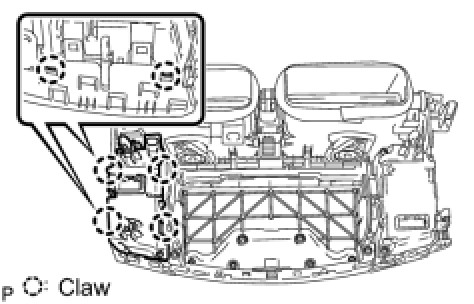

LHD:
(1)
Release the 4 claws and remove the air conditioning
control assembly.
(b)

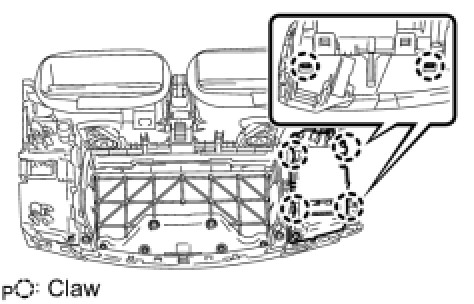

RHD:
(1)
Release the 4 claws and remove the air conditioning
control assembly.
