Removal

AIR CONDITIONING: AIR CONDITIONING PANEL: REMOVAL

REMOVAL
HINT: Installation is in the reverse order of removal.

1. DISCONNECT BATTERY NEGATIVE TERMINAL
(a) Wait for 90 seconds after disconnecting the cable to prevent the airbag working.
2. REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH NO.2 Removal

3. REMOVE INSTRUMENT PANEL SUB-ASSEMBLY Removal

4. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY CENTER

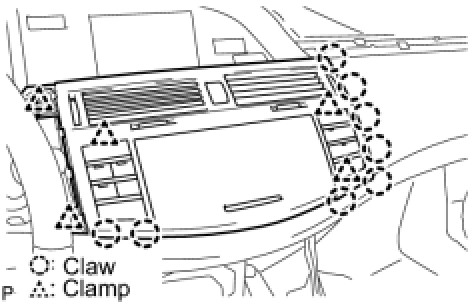

(a) Release the 8 claws and 5 clips and instrument cluster finish panel sub-assembly center.
(b) Disconnect the connector and remove the instrument cluster finish panel sub-assembly center.
