Computers and Control Systems: Description and Operation

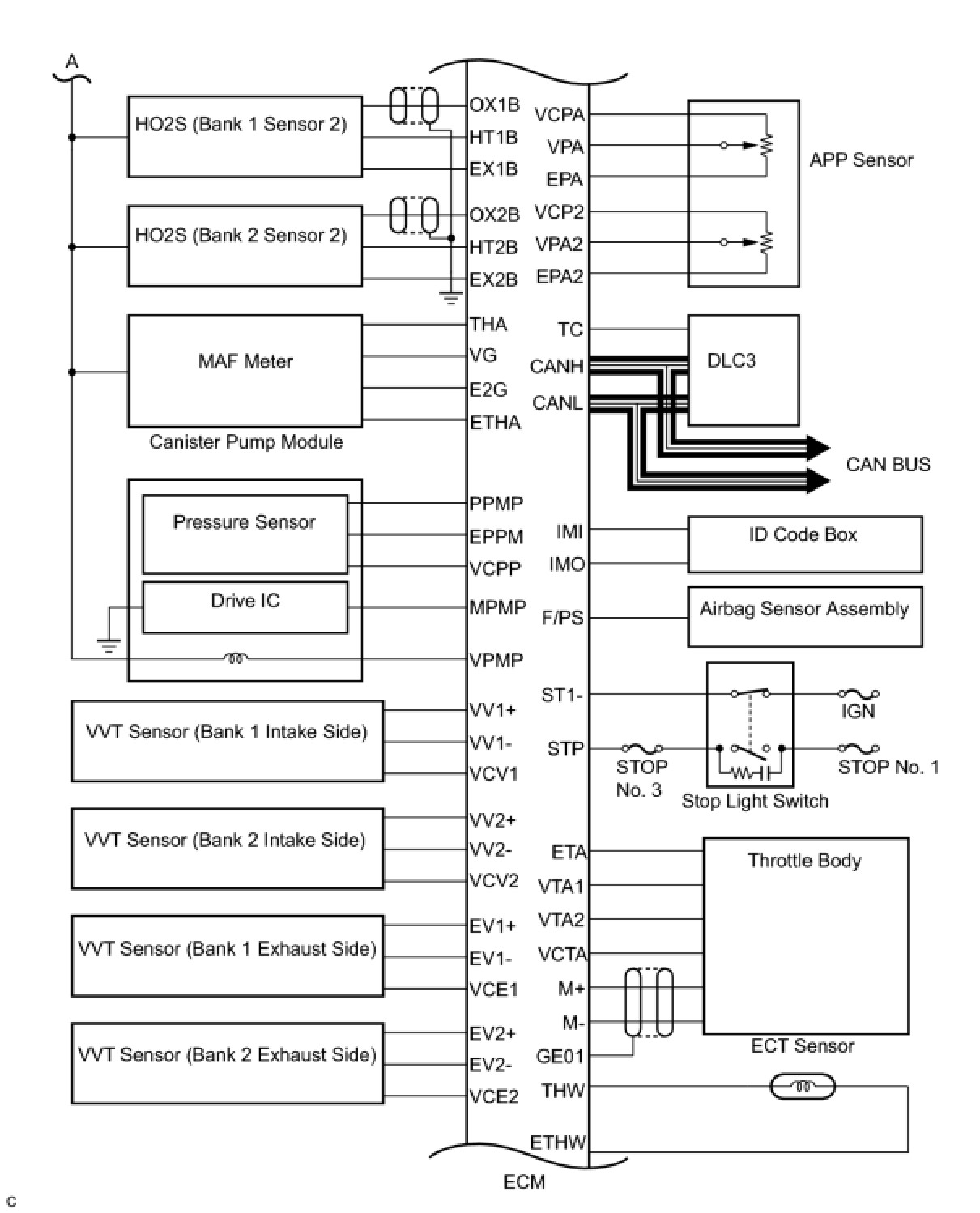

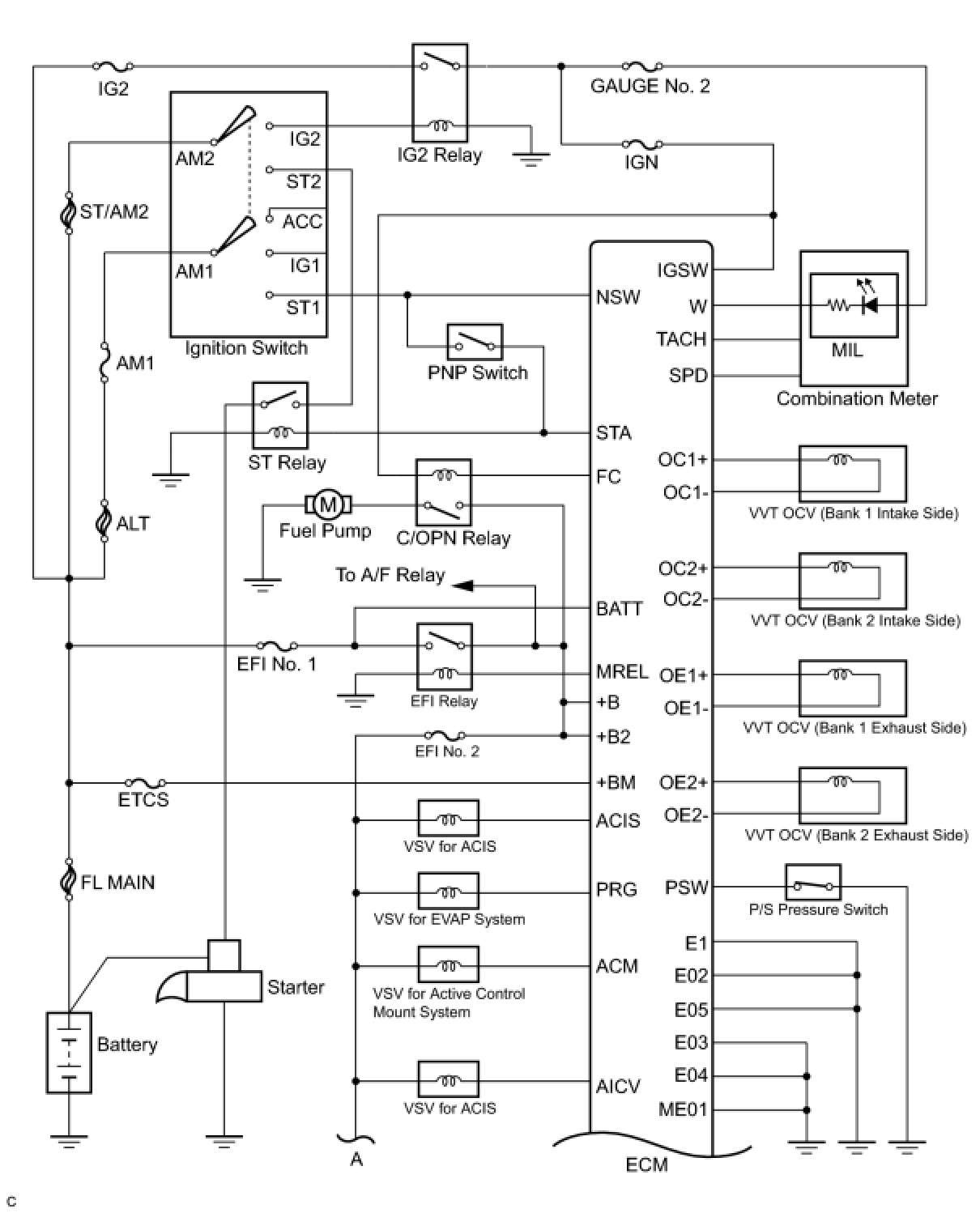

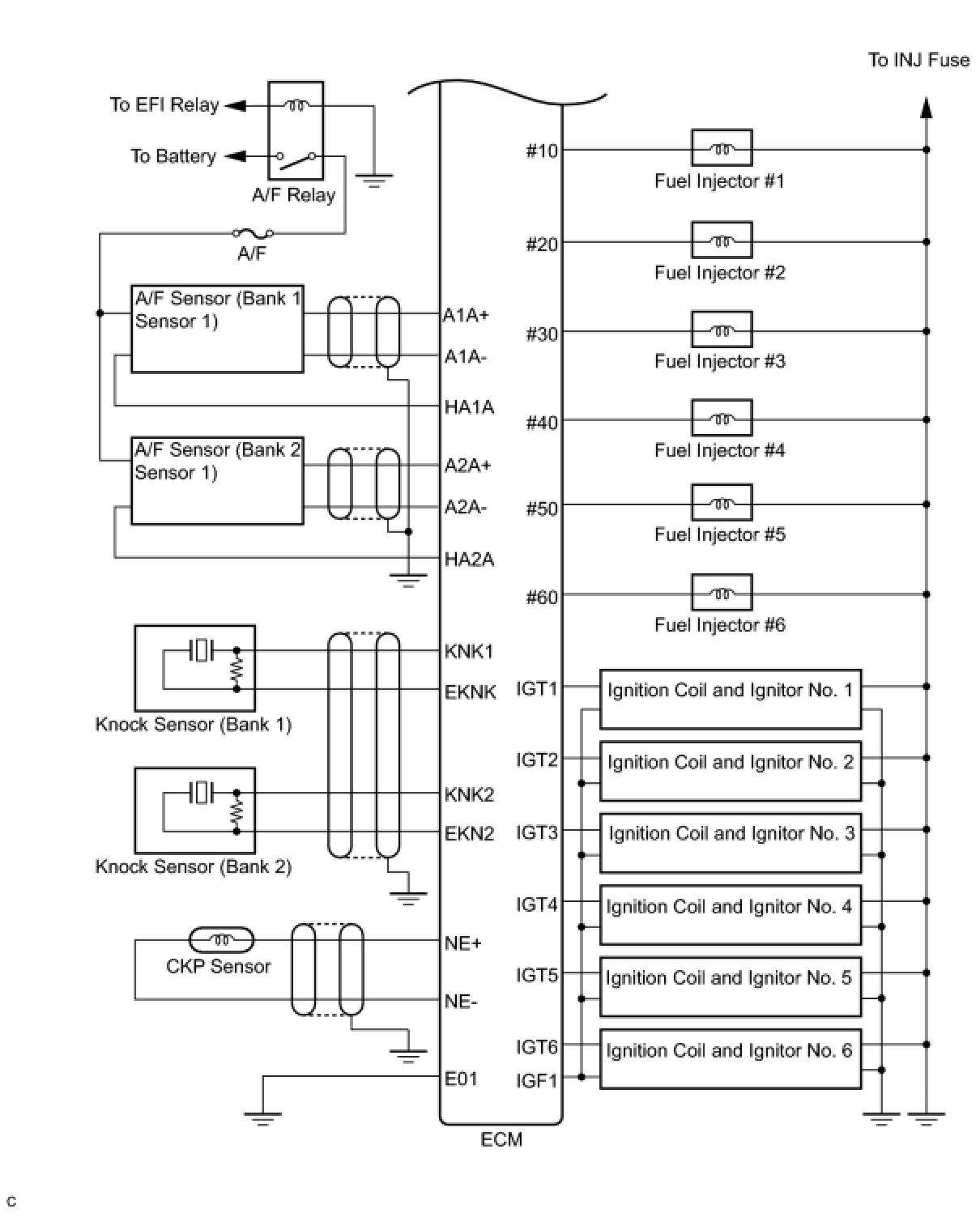

2GR-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: SYSTEM DIAGRAM

SYSTEM DIAGRAM

1. Without Smart Key System:













2. With Smart Key System:
