EFI Relay
2GR-FE ENGINE CONTROL SYSTEM: EFI RELAY: INSPECTIONINSPECTION 1.
INSPECT EFI RELAY
(a)

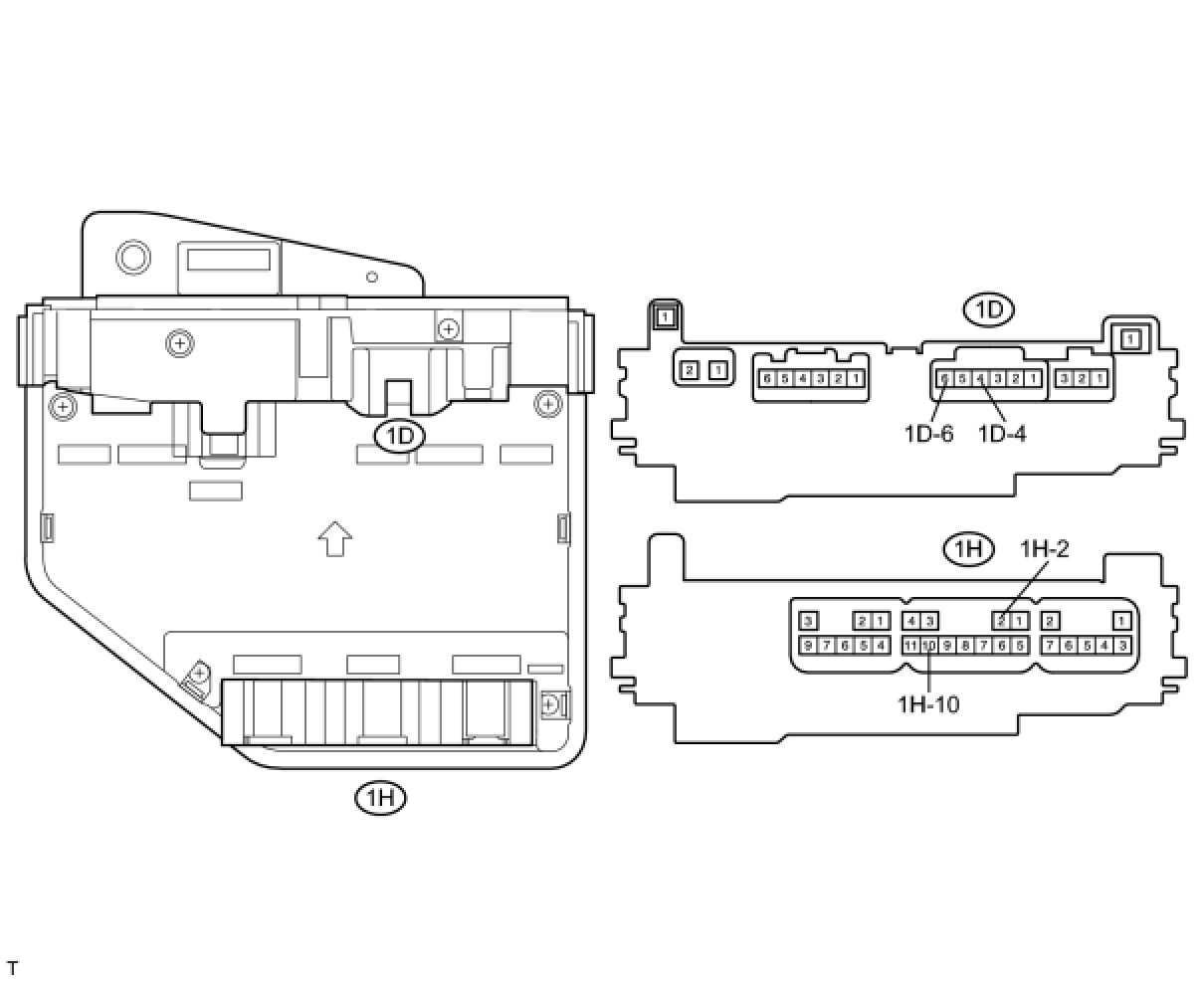

Inspect EFI relay
(1)

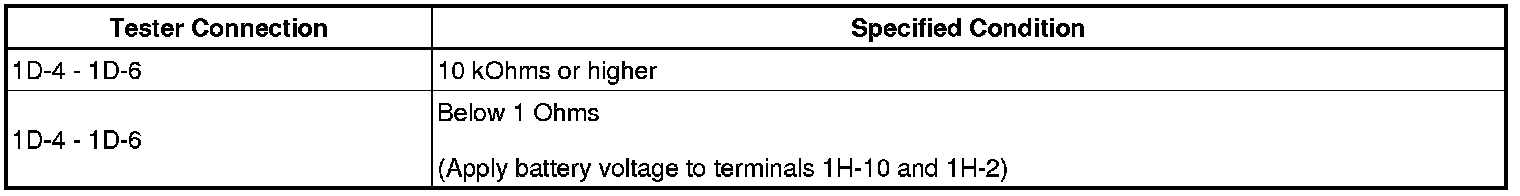

Using an ohmmeter, measure the resistance between the terminals.
Resistance: If the result is not as specified, replace the engine room junction block assembly.
