Transmission Control Systems: Locations

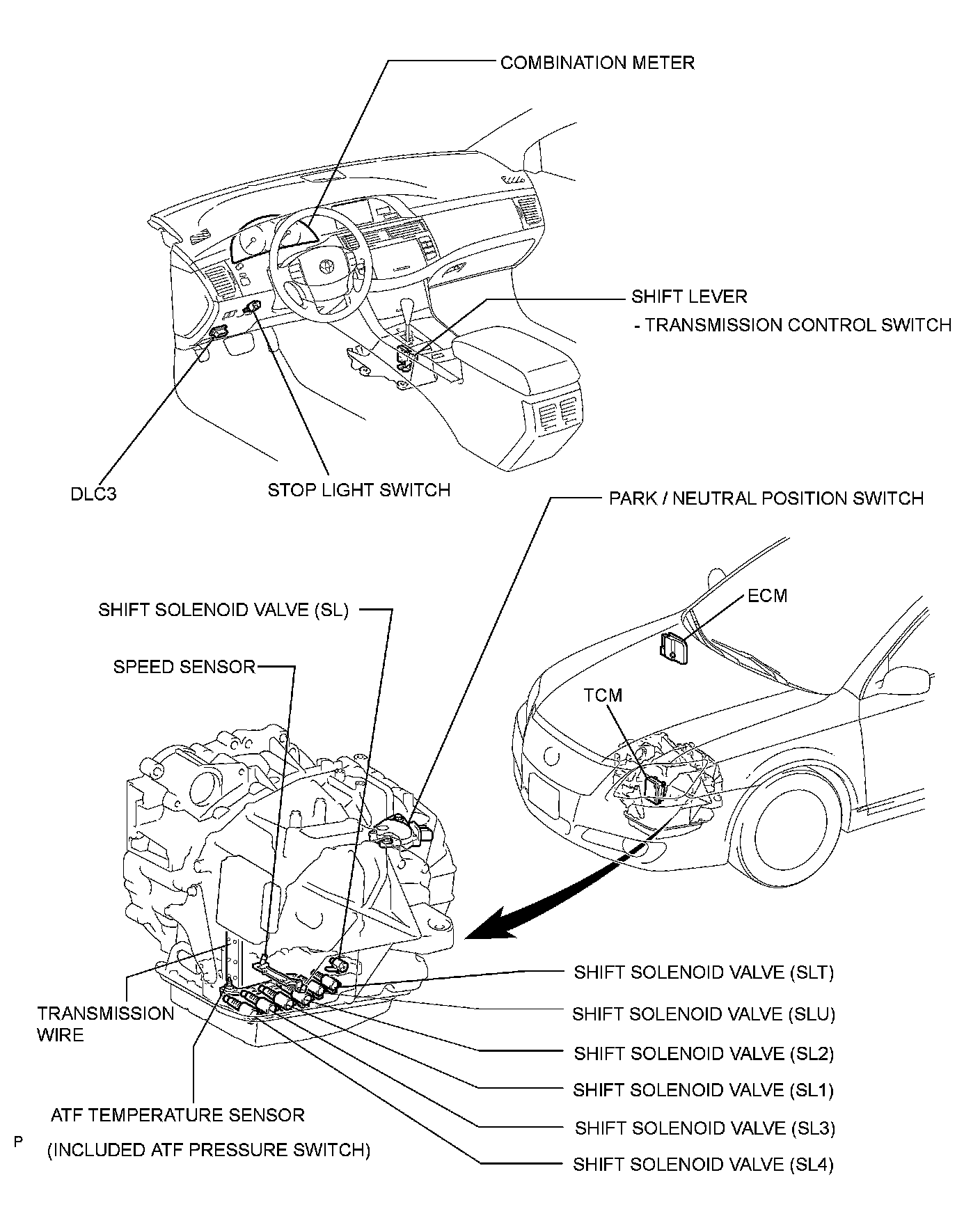

U660E AUTOMATIC TRANSAXLE: AUTOMATIC TRANSAXLE SYSTEM: PARTS LOCATION
PARTS LOCATION
ILLUSTRATION
