Main Bearing Cap

Main Bearing Cap







Step 1

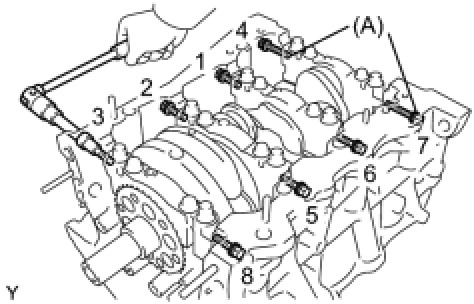

Install and uniformly tighten the 16 main bearing cap bolts in the sequence shown in the illustration.

Torque: 61 Nm (622 kgf-cm, 45 ft-lbf)

If any of the main bearing cap bolts does not meet the torque specified, replace it.






Step 2

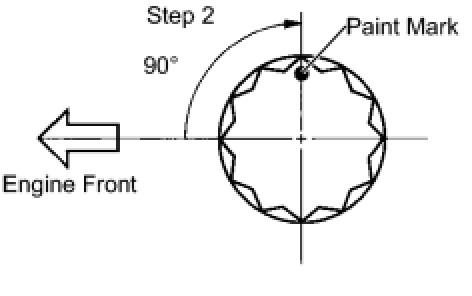

Mark the front of the bearing cap bolts with paint.
Tighten the bearing cap bolts another 90° in the order above.
Check that the painted mark is now at a 90° angle to the front.






Install and uniformly tighten the 8 main bearing cap bolts in several steps and in the sequence shown in the illustration.

Torque: 52 Nm (525 kgf-cm, 38 ft-lbf)

HINT:
Bolt (A) length: 45 mm (1.77 in.)
Except bolt (A) length: 30 mm (1.18 in.)
