2GR-FE STARTING: ENGINE SWITCH (w/ Smart Key System): REMOVAL

REMOVAL

1. PRECAUTION
HINT:
Service Precautions

2. DISCONNECT BATTERY NEGATIVE TERMINAL
3. REMOVE FRONT DOOR SCUFF PLATE LH Removal

4. REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH Removal

5. REMOVE INSTRUMENT PANEL FINISH LOWER PANEL LH Removal

6. REMOVE INSTRUMENT PANEL AIR BAG ASSEMBLY LOWER NO.1
7. REMOVE ENGINE SWITCH
(a) Disconnect the engine switch connector.

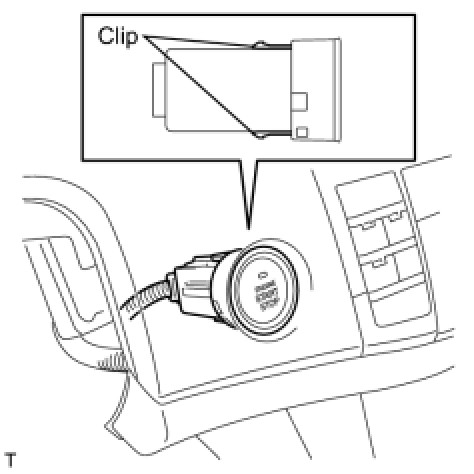

(b) Disengage the 2 clips and remove the switch.
