d1 (Occupant Classification Sensor)

d1 (Occupant Classification Sensor):

d2 (Occupant Classification Sensor (Front LH)):

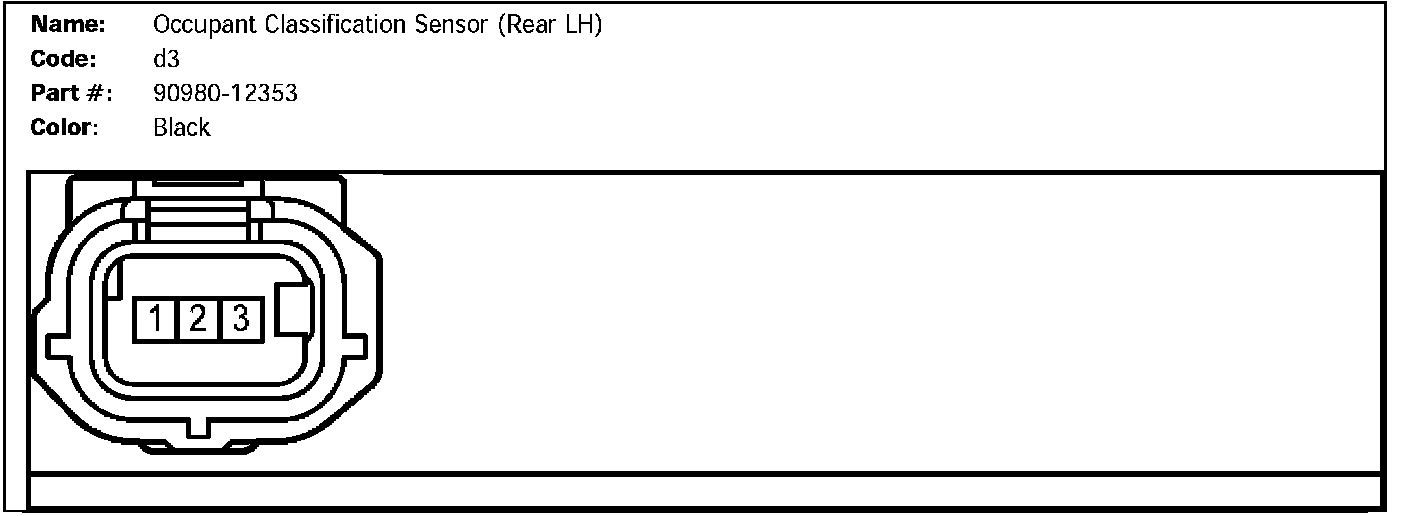

d3 (Occupant Classification Sensor (Rear LH)):

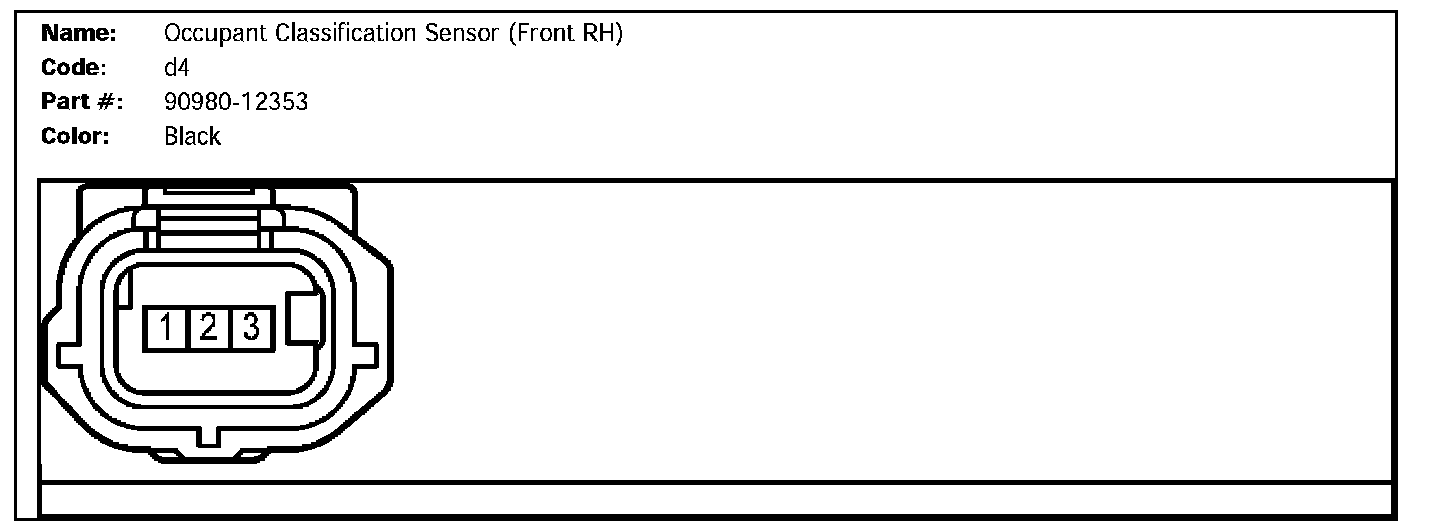

d4 (Occupant Classification Sensor (Front RH)):

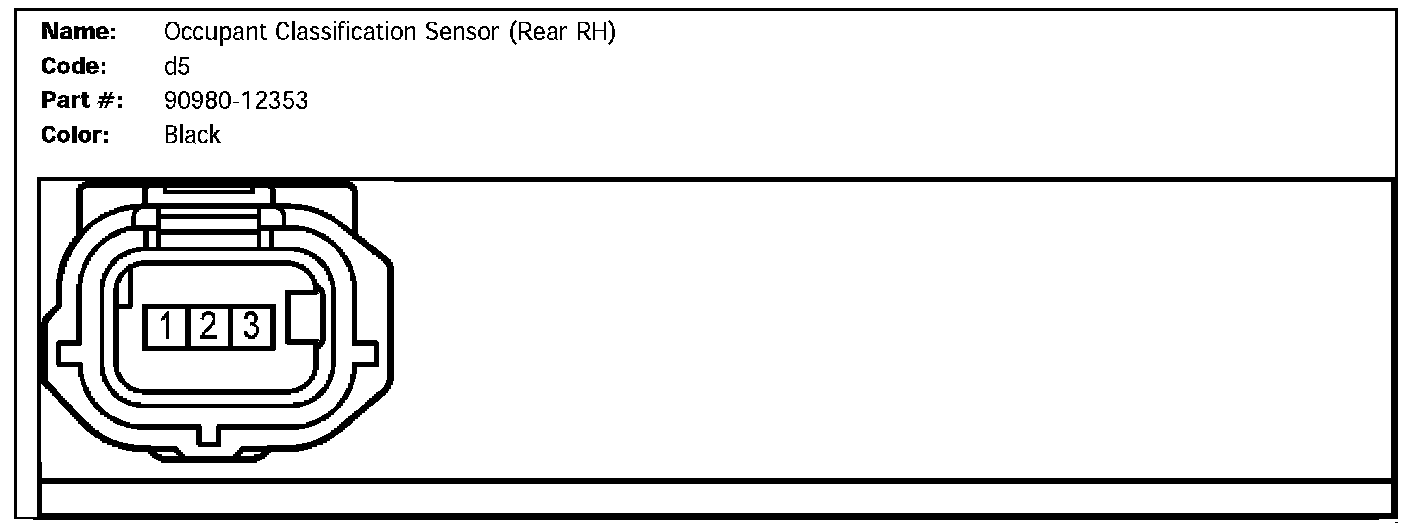

d5 (Occupant Classification Sensor (Rear RH)):

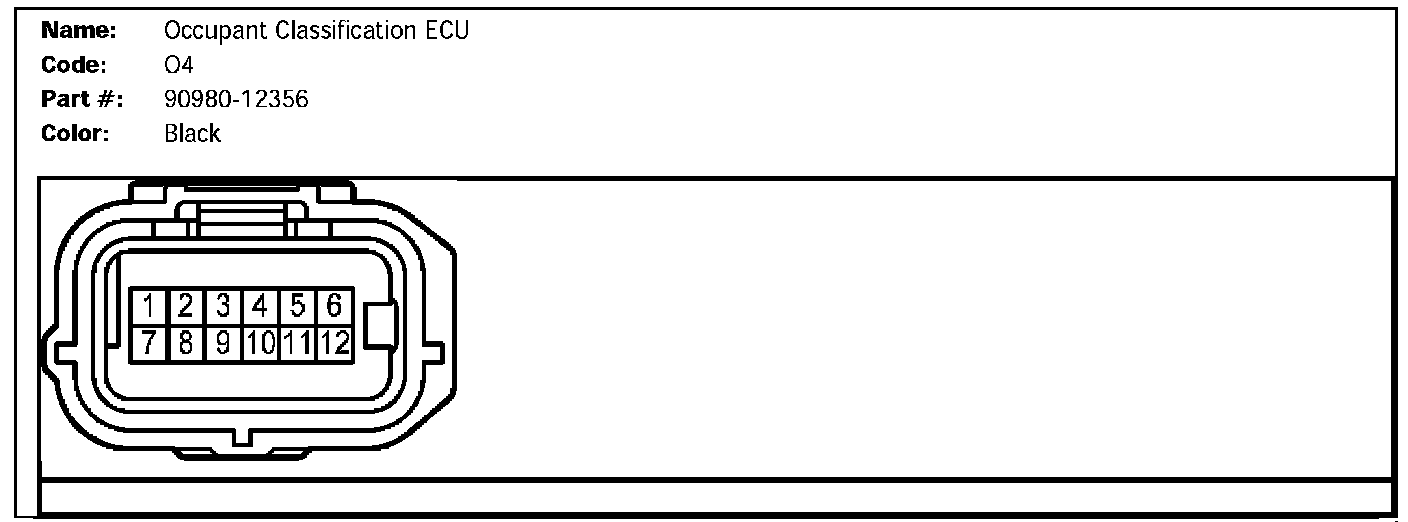

O4 (Occupant Classification ECU):

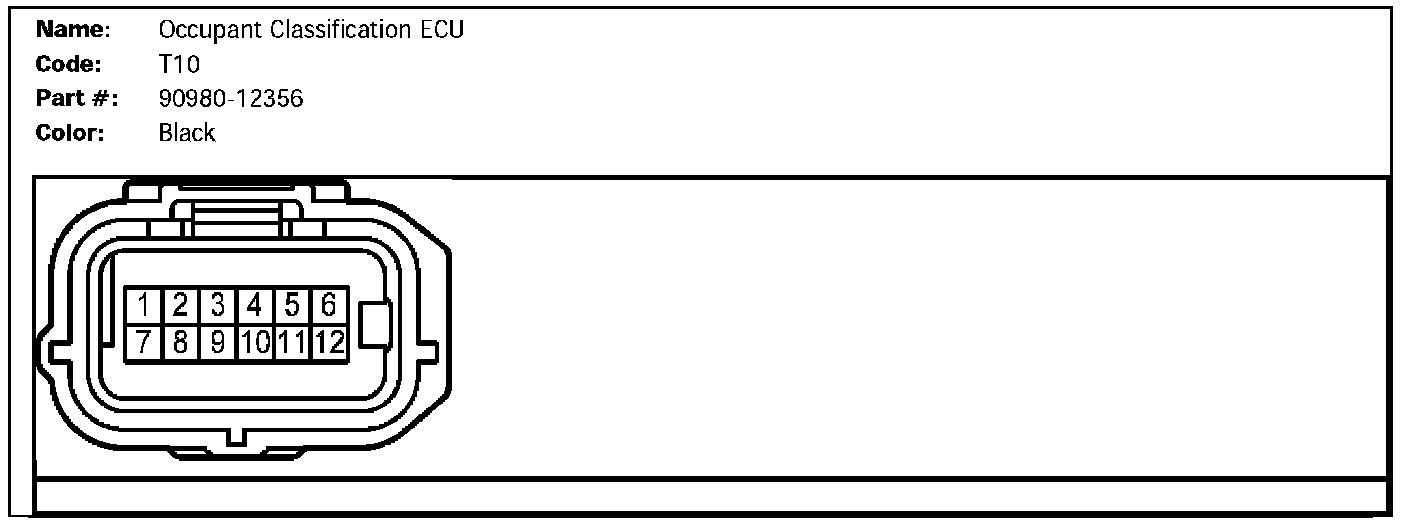

T10 (Occupant Classification ECU):

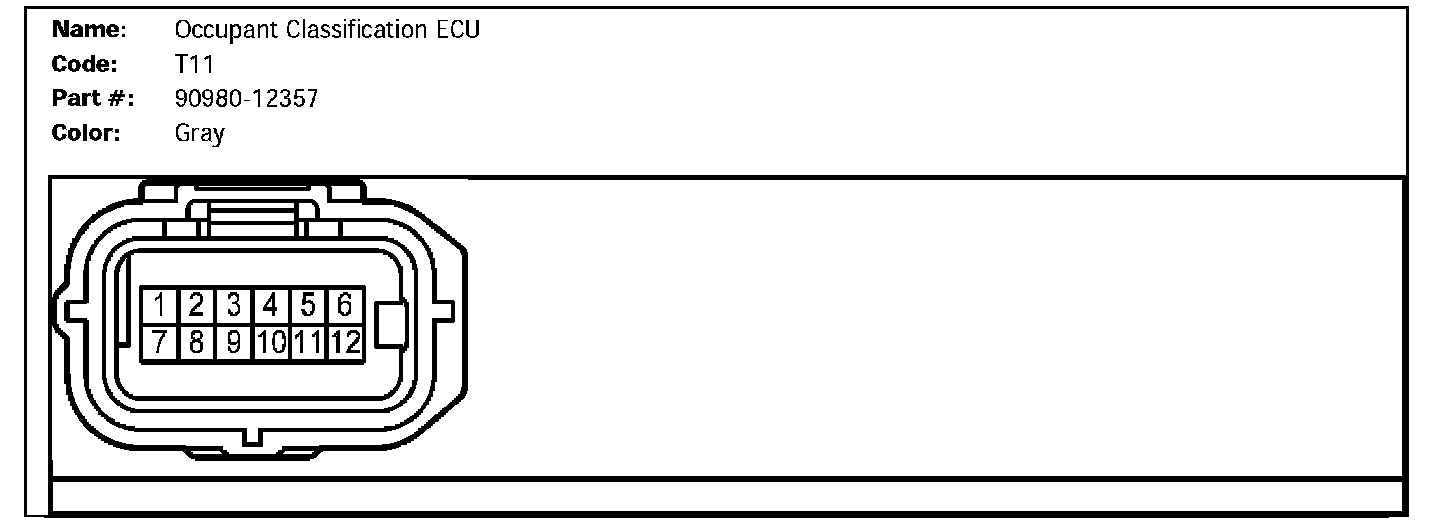

T11 (Occupant Classification ECU):

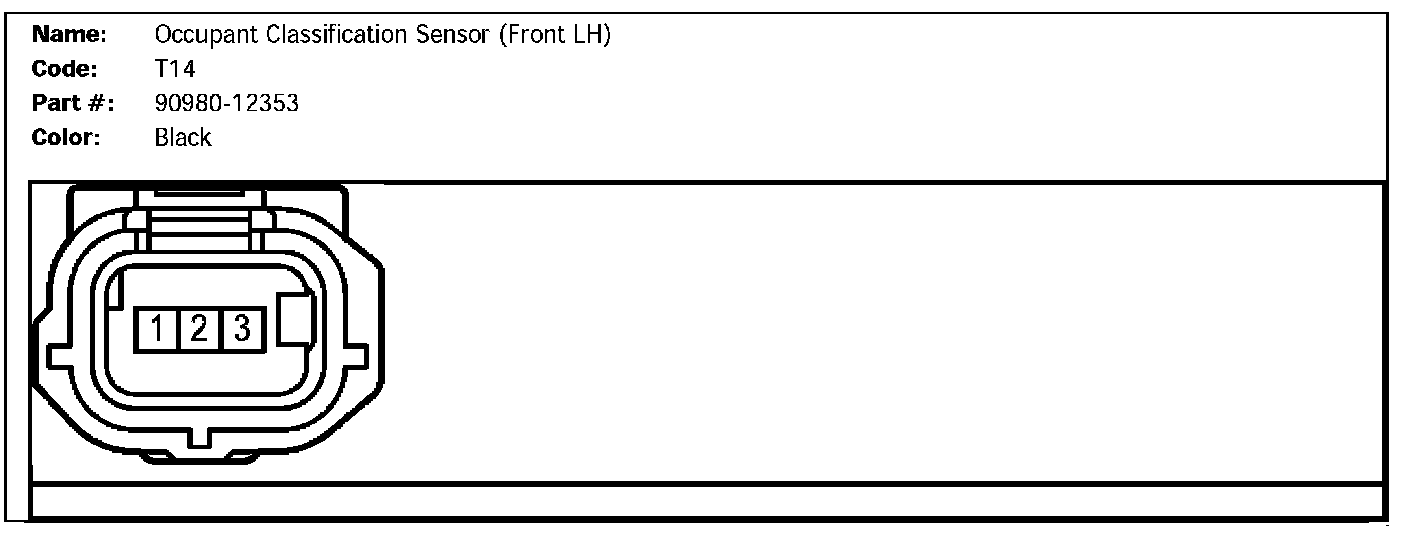

T14 (Occupant Classification Sensor (Front LH)):

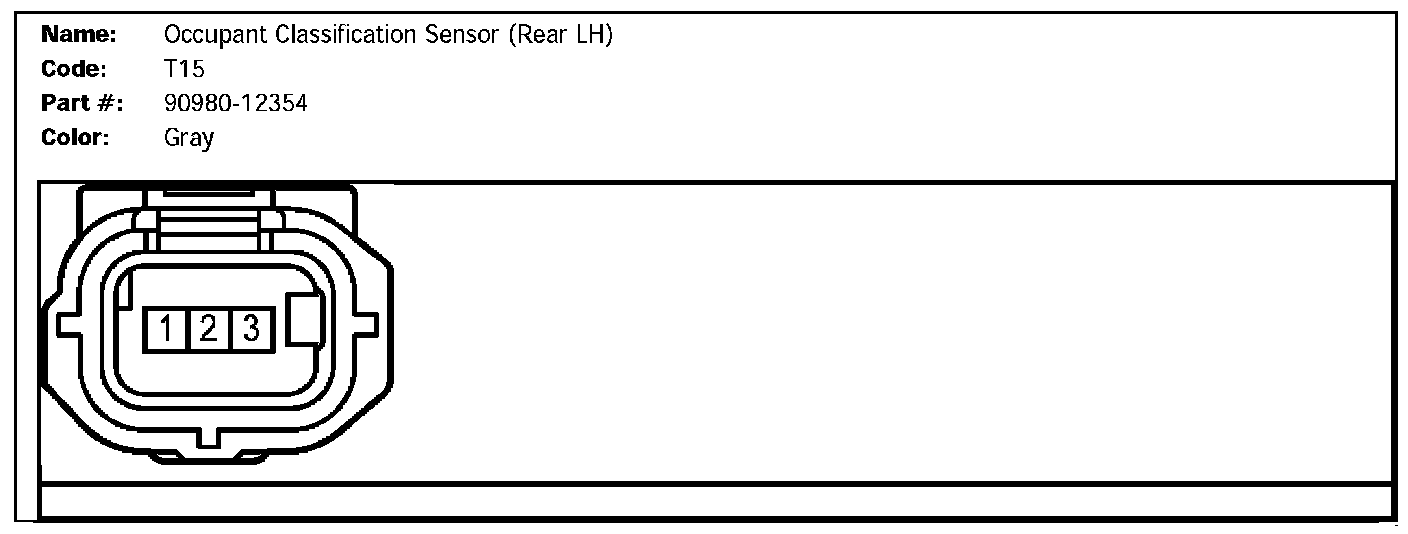

T15 (Occupant Classification Sensor (Rear LH)):

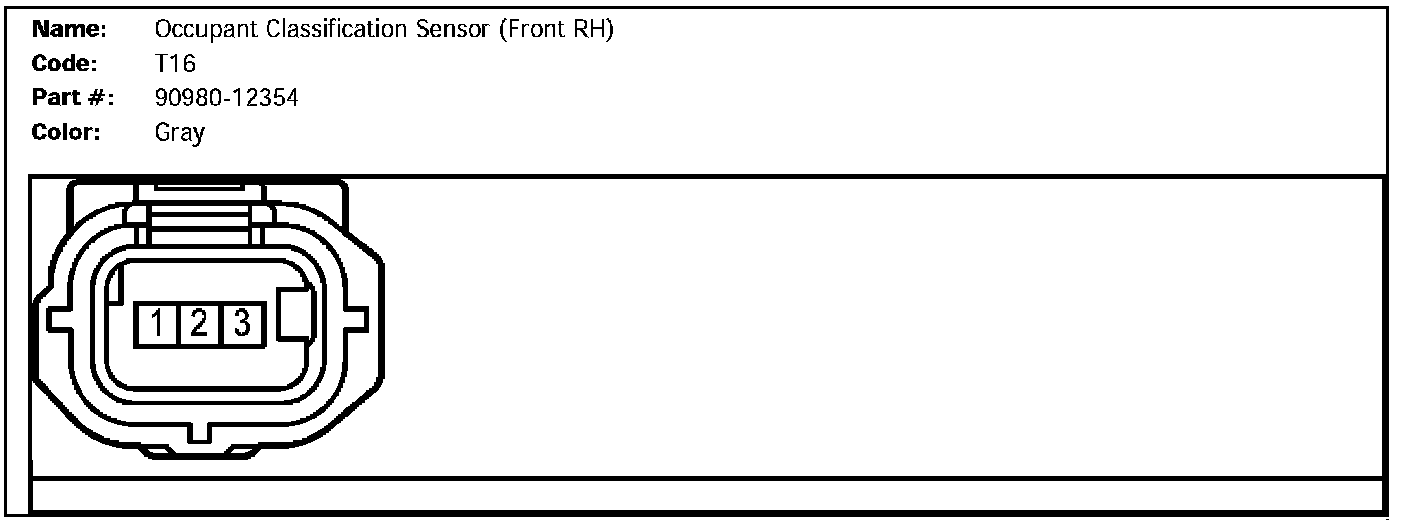

T16 (Occupant Classification Sensor (Front RH)):

T17 (Occupant Classification Sensor (Rear RH)):
