Home >> Toyota >> 2008 >> Camry L4-2.4L (2AZ-FE) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Timing Components >> Timing Chain >> Service and Repair >> Components

Components

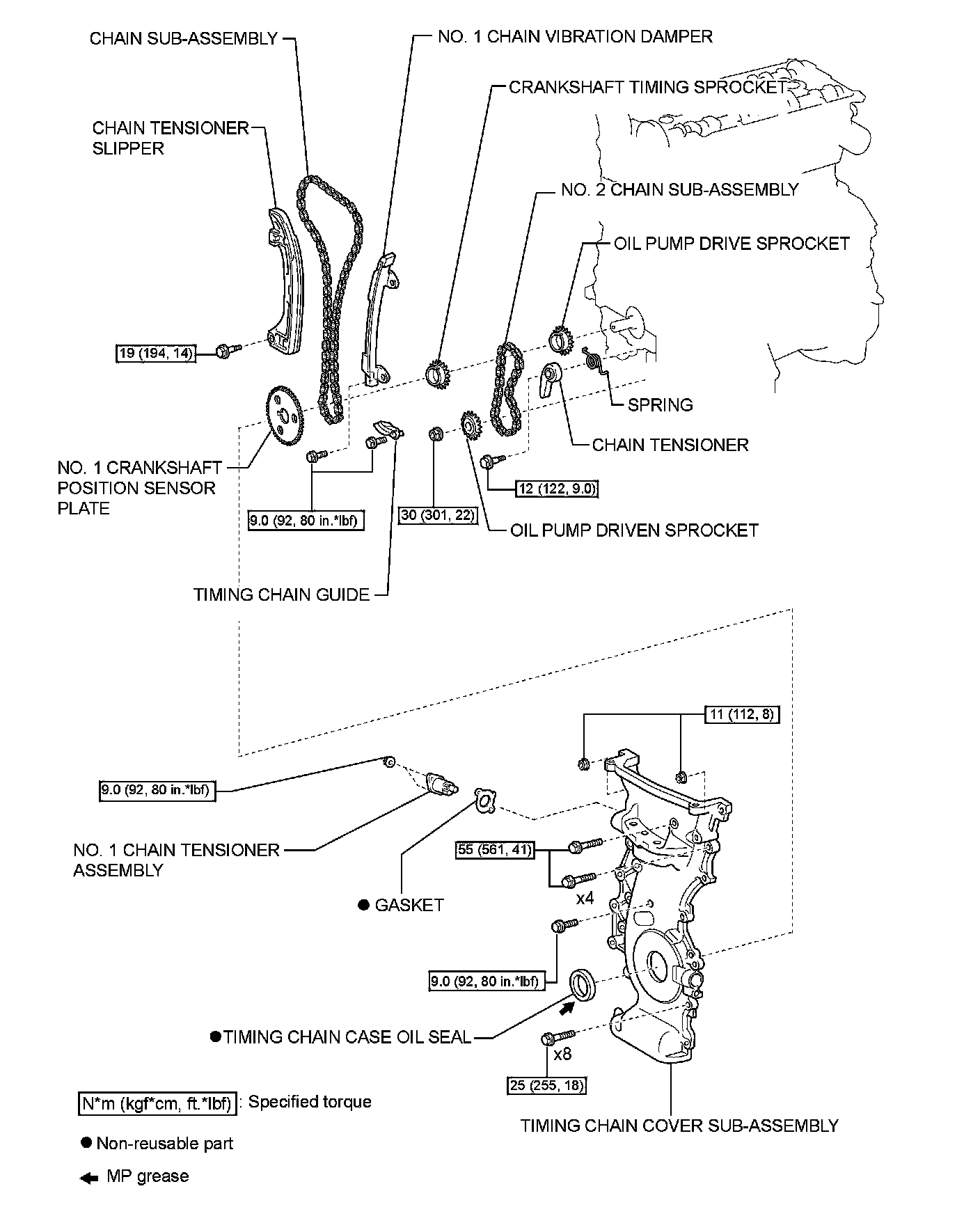

2AZ-FE ENGINE MECHANICAL: TIMING CHAIN:

COMPONENTS
