Installation

AIR CONDITIONING: ROOM TEMPERATURE SENSOR:

INSTALLATION

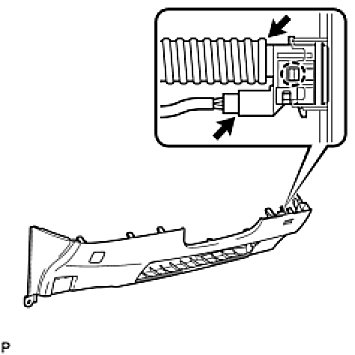

1. INSTALL ROOM TEMPERATURE SENSOR





(a) Engage the claw to install the sensor.
(b) Connect the connector and attach the air hose.
2. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL LH (Installation)

3. INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH (Installation)

4. INSTALL FRONT DOOR SCUFF PLATE LH (Installation)
