Camry L4-2.4L (2AZ-FE)
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations

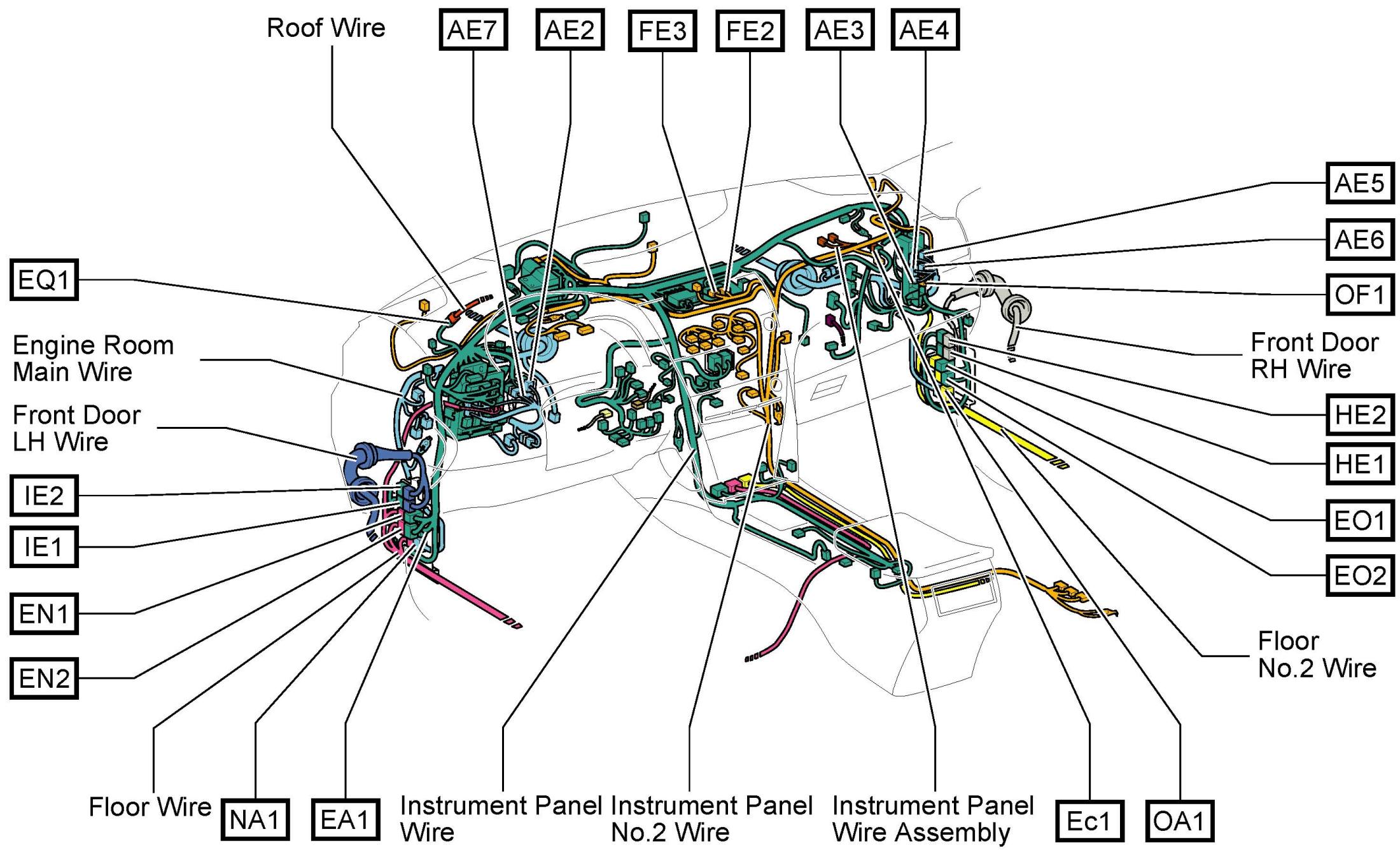

Connector Locations
AE2 - Ec1:

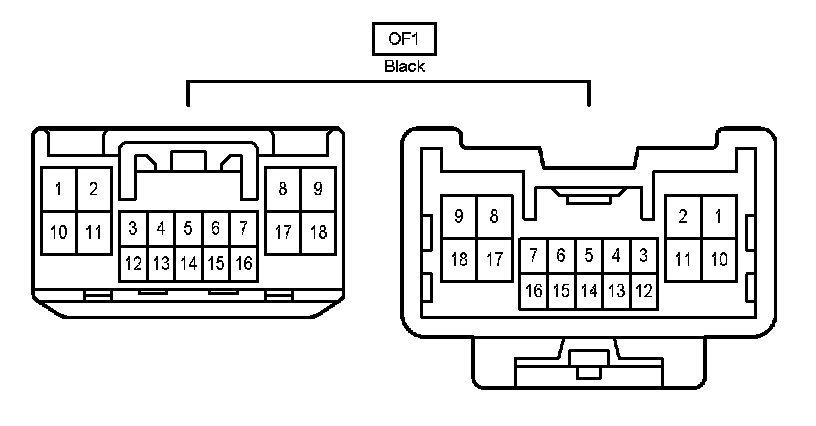

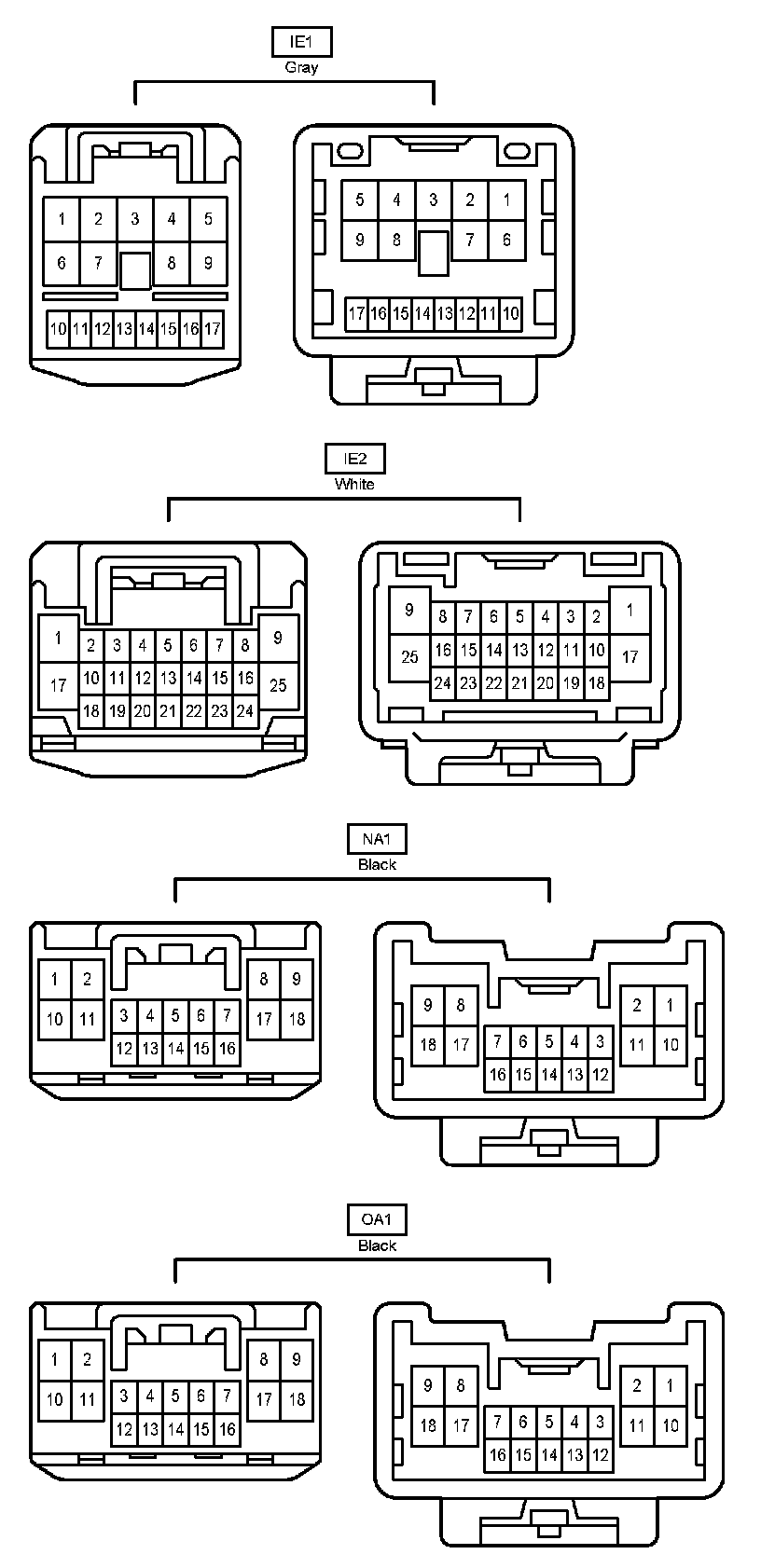

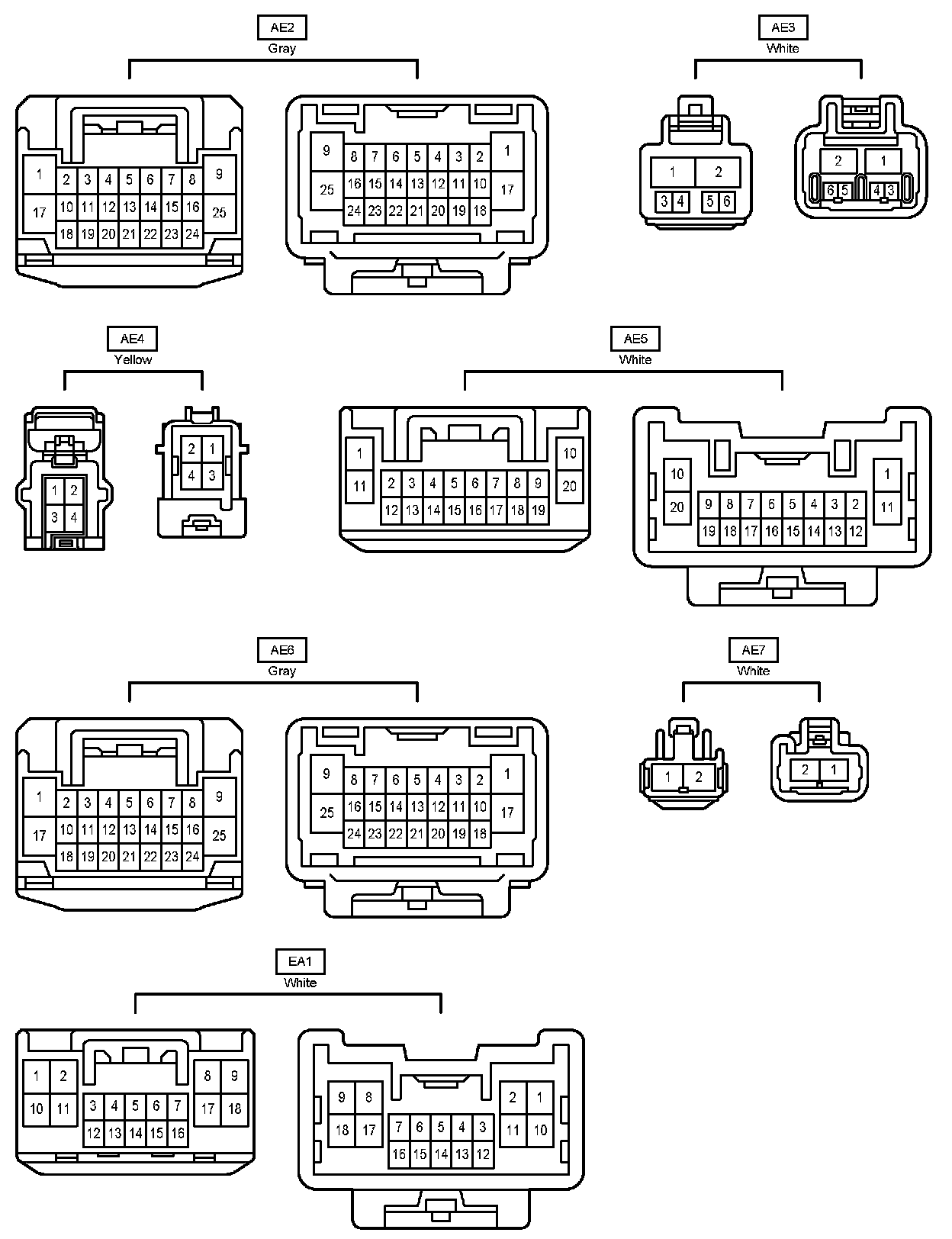

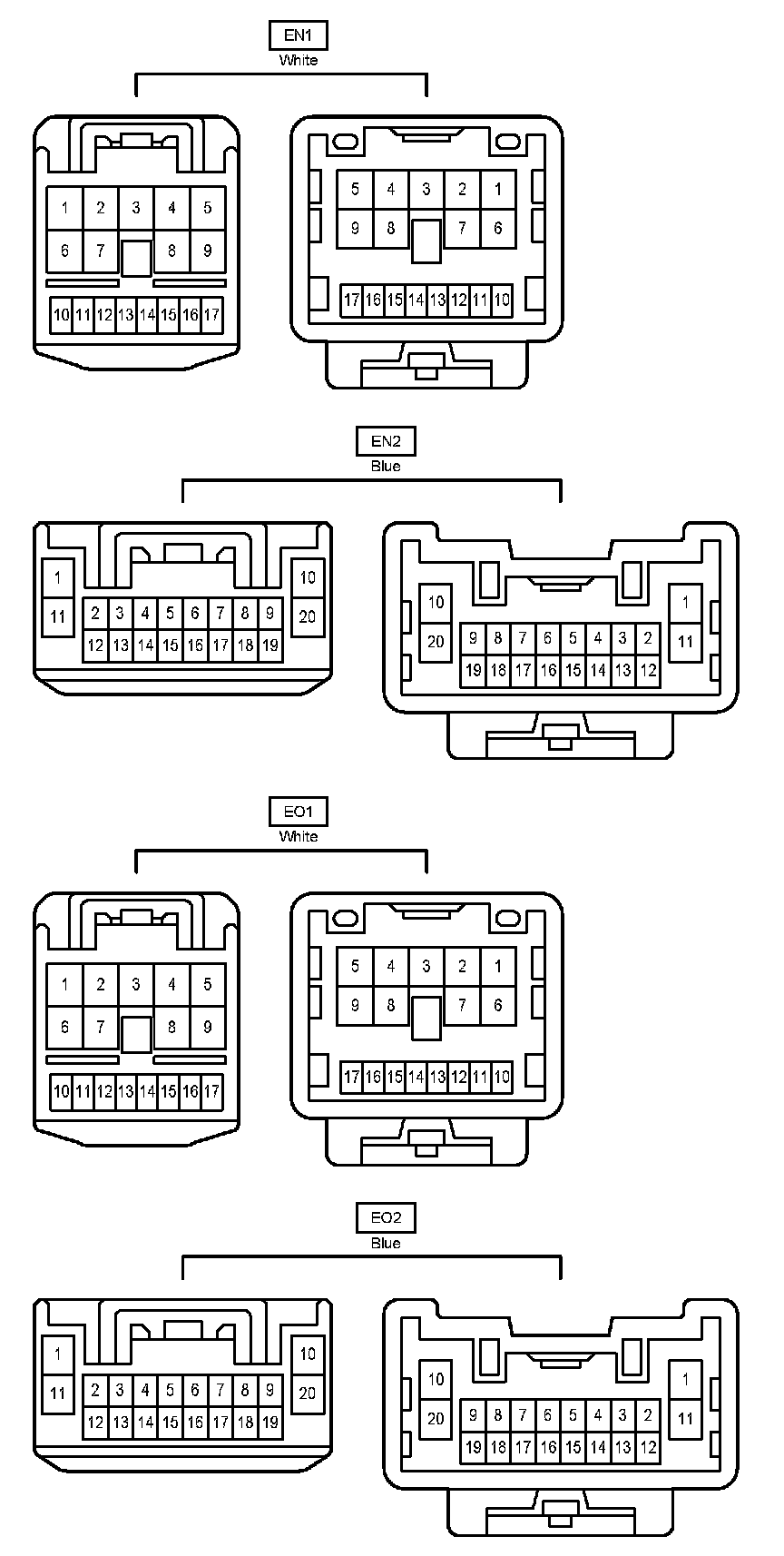

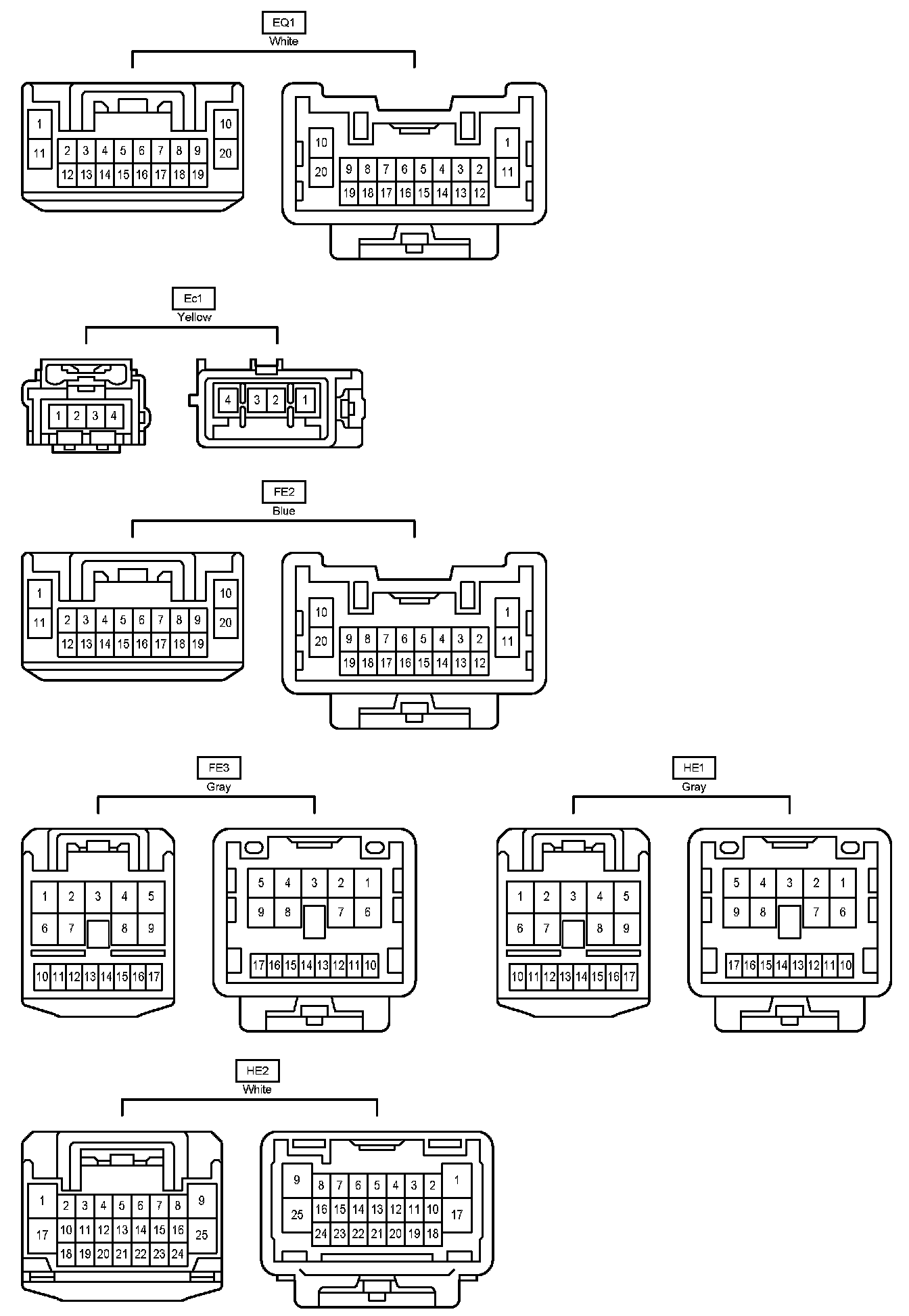

Connector Views:
Connector Views:
Connector Views:
Connector Views:
Connector Views:

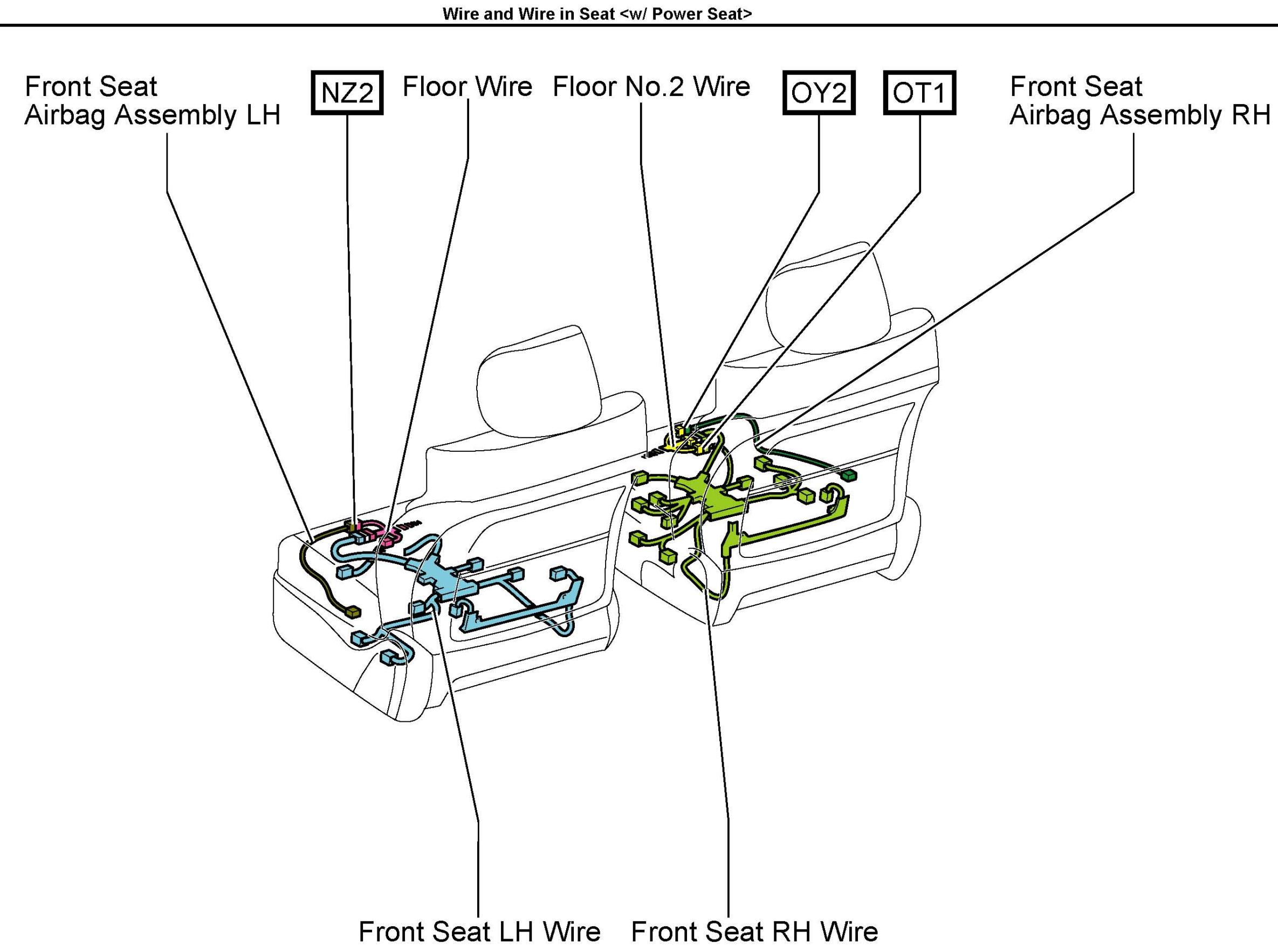

NZ2 - OY2:
Connector Views:

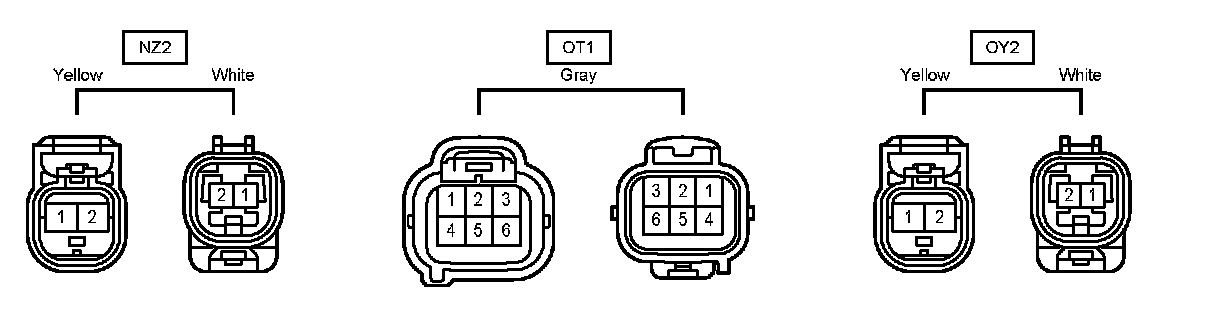

NZ2 - OY2:
Connector Views:
