Removal

2AZ-FE ENGINE CONTROL SYSTEM: CAMSHAFT POSITION SENSOR:

REMOVAL

1. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY (Removal)

2. REMOVE AIR CLEANER CAP SUB-ASSEMBLY (Removal)

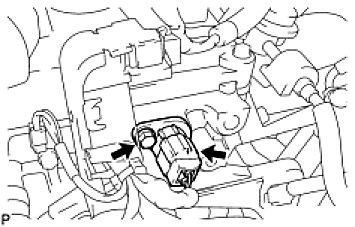

3. REMOVE CAMSHAFT POSITION SENSOR





(a) Disconnect the camshaft position sensor connector.
(b) Remove the bolt and camshaft position sensor.
