Removal

2AZ-FE ENGINE CONTROL SYSTEM: CRANKSHAFT POSITION SENSOR:

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE FRONT WHEEL RH
3. REMOVE FRONT FENDER APRON RH
4. REMOVE V-RIBBED BELT (Removal)

5. REMOVE GENERATOR ASSEMBLY (Removal)

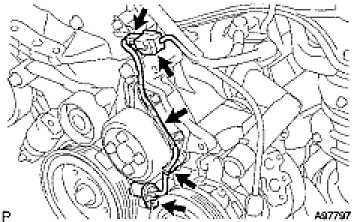

6. REMOVE CRANKSHAFT POSITION SENSOR

(a) Disconnect the crankshaft position sensor connector.
(b) Remove the connector clamp and wire harness clamp.
(c) Remove the wire harness clamp bracket from the wire harness.
(d) Remove the bolt, and then remove the crankshaft position sensor.
