Cooling System








SERVICE SPECIFICATIONS: 2AZ-FE COOLING:

SERVICE DATA

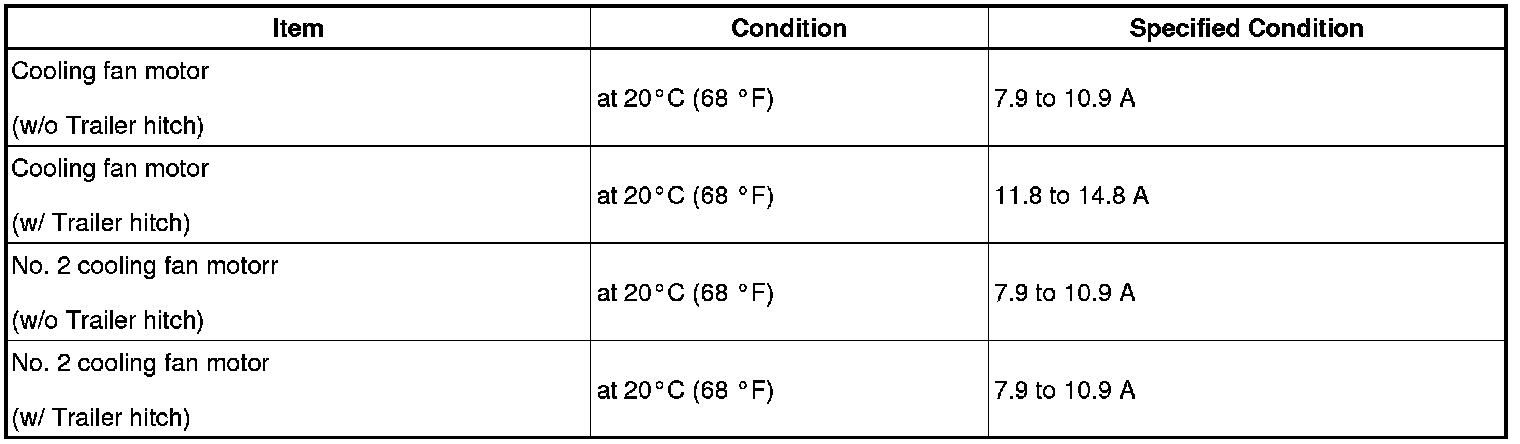

COOLING FAN MOTOR:

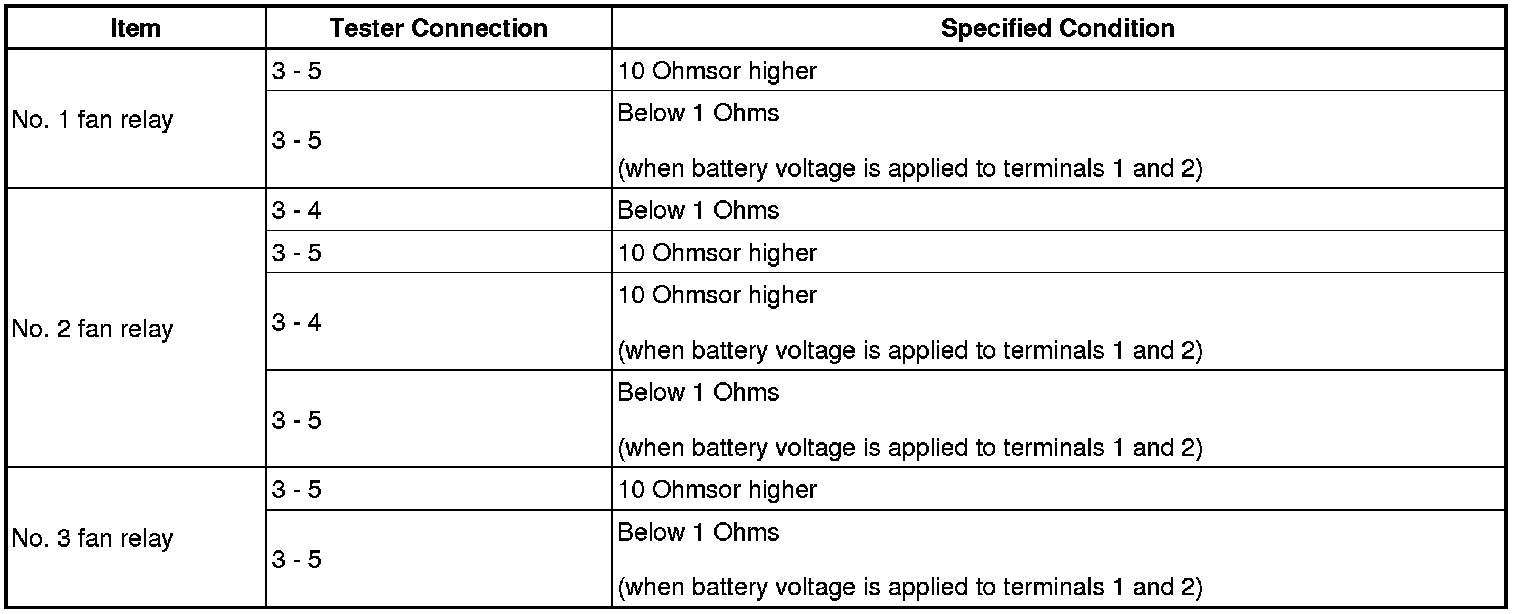

COOLING FAN RELAY:
