SERVICE SPECIFICATIONS: 2AZ-FE COOLING:
TORQUE SPECIFICATIONS
COOLANT:

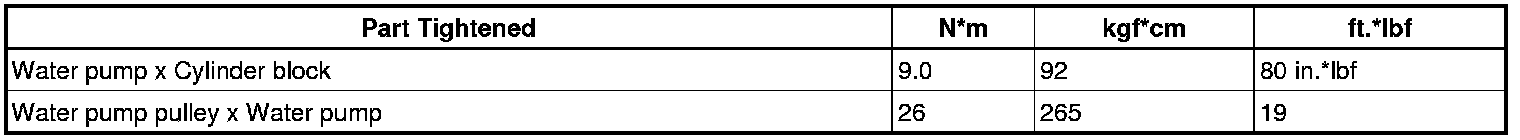

WATER PUMP:
THERMOSTAT:

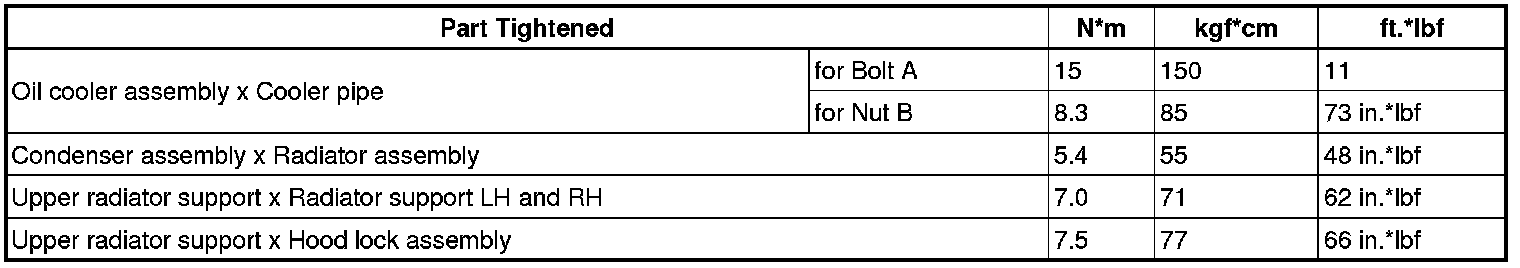

RADIATOR:
