Flex Plate
DRIVE PLATE & RING GEAR SUB-ASSEMBLY
Clean the bolt and the bolt hole.
Apply adhesive to 2 or 3 threads of the bolt end.
Adhesive: Part No. 08833-00070, THREE BOND or equivalent

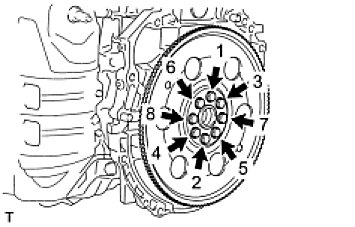

Install the front spacer, drive plate and rear spacer with the 8 bolts. Uniformly tighten the 8 bolts in the sequence shown in the illustration.
Torque
98 Nm (1,000 kgf-cm, 72 ft-lbf)
