Spark Plug

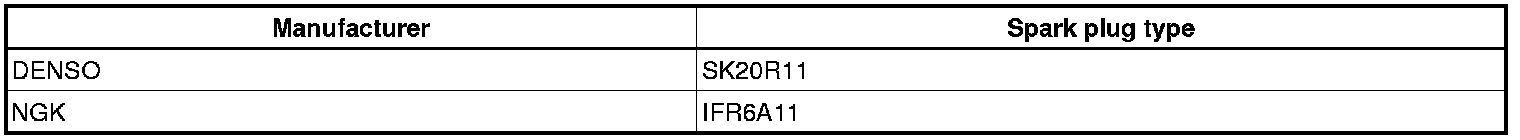

Recommended spark plug:





Electrode gap for new spark plug 1.0 to 1.1 mm (0.039 to 0.043 in.)

Maximum electrode gap for used spark plug 1.3 mm (0.051 in.)

Torque 19 Nm (194 kgf-cm, 14 ft-lbf)
