Service Data

SERVICE SPECIFICATIONS: E351 MANUAL TRANSAXLE:

SERVICE DATA

MANUAL TRANSAXLE ASSEMBLY:

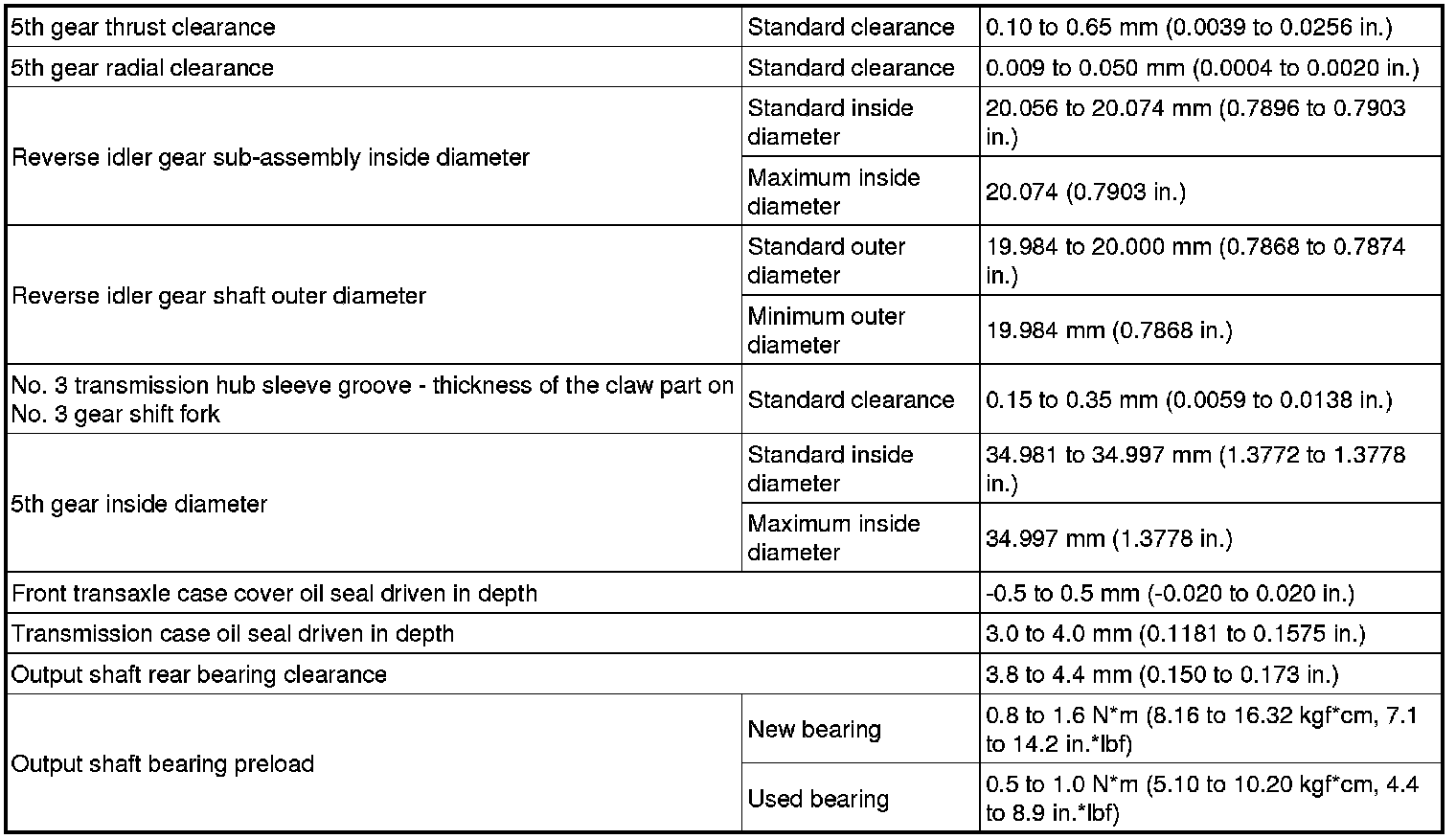

MANUAL TRANSAXLE UNIT:

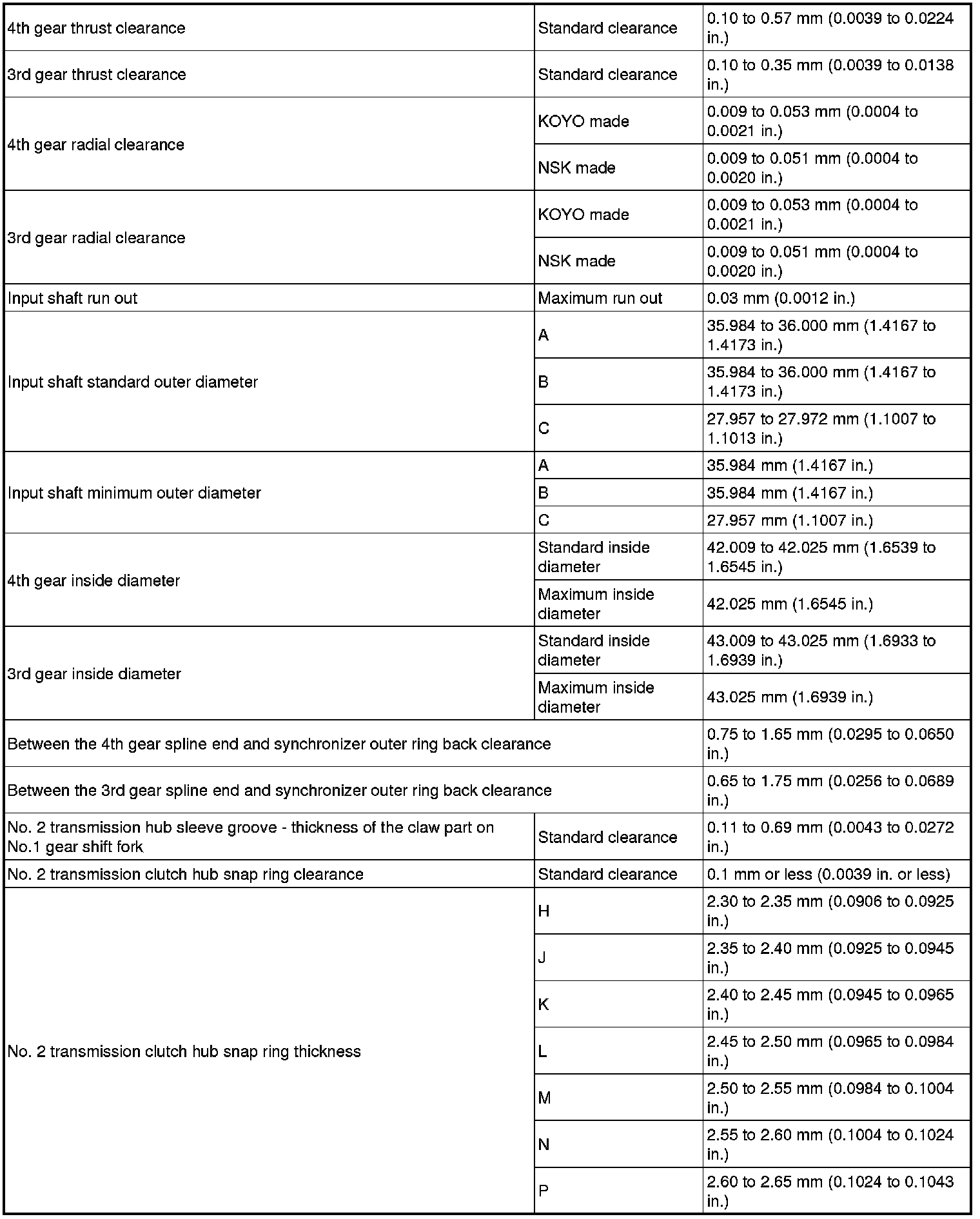

INPUT SHAFT ASSEMBLY:

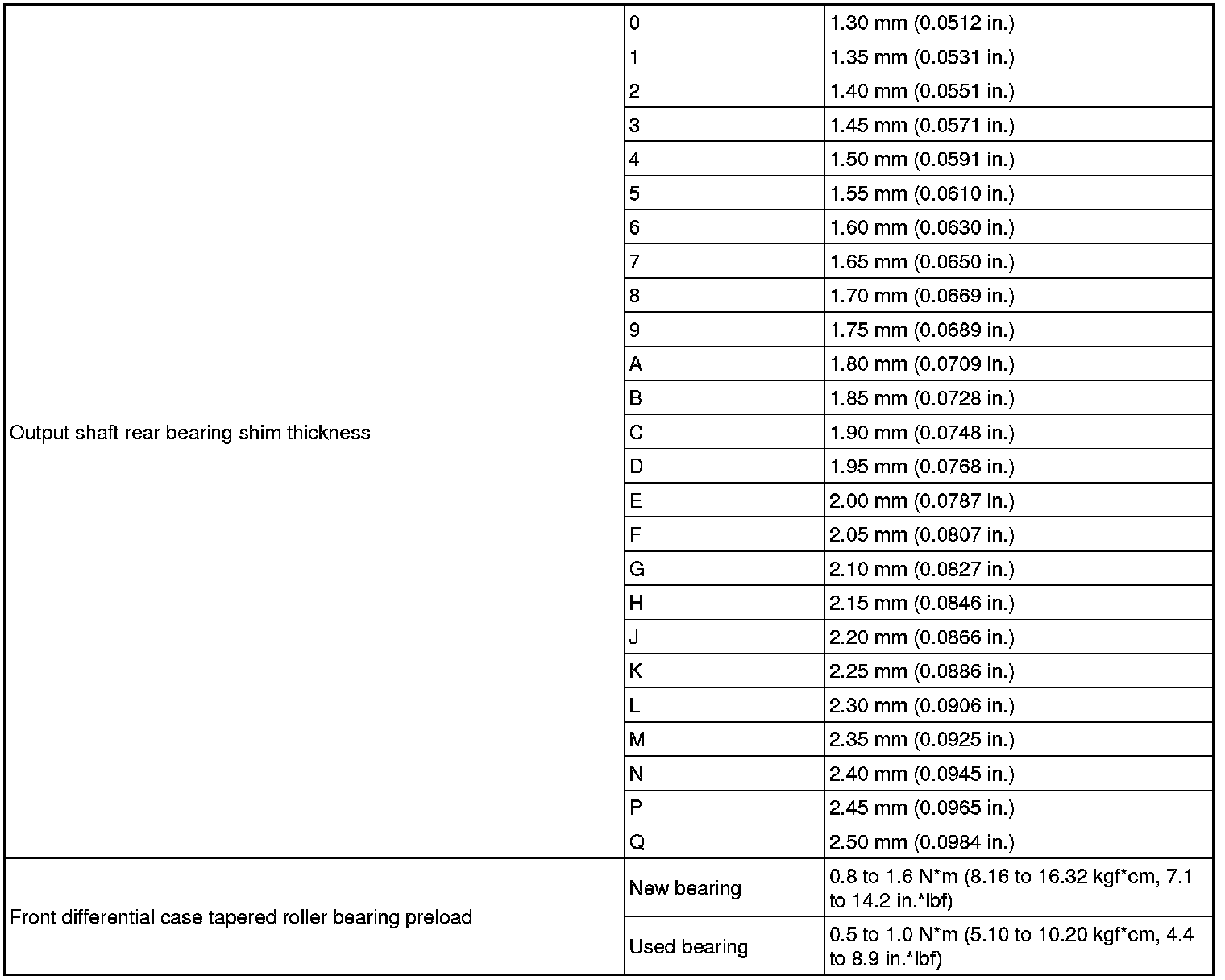

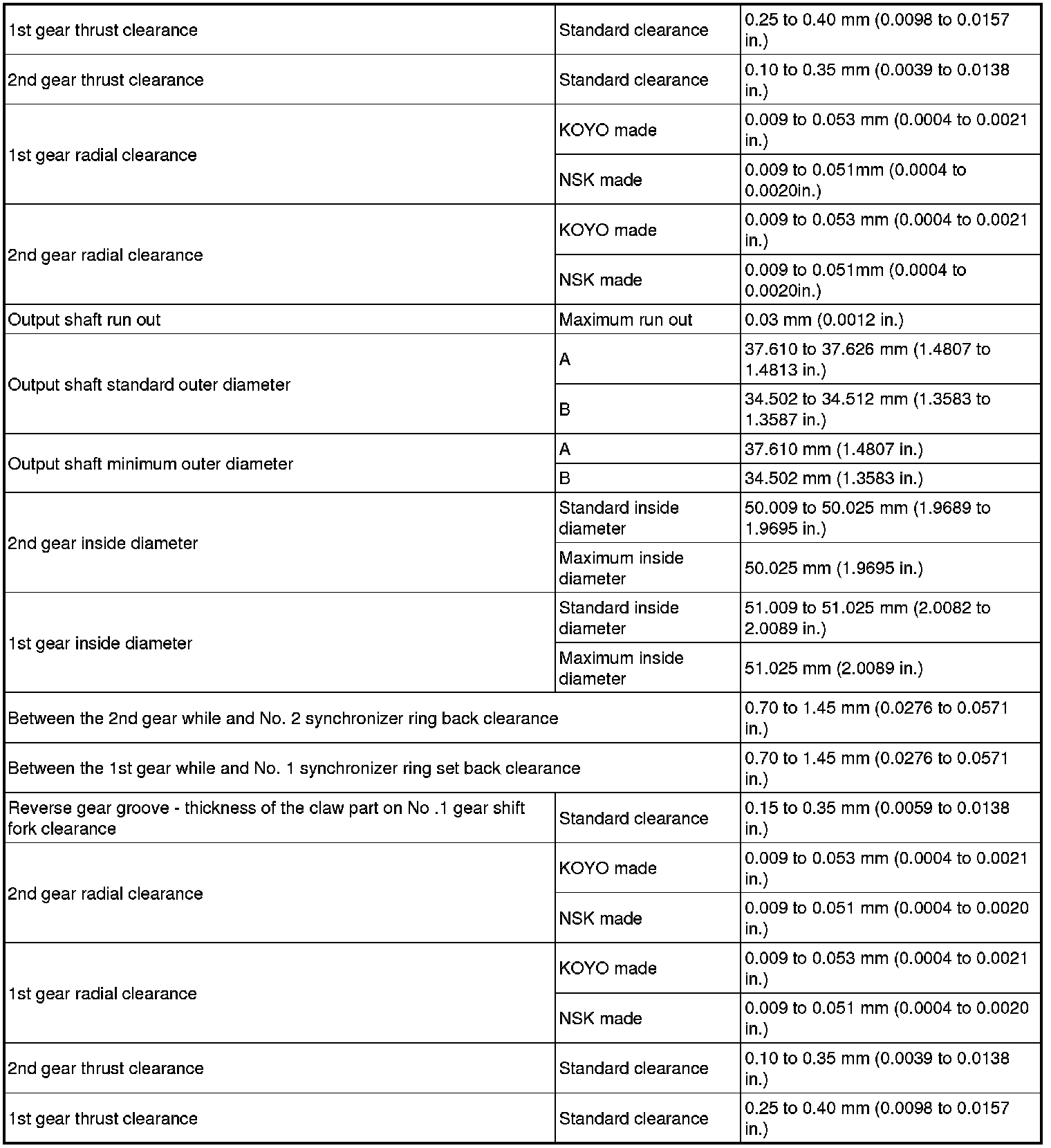

OUTPUT SHAFT ASSEMBLY:

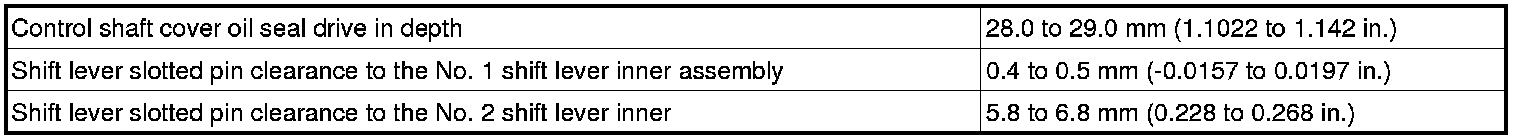

SHIFT AND SELECT LEVER SHAFT ASSEMBLY:

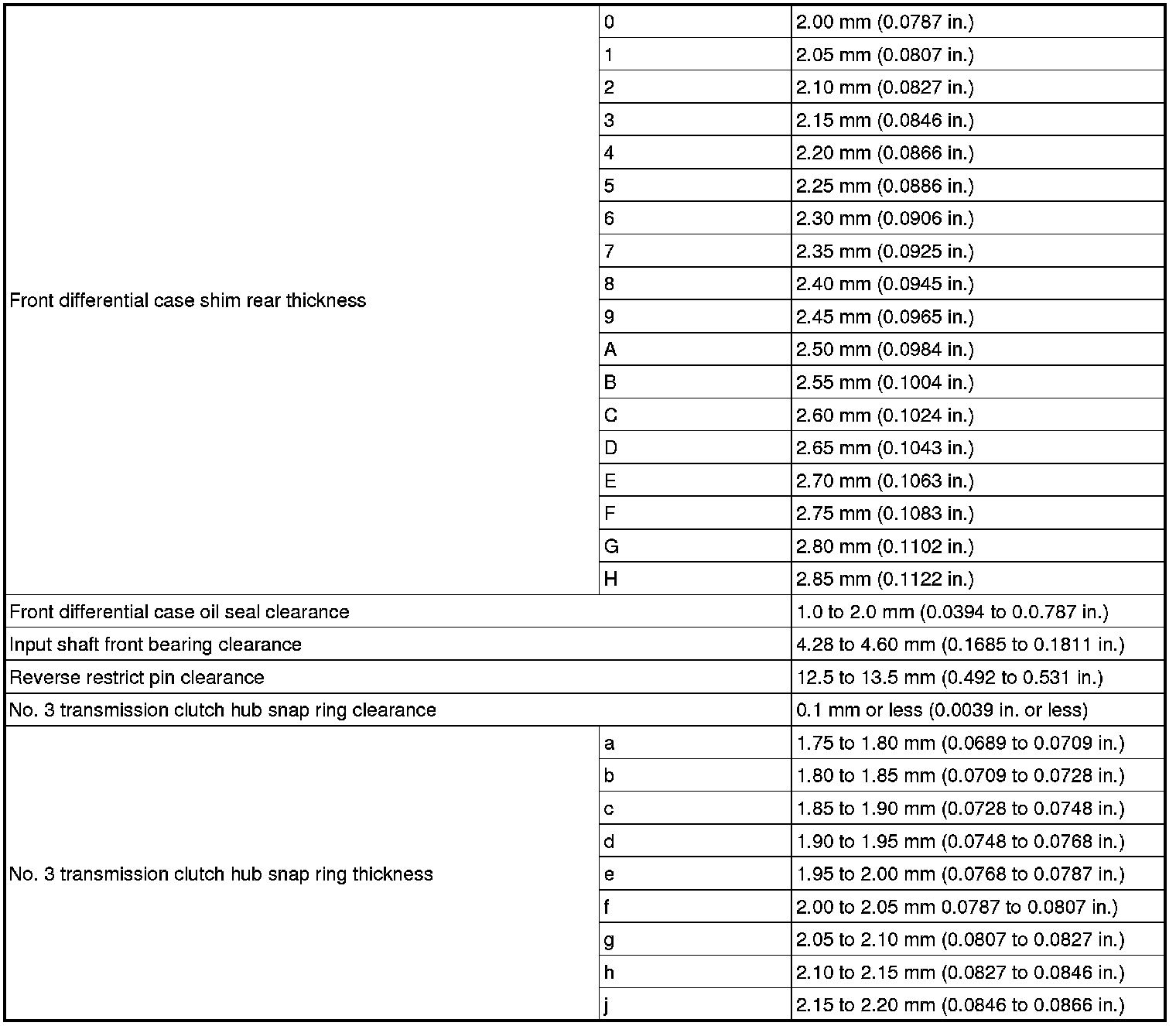

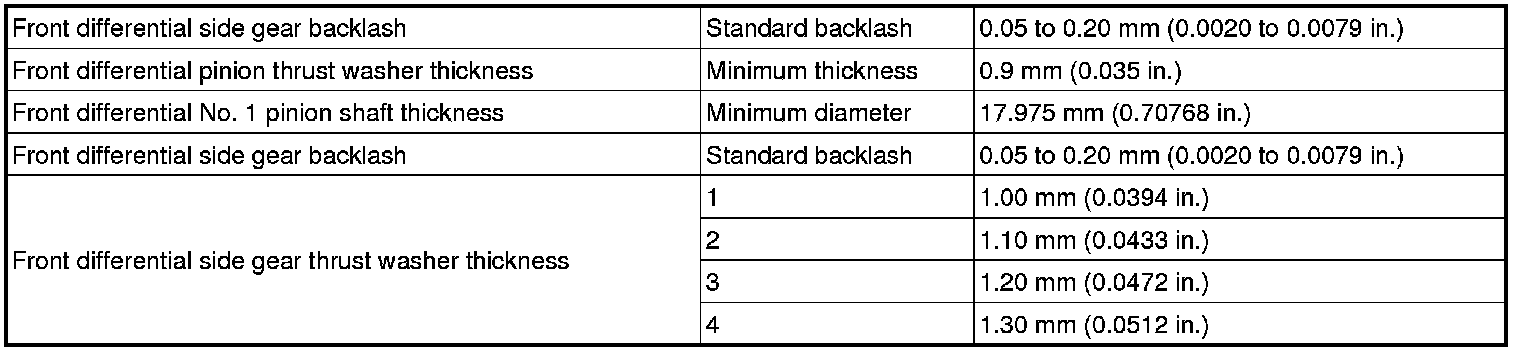

DIFFERENTIAL CASE ASSEMBLY:
