Installation















DOOR LOCK: DOOR CONTROL TRANSMITTER (w/o Smart Key System):

COMPONENTS






DOOR LOCK: DOOR CONTROL TRANSMITTER (w/o Smart Key System):

INSTALLATION

1. INSTALL TRANSMITTER BATTERY
(a) Install the transmitter battery.

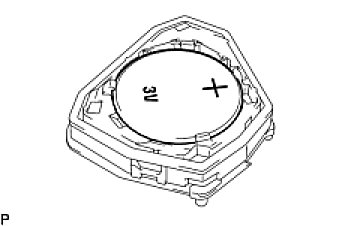

(1) Install a battery (lithium battery: CR2016) with the positive (+) side up, as shown in the illustration.

- Be sure that the positive and negative sides of the transmitter battery are positioned correctly.
- Be careful not to bend the terminals of the transmitter battery during installation.
- Keep the interior of the transmitter case free of dust, water, and oil.

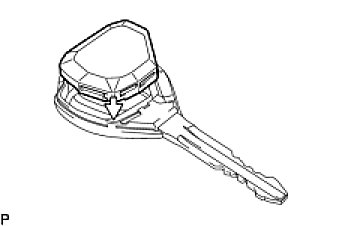

(b) Install the door control transmitter module into the transmitter housing case.





(c) Install the transmitter housing cover securely onto the transmitter housing case.

HINT: After the installation, press one of the transmitter switches and check that the LED illuminates.
