Camry V6-3.5L (2GR-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Module HVAC
Control Module HVAC

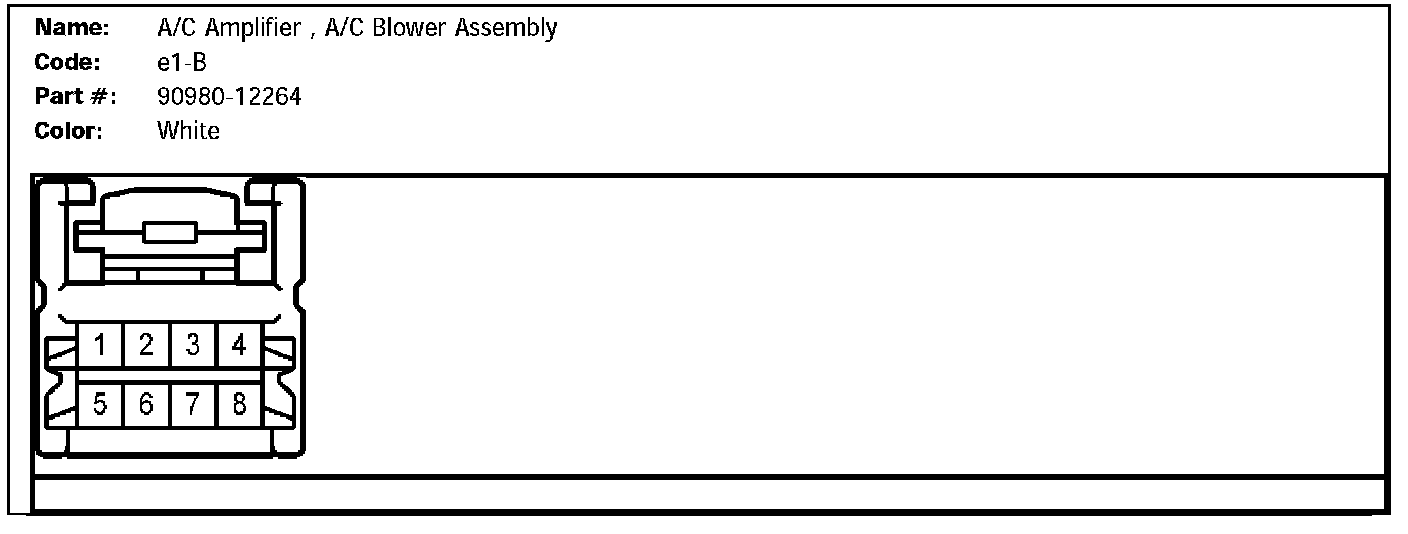

e1-B (A/C Amplifier, A/C Blower Assembly):

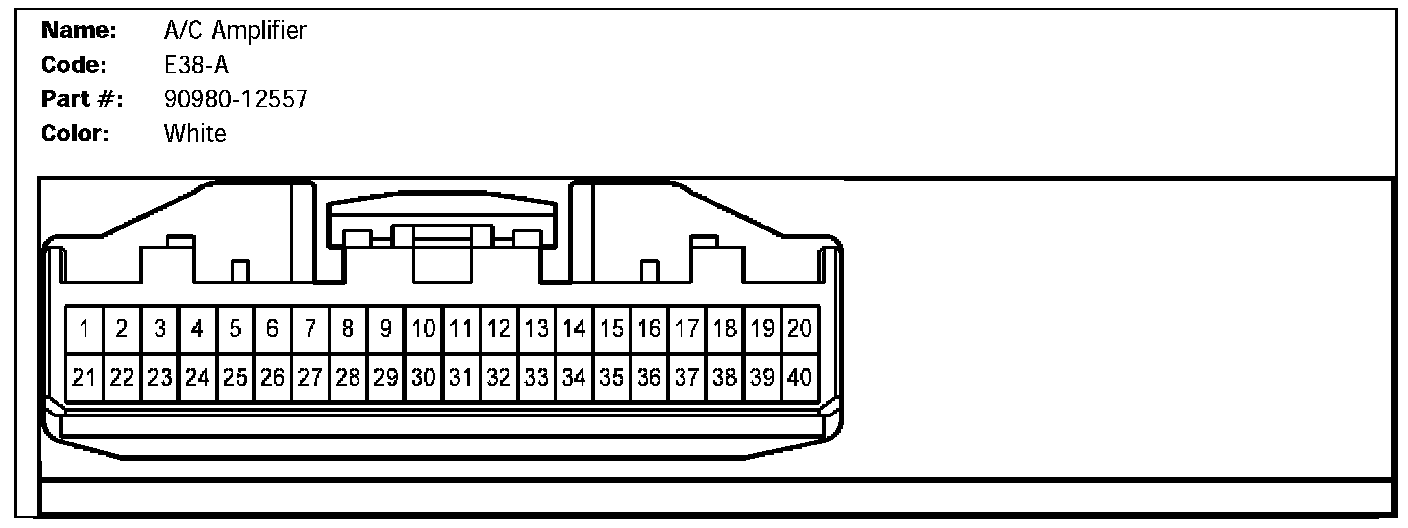

E38-A (A/C Amplifier):
