Reassembly








AIR CONDITIONING: AIR CONDITIONING PANEL:

REASSEMBLY

1. INSTALL CONTROL KNOB SUB-ASSEMBLY (for Automatic Air Conditioning System)

NOTE: When disassembling the air conditioning control assembly, eliminate static electricity by touching the vehicle body to prevent the components from being damaged.

(a) Driver Side:
(1) Engage the dual push switch with dial on the switch control sub-assembly.

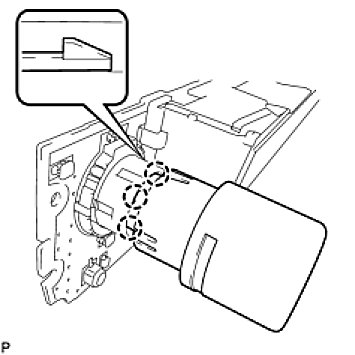

(2) Engage the 3 claws.

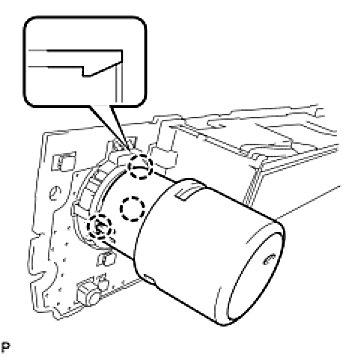

(3) Engage the 3 claws and install the control knob sub-assembly.
(b) Passenger Side:

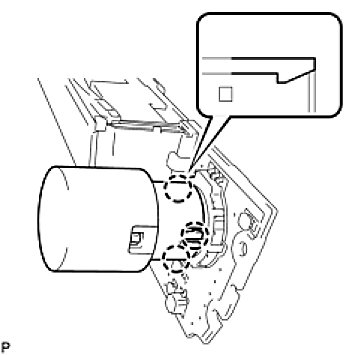

(1) Engage the 3 claws and install the control knob sub-assembly.

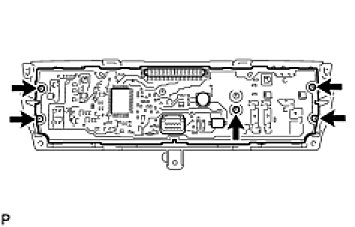

(c) Install the switch control sub-assembly with the 5 screws.

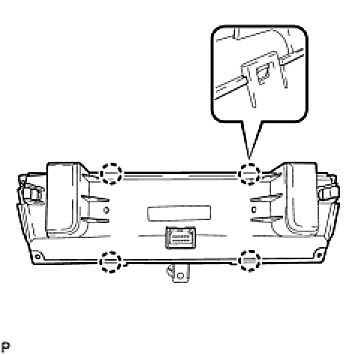

(d) Engage the 4 claws and install the control panel case.
2. INSTALL AIR CONDITIONING PANEL SUB-ASSEMBLY (for Automatic Air Conditioning System)

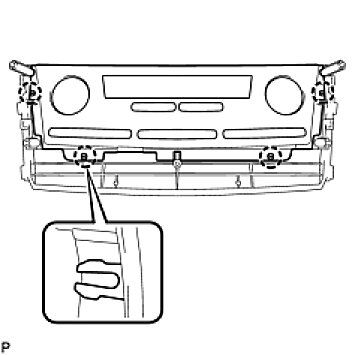

(a) Engage the 4 claws and install the ornament.





(b) Engage the 4 claws.
(c) Install the air conditioning panel sub-assembly with the 5 screws.
