Removal








AIR CONDITIONING: AIR CONDITIONING PANEL:

REMOVAL

1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transaxle) (Removal)

2. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle) (Removal)

3. REMOVE NO. 1 INSTRUMENT CLUSTER FINISH PANEL GARNISH (Removal)

4. REMOVE NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH (Removal)

5. REMOVE FLOOR SHIFT POSITION INDICATOR HOUSING SUB-ASSEMBLY (for Automatic Transaxle) (Removal)

6. REMOVE UPPER CONSOLE PANEL (for Manual Transaxle) (Removal)

7. REMOVE UPPER CONSOLE REAR PANEL SUB-ASSEMBLY (for Automatic Transaxle) (Removal)

8. REMOVE UPPER CONSOLE REAR PANEL SUB-ASSEMBLY (for Manual Transaxle) (Removal)

9. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY (for TMC Made) (Removal)

10. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY (for TMMK Made) (Removal)

11. REMOVE INSTRUMENT PANEL NO. 2 REGISTER ASSEMBLY (Removal)

12. REMOVE RADIO RECEIVER WITH HEATER CONTROL ASSEMBLY (for Manual Air Conditioning System) (Removal)

13. REMOVE NAVIGATION RECEIVER WITH HEATER CONTROL PANEL (for Automatic Air Conditioning System) (Removal)

14. REMOVE RADIO NO. 1 BRACKET (for Manual Air Conditioning System) (Removal)

15. REMOVE RADIO NO. 1 BRACKET (for Automatic Air Conditioning System) (Removal)

16. REMOVE RADIO NO. 2 BRACKET (for Manual Air Conditioning System) (Removal)

17. REMOVE RADIO NO. 2 BRACKET (for Automatic Air Conditioning System) (Removal)

18. REMOVE AIR CONDITIONING CONTROL ASSEMBLY (for Manual Air Conditioning System)

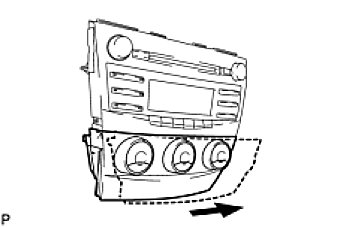

(a) Remove the air conditioning control assembly as shown in the illustration.
19. REMOVE AIR CONDITIONING CONTROL ASSEMBLY (for Automatic Air Conditioning System)

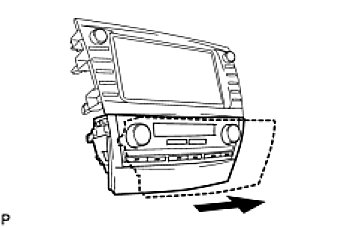

(a) Remove the air conditioning control assembly as shown in the illustration.
