2GR-FE ENGINE CONTROL SYSTEM: ENGINE COOLANT TEMPERATURE SENSOR:

REMOVAL

1. REMOVE ENGINE UNDER COVER LH
2. REMOVE ENGINE UNDER COVER RH
3. DRAIN ENGINE COOLANT (Testing and Inspection)

4. REMOVE V-BANK COVER SUB-ASSEMBLY (Removal)

5. REMOVE AIR CLEANER INLET ASSEMBLY (Removal)

6. REMOVE AIR CLEANER CAP SUB-ASSEMBLY (Removal)

7. REMOVE AIR CLEANER CASE SUB-ASSEMBLY (Removal)

8. REMOVE NO. 1 AIR CLEANER INLET (Removal)

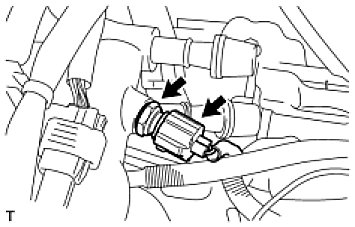

9. REMOVE ENGINE COOLANT TEMPERATURE SENSOR





(a) Remove the engine coolant temperature sensor connector.
(b) Remove the engine coolant temperature sensor.
