Computers and Control Systems: Description and Operation








2GR-FE ENGINE CONTROL SYSTEM: SFI SYSTEM:

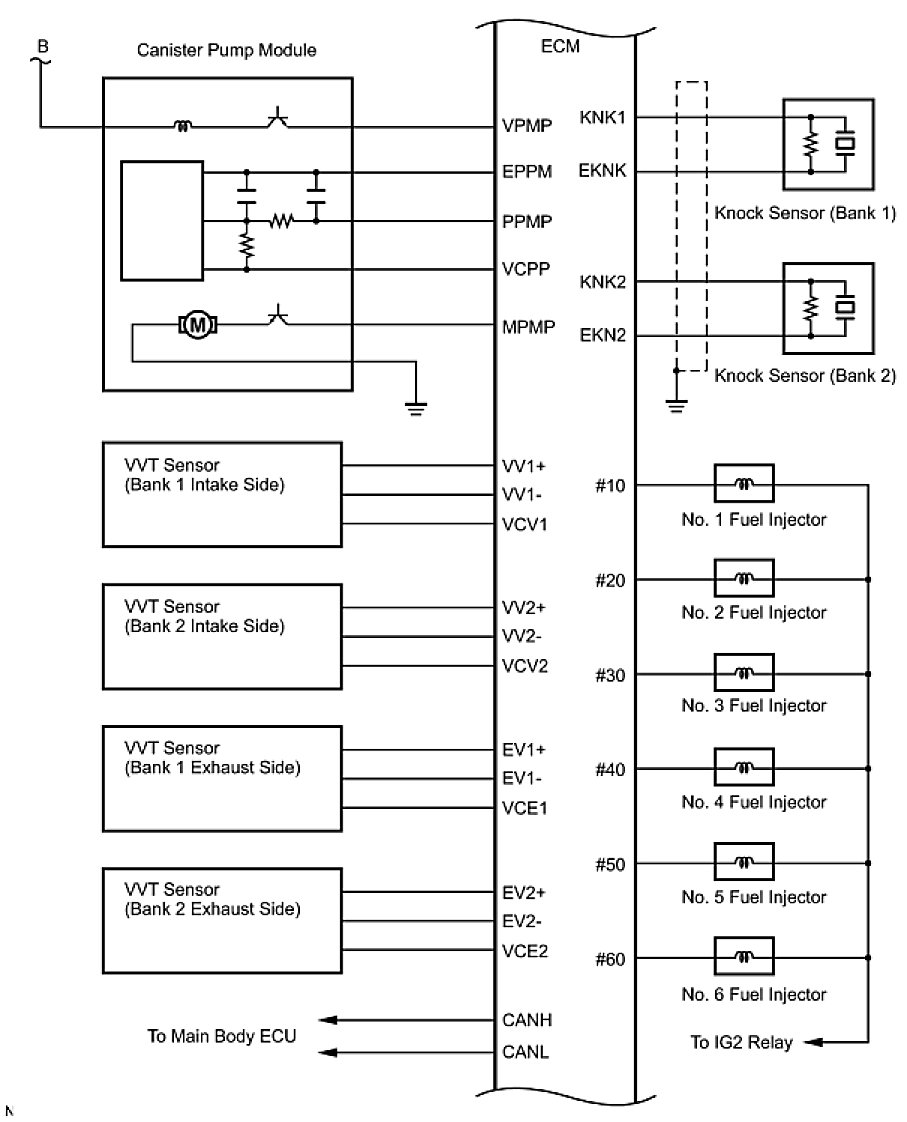

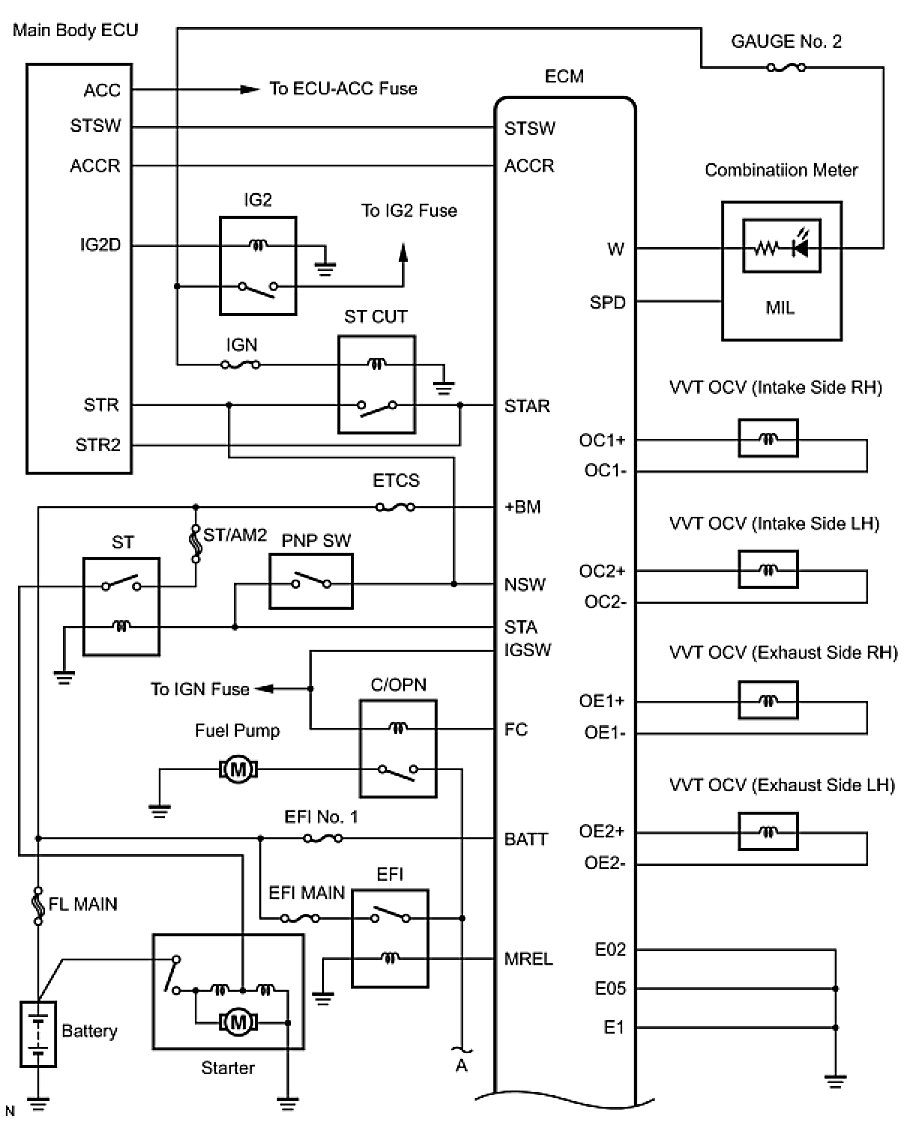

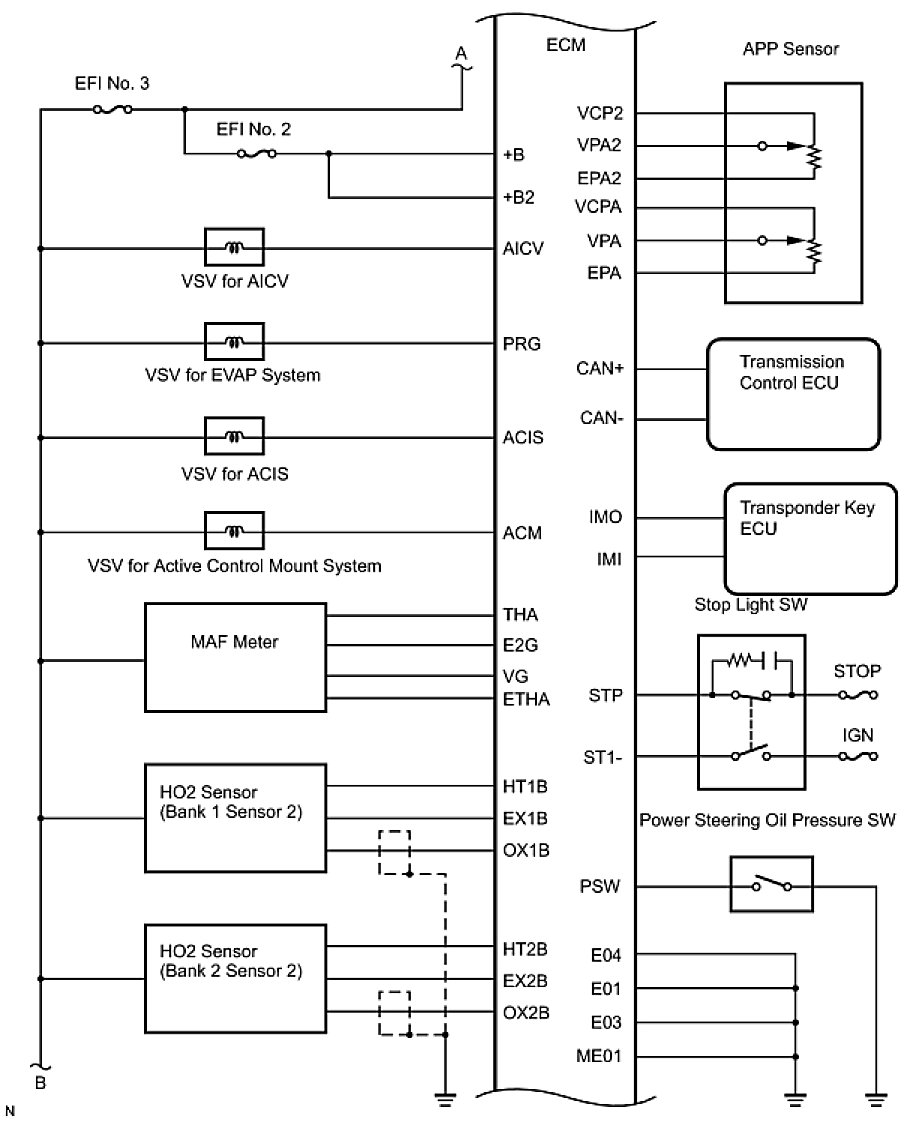

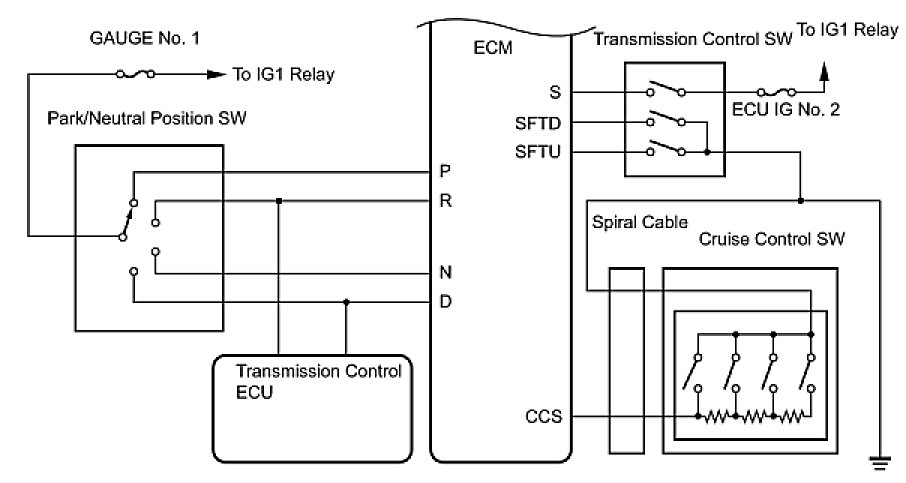

SYSTEM DIAGRAM

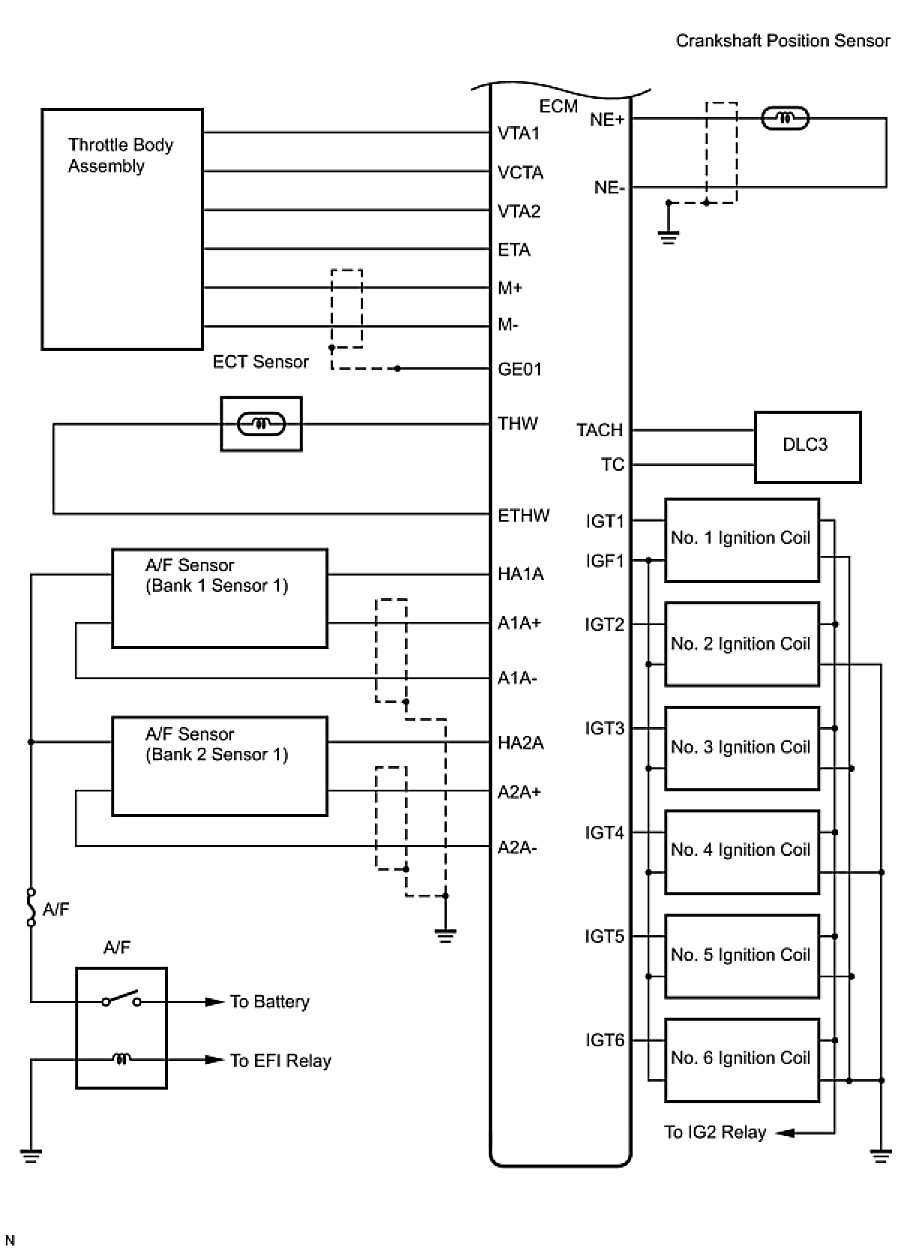

1. Without Smart Key System:

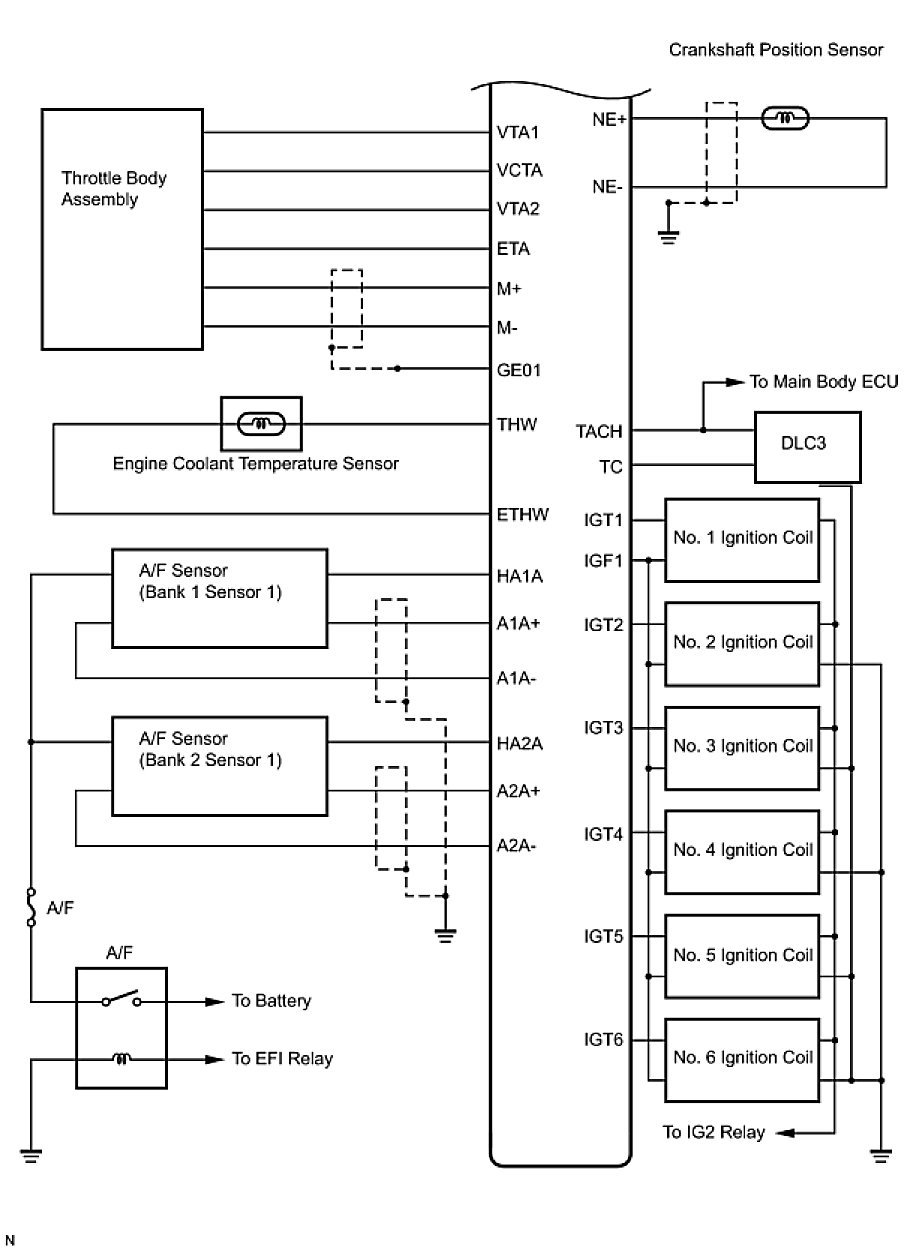

2. With Smart Key System:
