Removal








2GR-FE ENGINE CONTROL SYSTEM: KNOCK SENSOR:

REMOVAL

1. DISCHARGE FUEL SYSTEM PRESSURE (Removal)

2. REMOVE ENGINE UNDER COVER LH
3. REMOVE ENGINE UNDER COVER RH
4. DRAIN ENGINE COOLANT (Testing and Inspection)

5. REMOVE WINDSHIELD WIPER ARM AND BLADE ASSEMBLY LH (Removal)

6. REMOVE WINDSHIELD WIPER ARM AND BLADE ASSEMBLY RH (Removal)

7. REMOVE FRONT FENDER TO COWL SIDE SEAL LH (Removal)

8. REMOVE FRONT FENDER TO COWL SIDE SEAL RH (Removal)

9. REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY (Removal)

10. REMOVE WINDSHIELD WIPER MOTOR AND LINK (Removal)

11. REMOVE COWL TOP PANEL OUTER SUB-ASSEMBLY (Removal)

12. REMOVE COOL AIR INTAKE DUCT SEAL (Removal)

13. REMOVE V-BANK COVER SUB-ASSEMBLY (Removal)

14. REMOVE AIR CLEANER INLET ASSEMBLY (Removal)

15. REMOVE AIR CLEANER CAP SUB-ASSEMBLY (Removal)

16. REMOVE AIR CLEANER CASE SUB-ASSEMBLY (Removal)

17. REMOVE NO. 1 AIR CLEANER INLET (Removal)

18. REMOVE INTAKE AIR SURGE TANK (Removal)

19. SEPARATE FUEL TUBE SUB-ASSEMBLY (Removal)

20. REMOVE INTAKE MANIFOLD (Removal)

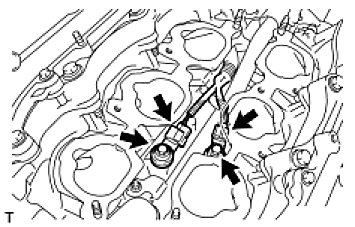

21. REMOVE KNOCK CONTROL SENSOR





(a) Disconnect the 2 knock control sensor connectors.
(b) Remove the 2 bolts and 2 knock control sensors.
