Inspection
U660E AUTOMATIC TRANSAXLE: PARK / NEUTRAL POSITION SWITCH:INSPECTION 1.
INSPECT PARK/NEUTRAL POSITION SWITCH ASSEMBLY
(a)

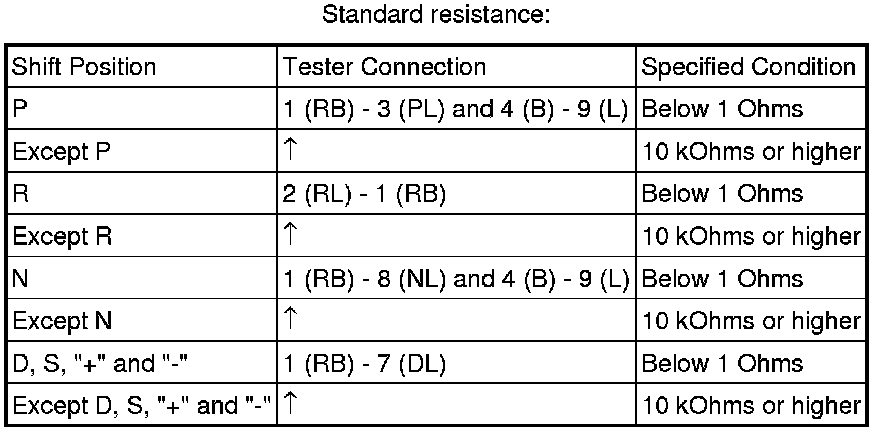

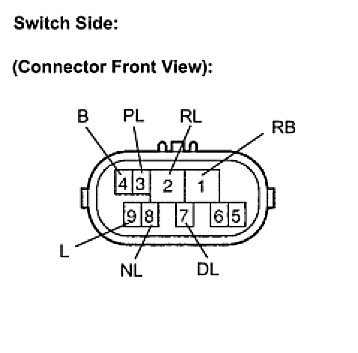

Measure the resistance according to the value(s) in the table below when the shift lever is moved to each position.
If operation cannot be done as specified, replace the park/neutral position switch.
