Installation

2GR-FE ENGINE CONTROL SYSTEM: VVT SENSOR:

INSTALLATION

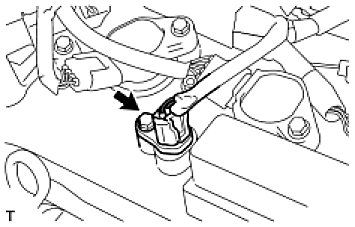

1. INSTALL VVT SENSOR (for Bank 2 Exhaust Side)





(a) Install the VVT sensor with the bolt.
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)
(b) Connect the VVT sensor connector.

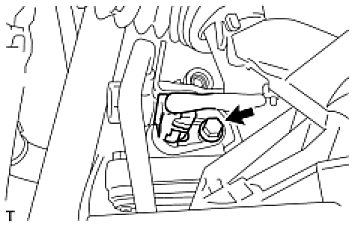

2. INSTALL VVT SENSOR (for Bank 2 Intake Side)





(a) Install the VVT sensor with the bolt.
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)
(b) Connect the VVT sensor connector.
3. INSTALL VVT SENSOR (for Bank 1 Exhaust Side)





(a) Install the VVT sensor with the bolt.
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)
(b) Connect the VVT sensor connector.
4. INSTALL VVT SENSOR (for Bank 1 Intake Side)





(a) Install the VVT sensor with the bolt.
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)
(b) Connect the VVT sensor connector.
5. INSTALL INTAKE AIR SURGE TANK ASSEMBLY (Installation)

6. INSTALL NO. 1 AIR CLEANER INLET (Installation)

7. INSTALL AIR CLEANER CASE SUB-ASSEMBLY (Installation)

8. INSTALL AIR CLEANER CAP SUB-ASSEMBLY (Installation)

9. INSTALL AIR CLEANER INLET ASSEMBLY (Installation)

10. INSTALL V-BANK COVER SUB-ASSEMBLY (Installation)

11. INSTALL COOL AIR INTAKE DUCT SEAL (Installation)

12. INSTALL COWL TOP PANEL OUTER SUB-ASSEMBLY (Installation)

13. INSTALL WINDSHIELD WIPER MOTOR AND LINK (Installation)

14. INSTALL COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY (Installation)

15. INSTALL FRONT FENDER TO COWL SIDE SEAL RH (Installation)

16. INSTALL FRONT FENDER TO COWL SIDE SEAL LH (Installation)

17. INSTALL WINDSHIELD WIPER ARM AND BLADE ASSEMBLY LH (Installation)

18. INSTALL WINDSHIELD WIPER ARM AND BLADE ASSEMBLY RH (Installation)

19. ADD ENGINE COOLANT (Testing and Inspection)

20. CHECK FOR ENGINE COOLANT LEAKS (Testing and Inspection)

21. INSTALL ENGINE UNDER COVER RH
22. INSTALL ENGINE UNDER COVER LH
