Installation

AIR CONDITIONING: AIR CONDITIONING AMPLIFIER:

INSTALLATION

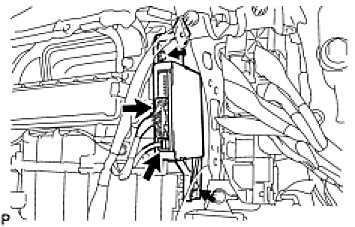

1. INSTALL AIR CONDITIONING AMPLIFIER ASSEMBLY

(a) Install the air conditioning amplifier assembly with the 2 bolts.
(b) Connect the connectors.
2. INSTALL LOWER INSTRUMENT PANEL SUB-ASSEMBLY (Installation)

3. INSTALL INSTRUMENT PANEL NO. 2 UNDER COVER SUB-ASSEMBLY (Installation)

4. INSTALL COWL SIDE TRIM SUB-ASSEMBLY RH (Installation)

5. INSTALL FRONT DOOR SCUFF PLATE RH (Installation)
