Oil Pan, Engine

OIL PAN SUB-ASSEMBLY

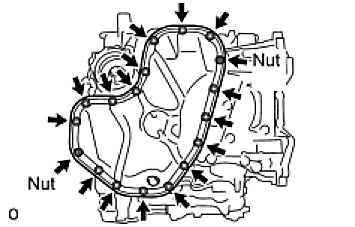

Install the oil pan with the 16 bolts and 2 nuts.
Torque 10 Nm (102 kgf-cm, 7 ft-lbf)
Torque 21 Nm (214 kgf-cm, 15 ft-lbf)

- Remove any oil from the contact surface.
- Install the oil pan within 3 minutes after applying seal packing.
- Do not start the engine for at least 2 hours after installing.

NO. 2 OIL PAN SUB-ASSEMBLY





Install the oil pan with the 16 bolts and 2 nuts.
Torque 10 Nm (102 kgf-cm, 7 ft-lbf)

- Remove any oil from the contact surface.
- Install the No. 2 oil pan within 3 minutes after applying seal packing.
- Do not start the engine for at least 2 hours after installing.
