Installation

U660E AUTOMATIC TRANSAXLE: TCM:

INSTALLATION

1. INSTALL TCM
(a) Install the TCM to the transaxle.

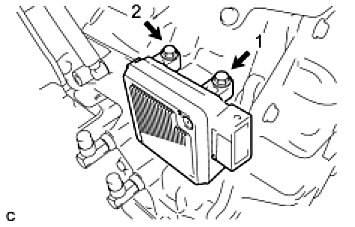

(b) Install and tighten the 2 bolts in the order shown in the illustration.
Torque: 11 Nm (112 kgf-cm, 8 ft-lbf)

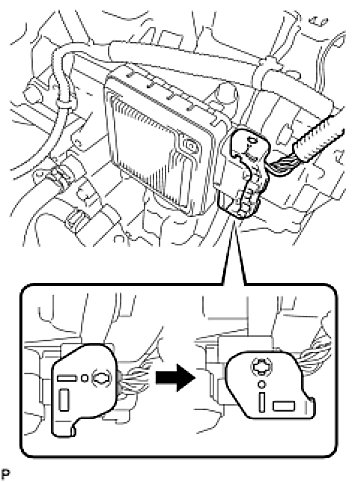

(c) Connect the connector to the TCM.
(d) Turn the lock lever and secure the connector with the lock lever.
2. INSTALL INTAKE AIR RESONATOR SUB-ASSEMBLY (Installation)

3. INSTALL NO. 1 AIR CLEANER INLET (Installation)

4. INSTALL AIR CLEANER INLET ASSEMBLY (Installation)

5. INSTALL BATTERY (Installation)

6. INSTALL COOL AIR INTAKE DUCT SEAL (Installation)

7. PERFORM TCM REGISTRATION

HINT: (Registration)
