Removal

U660E AUTOMATIC TRANSAXLE: TCM:

REMOVAL

NOTE: When the TCM is replaced, the existing transaxle compensation codes must be input into the new TCM (Registration).

1. REMOVE COOL AIR INTAKE DUCT SEAL (Removal)

2. REMOVE BATTERY (Removal)

3. REMOVE AIR CLEANER INLET ASSEMBLY (Removal)

4. REMOVE NO. 1 AIR CLEANER INLET (Removal)

5. REMOVE INTAKE AIR RESONATOR SUB-ASSEMBLY (Removal)

6. REMOVE TCM

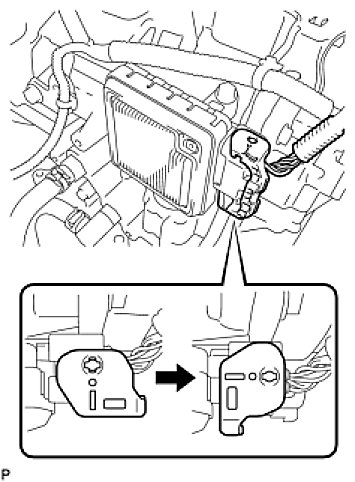

(a) Turn the lock lever and disconnect the connector from the TCM.

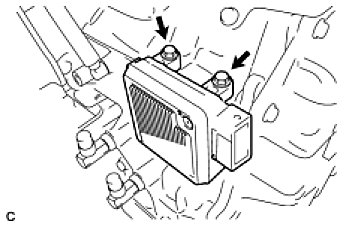

(b) Remove the 2 bolts and TCM from the transaxle.
