Installation

INTERIOR: REAR SUNSHADE ASSEMBLY:

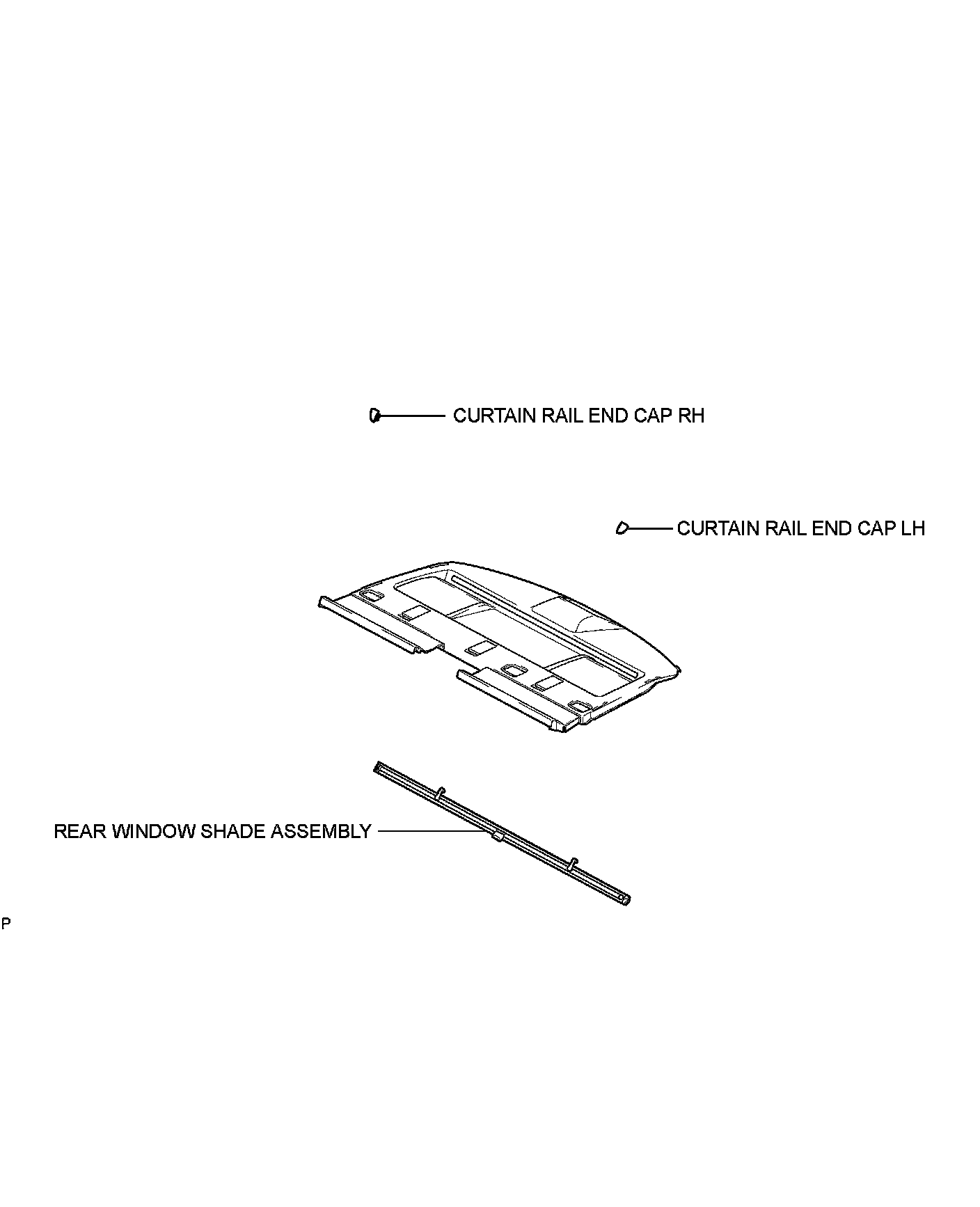

COMPONENTS























INTERIOR: REAR SUNSHADE ASSEMBLY:

INSTALLATION

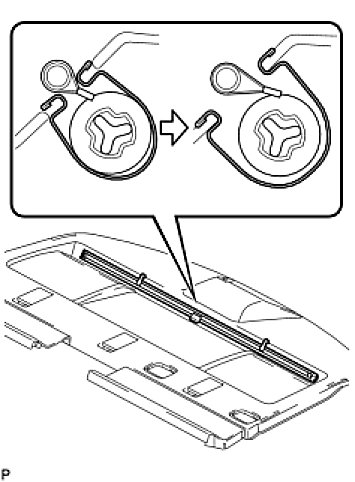

1. INSTALL REAR WINDOW SHADE ASSEMBLY





(a) Install the rear window shade assembly as shown in the illustration.

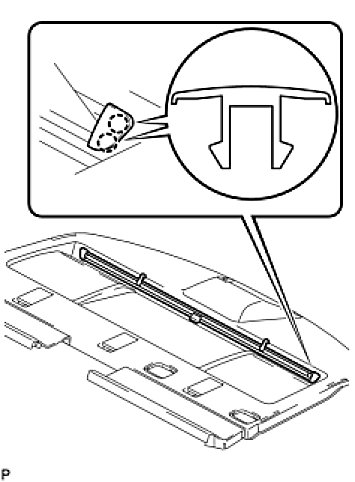

2. INSTALL CURTAIN RAIL END CAP LH





(a) Engage the 2 claws and install the curtain rail end cap LH.
3. INSTALL CURTAIN RAIL END CAP RH

HINT: Use the same procedures for the RH side and the LH side.

4. INSTALL PACKAGE TRAY TRIM PANEL ASSEMBLY (Installation)

5. INSTALL REAR SEAT SHOULDER BELT HOLE COVER (Installation)

6. INSTALL REAR SEAT SHOULDER BELT COVER (Installation)

7. CONNECT REAR SEAT OUTER BELT ASSEMBLY (for LH Side) (Installation)

8. CONNECT REAR SEAT OUTER BELT ASSEMBLY (for RH Side) (Installation)

9. INSTALL ROOF SIDE INNER GARNISH LH (Installation)

10. INSTALL ROOF SIDE INNER GARNISH RH (Installation)

11. CONNECT REAR SEAT INNER WITH CENTER BELT ASSEMBLY LH (for TMC Made) (Installation)

12. CONNECT REAR SEAT INNER WITH CENTER BELT ASSEMBLY LH (for TMMK Made) (Installation)

13. INSTALL CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY LH (Installation)

14. INSTALL RECLINING REMOTE CONTROL LEVER SUB-ASSEMBLY LH (Reassembly)

15. INSTALL RECLINING REMOTE CONTROL LEVER SUB-ASSEMBLY RH

HINT: Use the same procedures for the RH side and the LH side.

16. CONNECT REAR DOOR OPENING TRIM WEATHERSTRIP LH (Installation)

17. INSTALL REAR DOOR SCUFF PLATE LH (Installation)

18. CONNECT REAR DOOR OPENING TRIM WEATHERSTRIP RH (Installation)

19. INSTALL REAR DOOR SCUFF PLATE RH (Installation)

20. INSTALL CENTER SEAT BACK ASSEMBLY (Installation)

21. INSTALL SEPARATE TYPE REAR SEAT BACK ASSEMBLY LH (Installation)

22. INSTALL SEPARATE TYPE REAR SEAT BACK ASSEMBLY RH (Installation)

23. INSTALL REAR SEAT BACK COVER
24. INSTALL REAR CENTER SEAT HEADREST ASSEMBLY
25. INSTALL REAR SEAT HEADREST ASSEMBLY
26. INSTALL REAR SEAT CUSHION ASSEMBLY (Installation)
