Wheel Speed Sensor

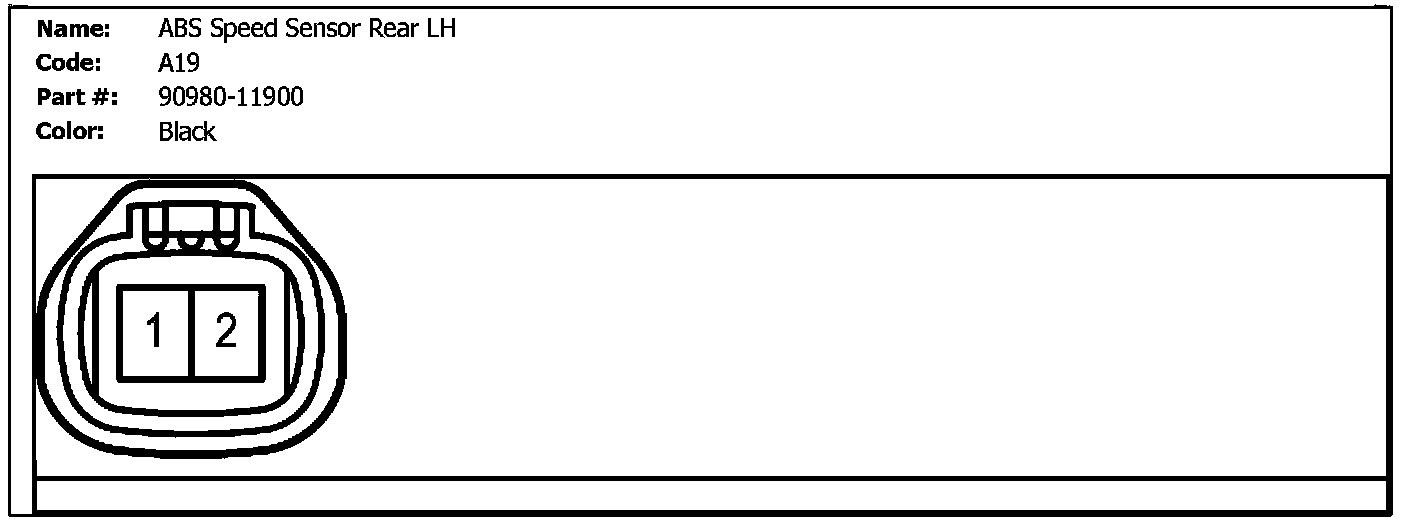

A19 (ABS Speed Sensor Rear LH):

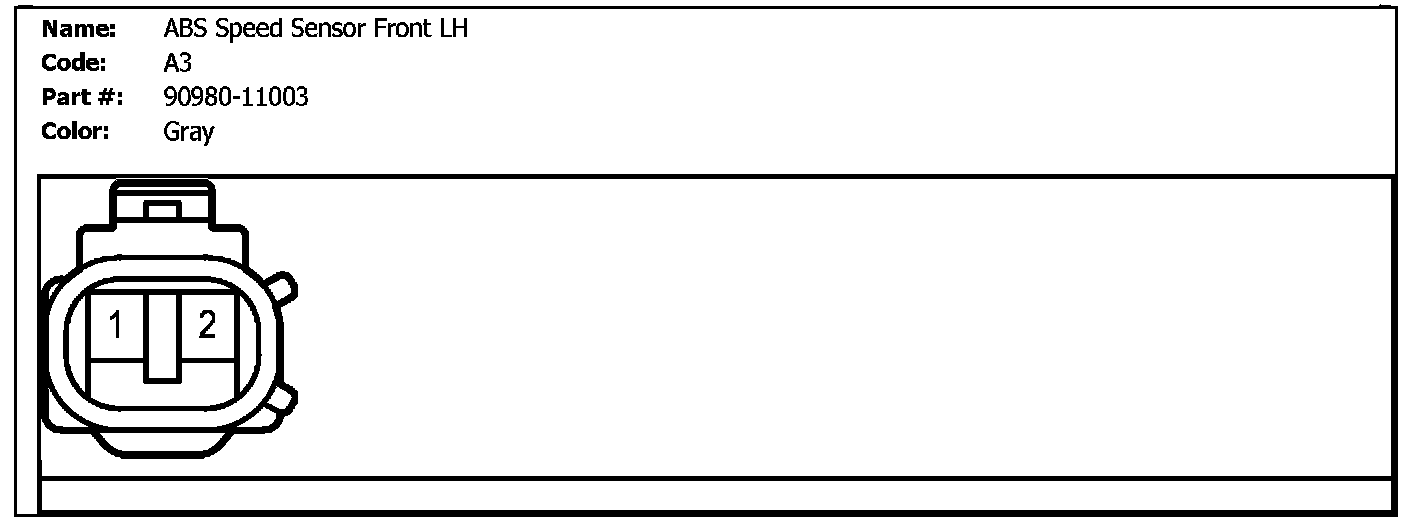

A3 (ABS Speed Sensor Front LH):

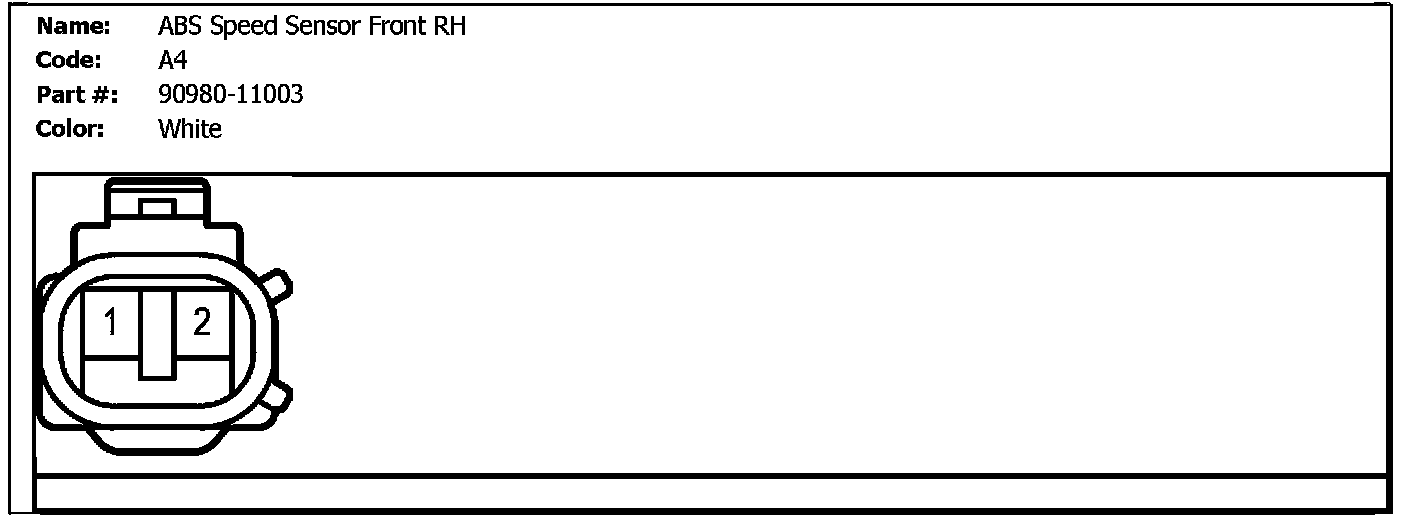

A4 (ABS Speed Sensor Front RH):



BC1 (Skid Control Sensor Wire LH And Floor Wire (Quarter Wheel House LH)):



BD1 (Skid Control Sensor Wire RH And Floor Wire (Quarter Wheel House RH)):
