Disassembly

AIR CONDITIONING: COMPRESSOR AND MAGNETIC CLUTCH: DISASSEMBLY

DISASSEMBLY

1. REMOVE MAGNETIC CLUTCH ASSEMBLY
(a) Place the compressor and magnetic clutch in vise.

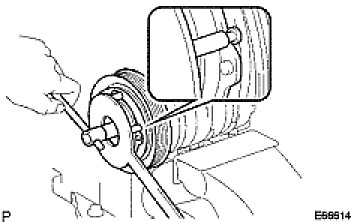

(b) Using SST remove the bolt.
SST: 95047-10310
(c) Remove the magnetic clutch hub and magnetic clutch washers.

HINT: There is no set number of magnetic clutch washers since they are used for adjustment.

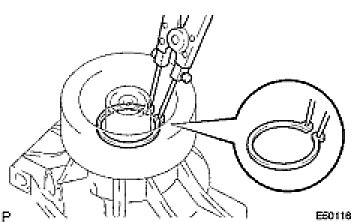

(d) Using a snap ring expander, remove the snap ring and magnetic clutch rotor.
(e) Remove the screw, disconnect the connector.





(f) Using a snap ring expander, remove the snap ring and magnetic clutch stator.
